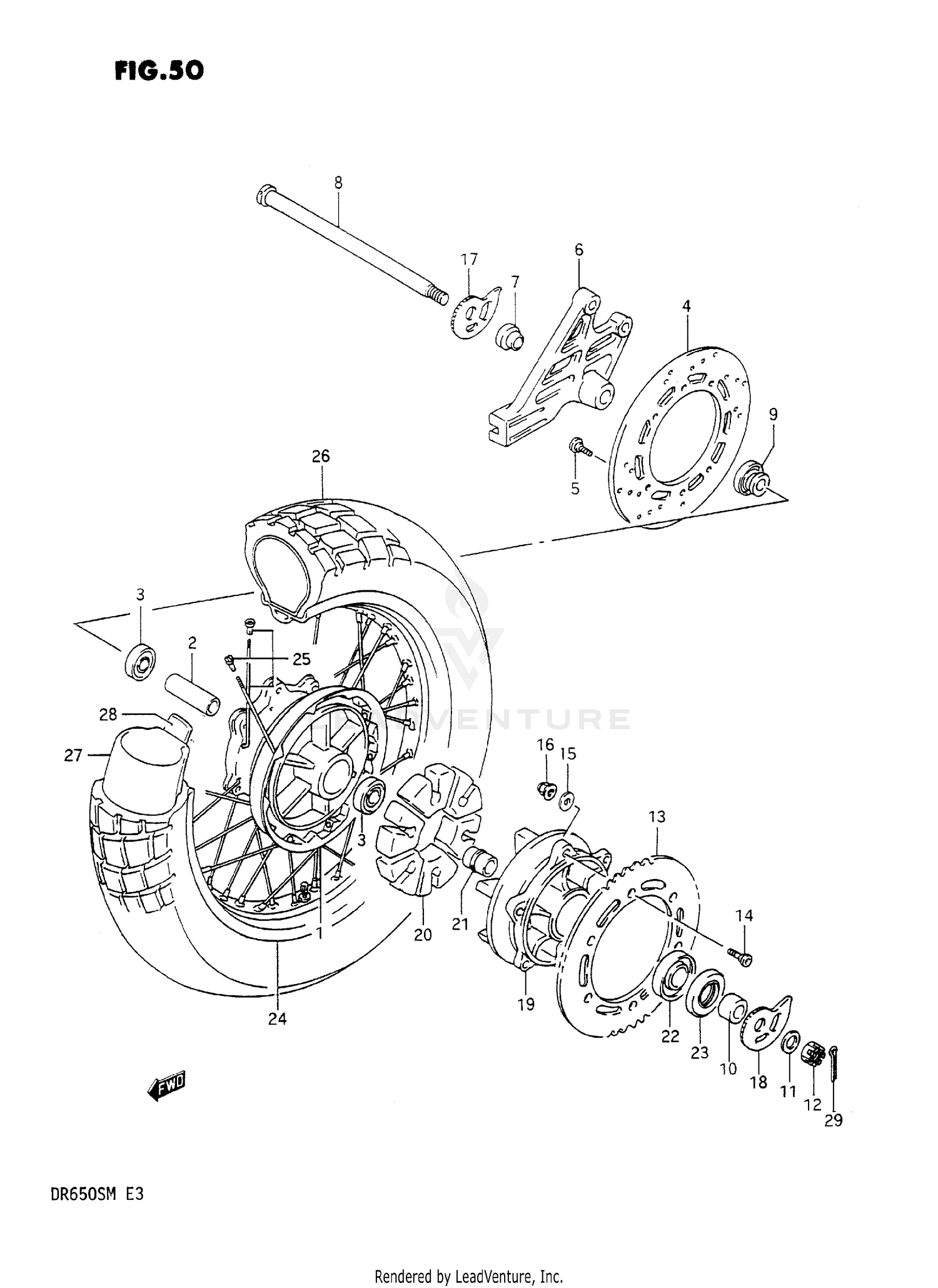

1990 Suzuki DR650SL REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR WHEEL
64110-44B10
|
$205.66 | ||
|
Unavailable |
|||
|
#2
SPACER
09180-17071
|
$14.79 | ||
|
Unavailable |
|||
|
#3
BEARING
08124-63037
|
$24.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
DISC, REAR BRAKE
69211-44B00
|
$262.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
59421-03A01
Superseded by 09106-08155
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BRACKET, REAR CALIPER
69721-44B00
|
$101.18 | ||
|
Unavailable |
|||
|
#7
SPACER, CALIPER BRACKET
09180-17096
|
$11.91 | ||
|
Unavailable |
|||
|
#8
AXLE, REAR
64711-14A20
Superseded by 64711-14A21
|
$43.87 | ||
|
Unavailable |
|||
|
#9
SPACER, RH
64750-38211
|
$9.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, LH
09180-17090
|
$14.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER (17X30X3.2)
09160-17013
Superseded by 09160-17050
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT, HUB
08314-41168
Superseded by 08314-4016A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPROCKET, REAR (NT:42)
64511-14A00
Superseded by 64511-14A01
|
$107.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
BOLT
09120-08010
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER
08322-11088
Superseded by 08322-01087
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NUT
08319-31087
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
ADJUSTER, CHAIN, RH
61411-12D00
Superseded by 61411-31D00
|
$16.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
ADJUSTER, CHAIN, LH
61421-12D00
Superseded by 61421-31D00
|
$16.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
DRUM, SPROCKET
64611-44B10
|
$216.20 | ||
|
Unavailable |
|||
|
#20
ABSORBER, REAR HUB SHOCK
64651-44B01
|
$12.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
RETAINER
64733-31300
|
$20.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BEARING
09262-25073
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SEAL, DUST
09285-33001
|
$7.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
RIM, REAR WHEEL (MT2.50X17)
65311-44B10
Superseded by 65311-44B30
|
$324.55 | ||
|
Unavailable |
|||
|
#25
SPOKE SET
65320-44B10
|
$65.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
TIRE, REAR (120/90-17 64S)
65100-14A20
Superseded by 65100-12E00
|
$127.09 | ||
|
Unavailable |
|||
|
#27
TUBE ASSY, WHEEL INNER
65200-13A20
Superseded by 65200-49030
|
$45.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
PROTECTOR
65261-44B10
|
$2.93 | ||
|
Unavailable |
|||
|
#29
PIN, REAR AXLE
04111-40308
Superseded by 04111-4030A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
