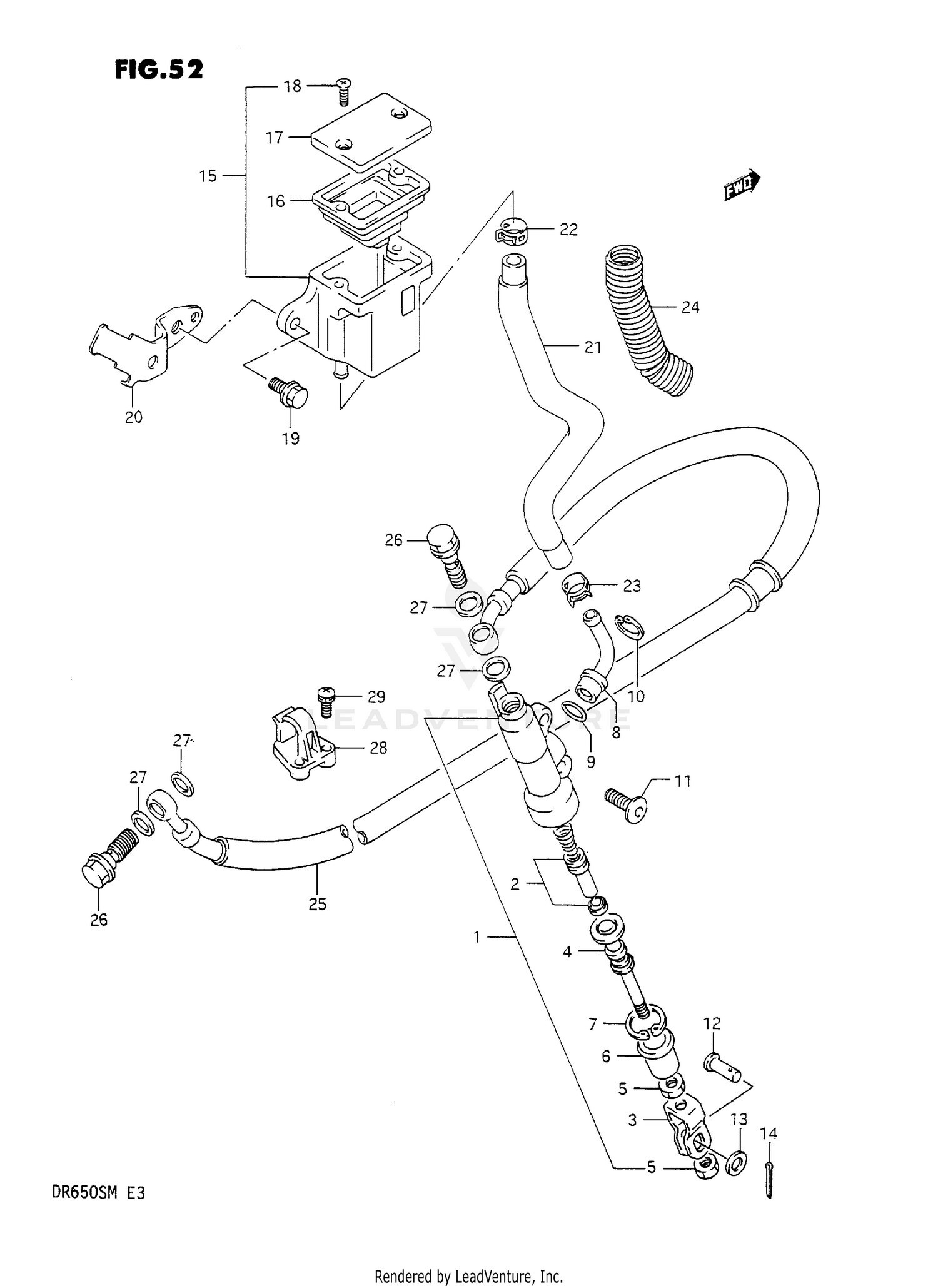

1990 Suzuki DR650SL REAR MASTER CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, REAR MASTER
69600-14A51
|
$280.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PISTON/CUP SET
69600-34810
|
$49.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
YOKE
69692-27A30
|
$14.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
ROD, PUSH
69670-00B21
|
$25.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
NUT
69693-05A00
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOOT
69691-00A00
|
$5.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CIRCLIP
51162-70040
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CONNECTOR
69672-00B20
|
$7.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING
69686-34200
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CIRCLIP
69674-00B20
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BOLT
09106-06064
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIN (6X18.2)
09200-06037
Superseded by 09200-06068
|
$4.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER
08322-21067
Superseded by 08322-01067
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
TANK ASSY, REAR RESERVOIR
69740-38B20
Superseded by 69740-38B21
|
$90.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
DIAPHRAGM
59667-04700
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CAP
69669-24A01
|
$15.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW
69689-04A00
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
01517-06128
Superseded by 01550-06127
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PLATE, RESERVOIR TANK
69750-12D02
|
$4.88 | ||
|
Unavailable |
|||
|
#21
HOSE, RESERVOIR TANK
69730-12D00
|
$20.01 | ||
|
Unavailable |
|||
|
#22
CLAMP, HOSE UPPER
09401-12405
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLIP
09401-12402
Superseded by 09401-12404
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SHIELD, HOSE
69732-12D00
Superseded by 69732-12D10
|
$13.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOSE COMP, RR B
69480-12D00
Superseded by 69480-12DV0
|
$81.67 | ||
|
Unavailable |
|||
|
#26
BOLT, UNION
09360-10017
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
WASHER
09161-10009
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
GUIDE, BRAKE HOSE
61196-03D00
|
$4.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
SCREW, OUTER
02112-35168
Superseded by 02112-35167
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
