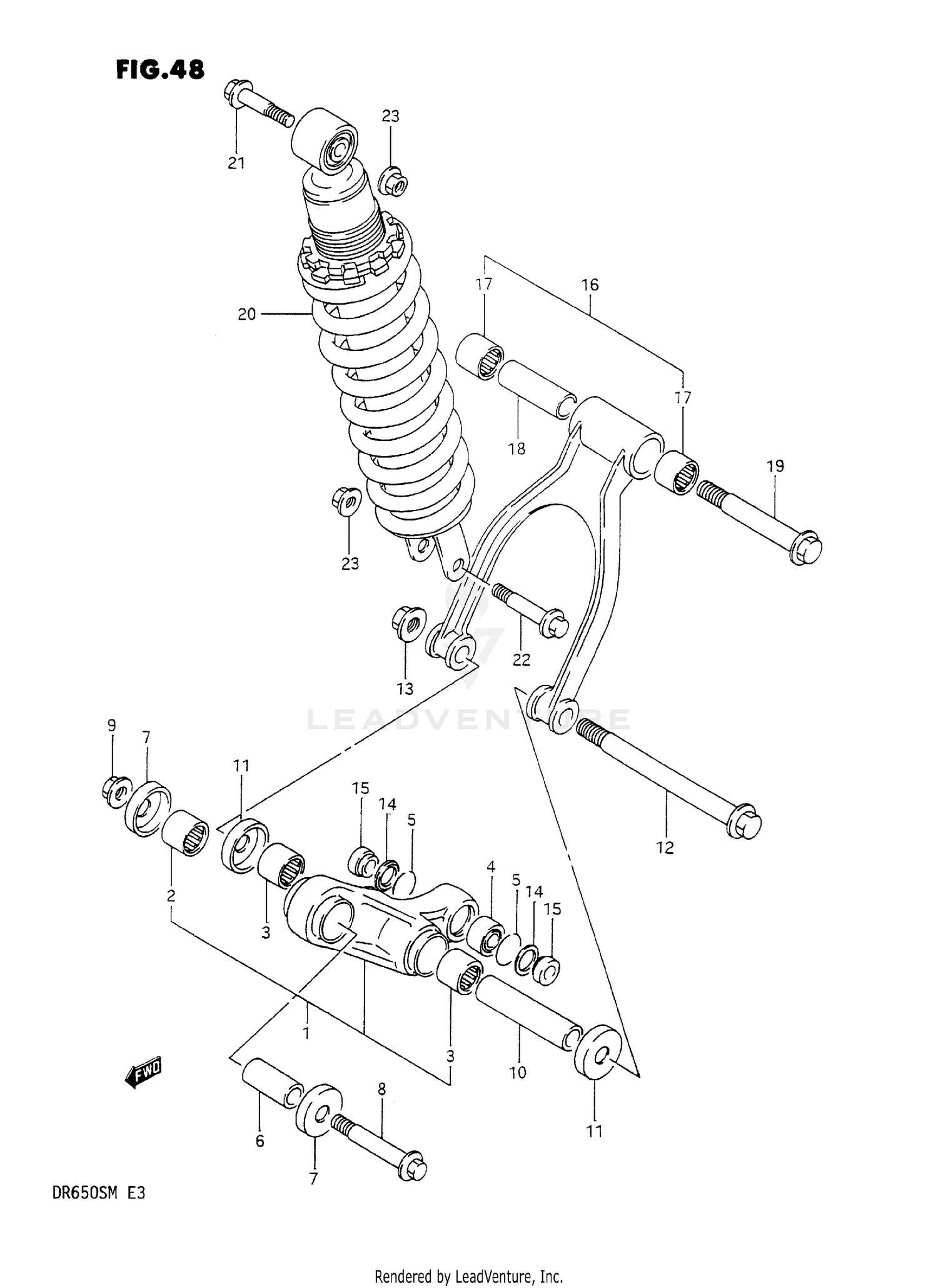

1990 Suzuki DR650SL REAR CUSHION LEVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LEVER SET, REAR CUSHION
62600-12870
Superseded by 62600-12871
|
$220.59 | ||
|
Unavailable |
|||
|
#2
.BEARING (20X27X30)
09263-20073
Superseded by 09263-20121
|
$17.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING
09263-20071
|
$25.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BEARING, REAR (10x24x14.5)
62175-27C00
Superseded by 62175-00B00
|
$63.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RING, STOPPER
62277-14200
Superseded by 62657-34A01
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SPACER, FRONT
62317-44B00
|
$18.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
COVER
62624-08D00
Superseded by 62624-08D01
|
$9.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT, FRONT
62658-00B20
|
$10.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
08319-31128
Superseded by 08319-3112A
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, CENTER
09180-14013
|
$18.50 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
62624-08D10
|
$12.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT, ROD LOWER
62622-44B00
|
$17.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT
08319-31148
Superseded by 08319-3114A
|
$9.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SEAL, DUST, REAR
62226-14520
|
$8.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPACER
62684-14520
|
$8.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
ROD SET, REAR CUSHION
62600-44820
Superseded by 62600-44821
|
$181.83 | ||
|
Unavailable |
|||
|
#17
BEARING
09263-20071
|
$25.85 | ||
|
Unavailable |
|||
|
#18
SPACER, ROD
09180-14015
|
$16.82 | ||
|
Unavailable |
|||
|
#19
BOLT, ROD UPPER
62621-44B00
|
$12.59 | ||
|
Unavailable |
|||
|
#20
NO DESCRIPTION AVAILABLE
62100-14A10-163
Superseded by 62100-14A11-28W
|
$538.08 | ||
|
Unavailable |
|||
|
#20
NO DESCRIPTION AVAILABLE
62100-14A10-28W
Superseded by 62100-14A11-28W
|
$538.08 | ||
|
Unavailable |
|||
|
#21
BOLT, UPPER
09103-10064
|
$4.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT, LOWER
09103-10213
|
$4.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
NUT, REAR SWGARM BRACKET
09159-10058
Superseded by 09159-10115
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
