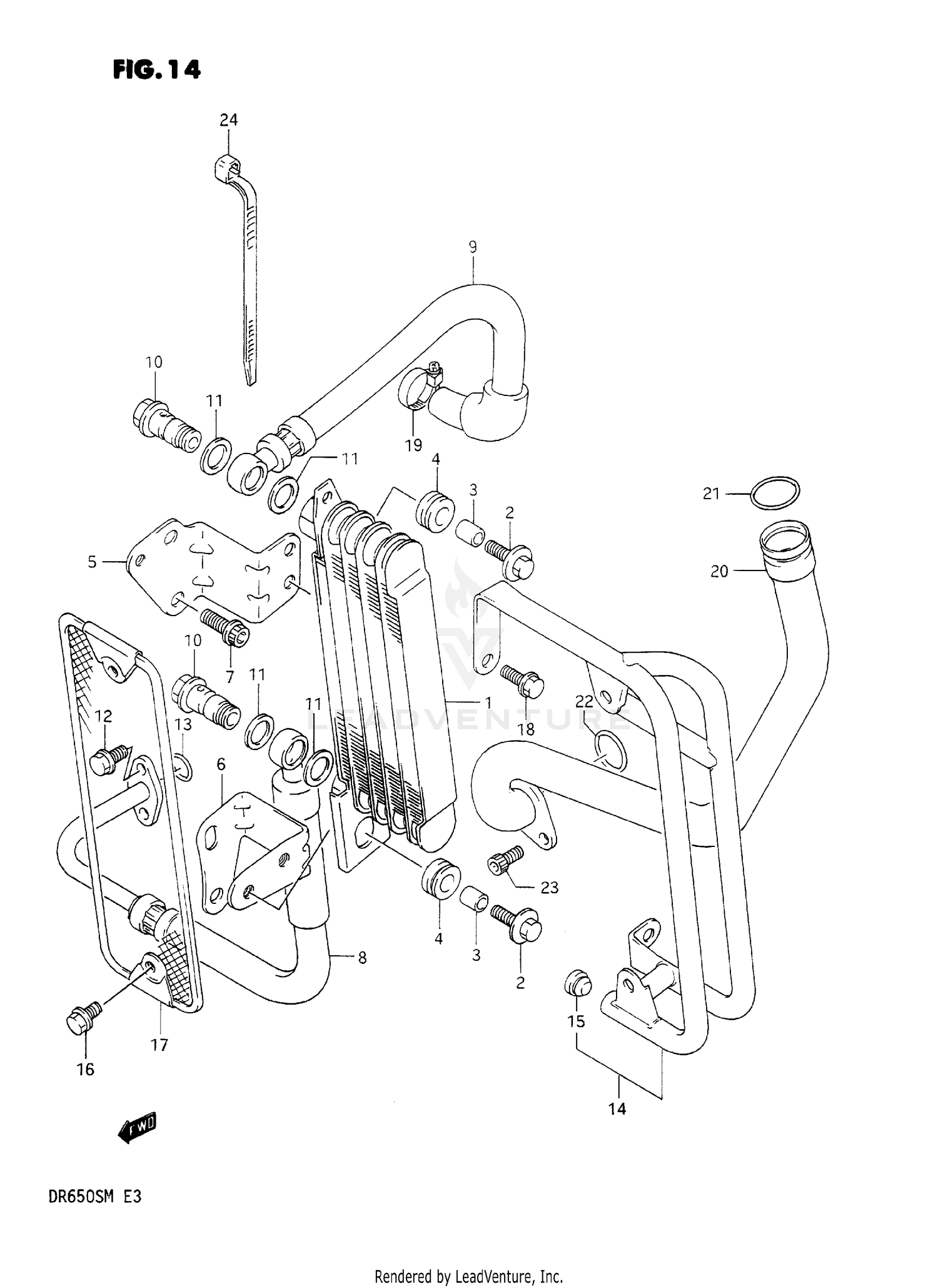

1990 Suzuki DR650SL OIL COOLER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-14A10
|
$386.67 | ||
|
Unavailable |
|||
|
#2
BOLT (6X20)
09116-06143
Superseded by 09116-06115
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SPACER (6.5X10X10)
09180-06030
Superseded by 09180-06310
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CUSHION, OIL COOLER
09320-10015
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BRACKET, OIL COOLER UPPER
16620-14A10
|
$7.79 | ||
|
Unavailable |
|||
|
#6
BRACKET, OIL COOLER LOWER
16630-14A10
|
$8.47 | ||
|
Unavailable |
|||
|
#7
BOLT
07120-08165
Superseded by 07120-0816A
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
HOSE, OIL COOLER NO.1
16460-14A10
|
$156.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HOSE, OIL COOLER NO.2
16470-14A10
|
$71.96 | ||
|
Unavailable |
|||
|
#10
BOLT, UNION (M:12XL:28.5)
09360-12004
Superseded by 09360-12006
|
$12.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
GASKET (14X20X1.5)
09168-14011
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
01547-06165
Superseded by 01547-0616B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
O RING (D:2.4,ID:12.3)
09280-12008
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
GUARD, OIL COOLER
16640-14A10
Superseded by 16640-14A12
|
$83.16 | ||
|
Unavailable |
|||
|
#15
PLUG, PIPE
09250-09005
|
$1.15 | ||
|
Unavailable |
|||
|
#16
BOLT, CLAMP
01517-06125
Superseded by 01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BUMPER, OIL COOLER
16650-14A10
|
$23.96 | ||
|
Unavailable |
|||
|
#18
BOLT
01547-06127
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP, LOWER
09402-15502
Superseded by 09402-17511
|
$5.39 | ||
|
Unavailable |
|||
|
#20
PIPE, OIL RETURN
11160-12D01
|
$49.76 | ||
|
Unavailable |
|||
|
#21
O RING (D:3.7,ID:21.7)
09280-22016
|
$5.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
O RING (D:2.4,ID:23.7)
09280-22010
Superseded by 09280-24010
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
BOLT
07110-06165
Superseded by 07130-0616B
|
$2.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLAMP
09407-14403
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
