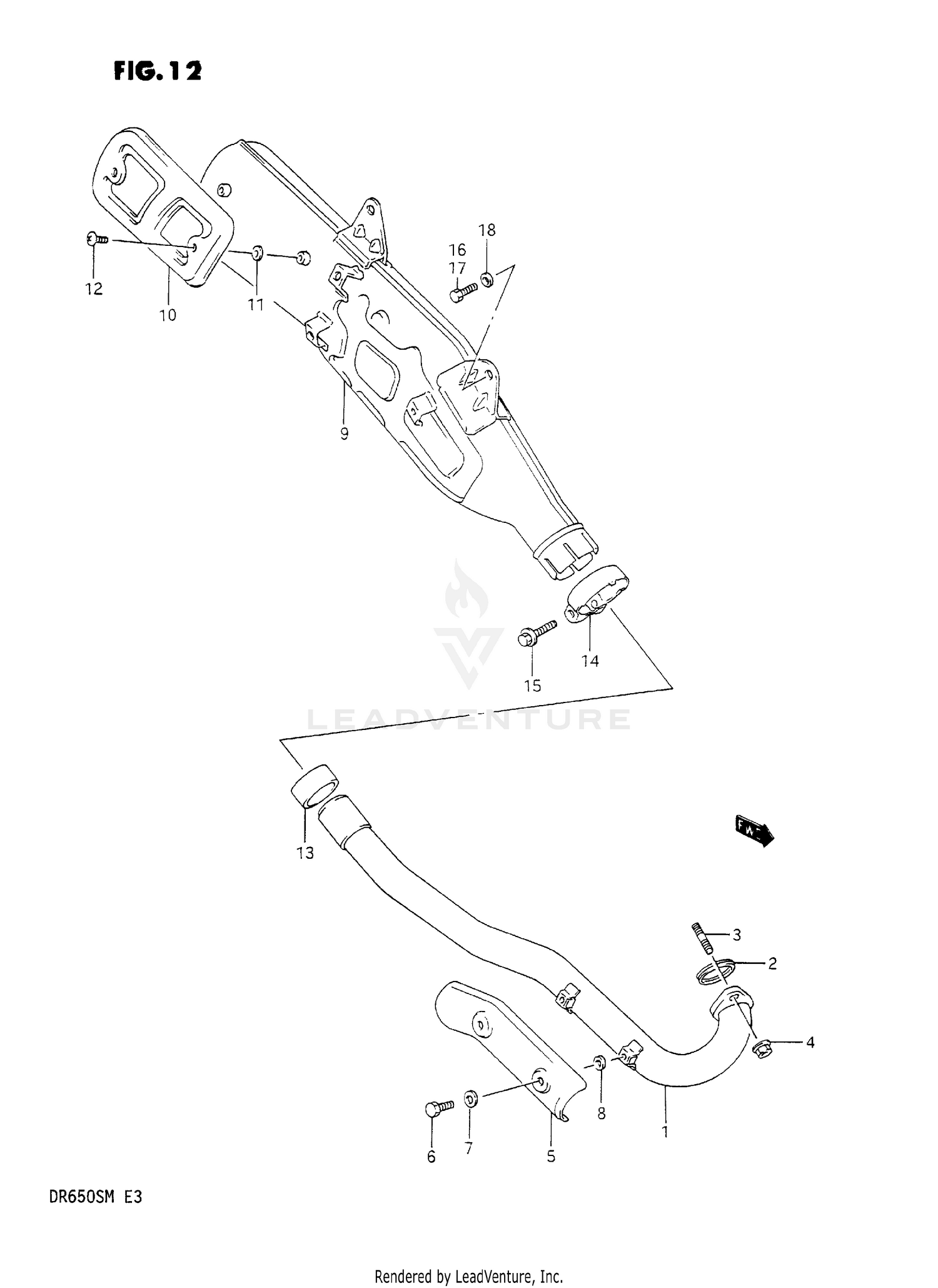

1990 Suzuki DR650SL MUFFLER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST
14150-14A20
Superseded by 14150-14A22
|
$194.90 | ||
|
Unavailable |
|||
|
#1
PIPE, EXHAUST
14150-14A21
Superseded by 14150-14A22
|
$194.90 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE (NA)
14181-01D00
|
$7.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT, STUD
09108-08106
|
$2.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
NUT
08316-26085
Superseded by 08316-2008A
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER, EXHAUST PIPE
14180-12D00
|
$36.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW, MUFFLER COVER
09139-06041
Superseded by 09139-06076
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER (6.5X18X1)
09160-06056
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GASKET (5.8X16X1.4,NA)
09168-06122
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BODY, MUFFLER
14310-15A20-H01
|
$624.99 | ||
|
Unavailable |
|||
|
#10
COVER, MUFFLER
14781-14A10
|
$15.80 | ||
|
Unavailable |
|||
|
#11
GASKET (NA)
14181-14A00-H17
Superseded by 09168-06121
|
$2.35 | ||
|
Unavailable |
|||
|
#12
STOPPER, CL RLSE CAM SHAFT
02142-06104
Superseded by 02142-0610A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CONNECTOR, MUFFLER
14771-44B10
Superseded by 14771-44B00
|
$21.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CONNECTOR (NA)
14771-44B00
|
$21.40 | ||
|
Unavailable |
|||
|
#14
CLAMP
14469-05A00
|
$16.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT
01517-08405
Superseded by 01550-08407
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
09106-08107
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
09106-08106
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER (8.5X19X2.3)
09160-08053
Superseded by 09160-08039
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
