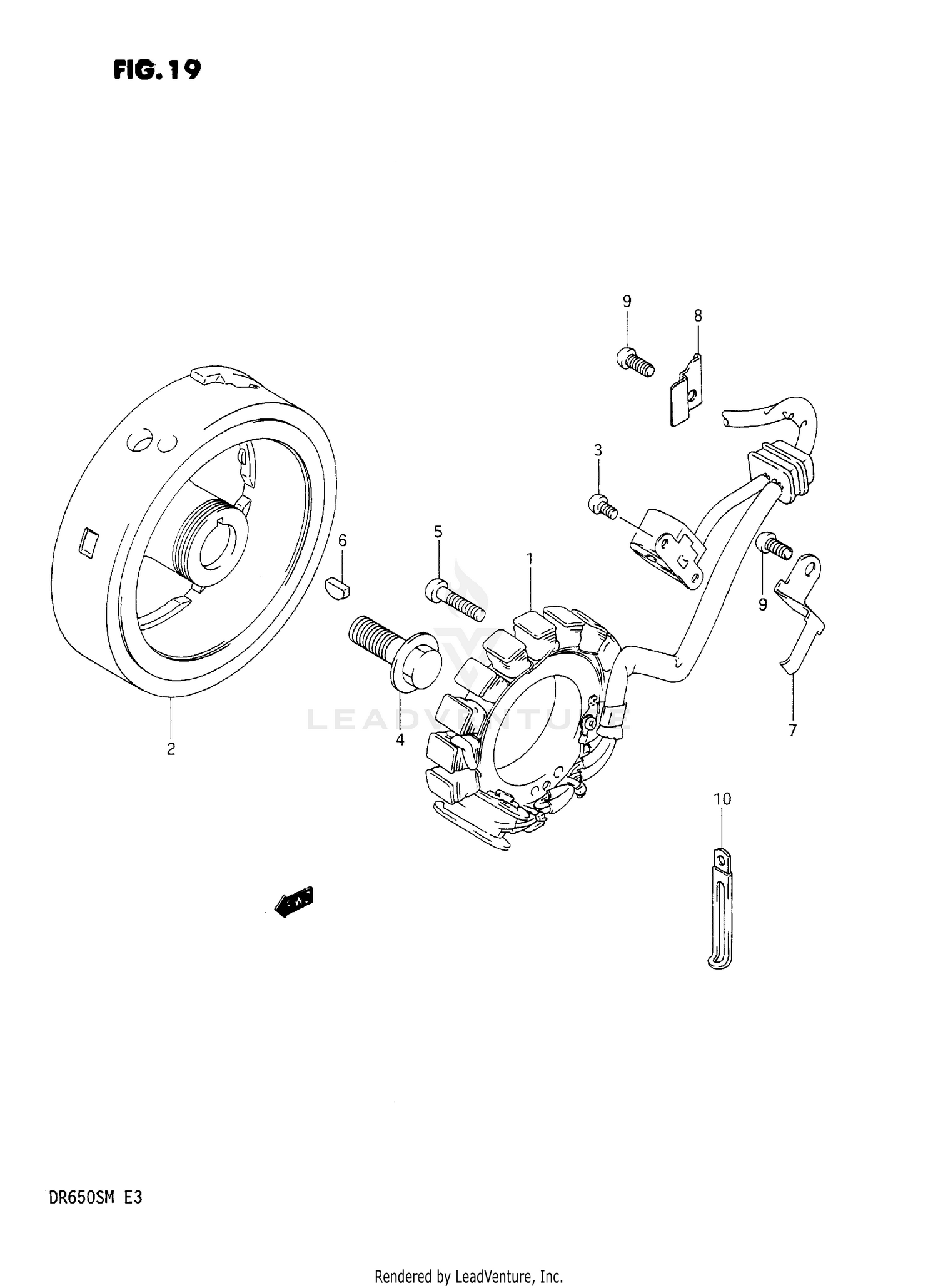

1990 Suzuki DR650SL MAGNETO OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STATOR ASSY
32101-12D00
|
$638.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
ROTOR
32102-12D00
|
$588.66 | ||
|
Unavailable |
|||
|
#3
SCREW
02112-05128
Superseded by 02112-05127
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
09103-14001
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW
02112-06258
Superseded by 02112-06257
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
KEY
08341-31049
Superseded by 09420-04008
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CLAMP
32371-14A00
|
$1.70 | ||
|
Unavailable |
|||
|
#8
CLAMP
32371-12D10
|
$1.83 | ||
|
Unavailable |
|||
|
#9
SCREW
02112-06108
Superseded by 02112-06107
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
CLAMP (L:65)
09404-06402
Superseded by 09404-06039
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
