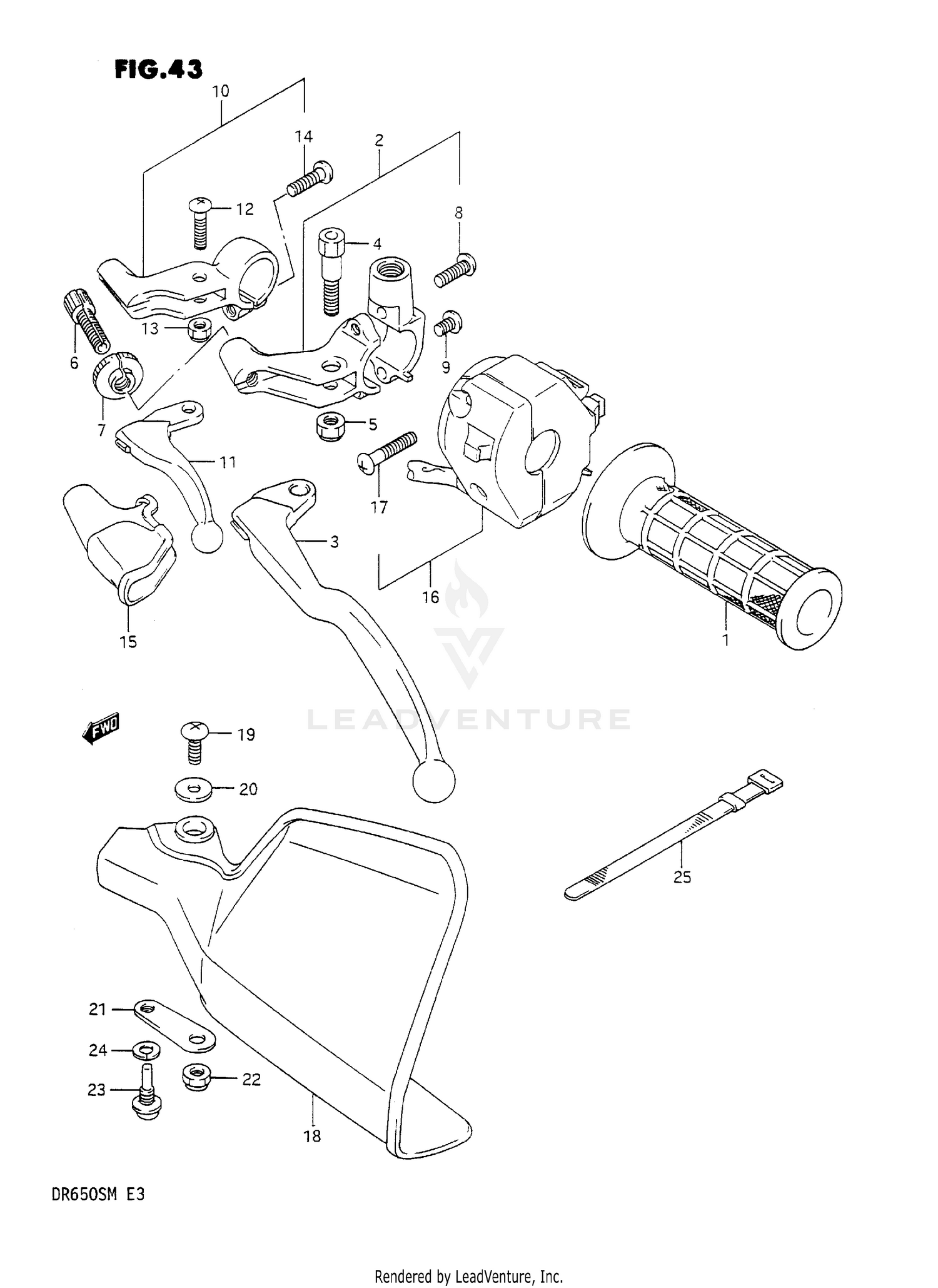

1990 Suzuki DR650SL LEFT HANDLE SWITCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GRIP, LH
57211-12D00
|
$17.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
LEVER ASSY, CLUTCH
57500-12D00
|
$32.95 | ||
|
Unavailable |
|||
|
#3
LEVER
57620-14310
|
$25.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
57631-05D00
|
$6.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
.NUT
08319-21068
Superseded by 08319-2106A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
ADJUSTER
57441-11010
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT
57442-05D00
|
$7.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW, UPPER
02112-05164
|
$2.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
09125-05066
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
LEVER ASSY,DECO
58700-38200
Superseded by 58700-38210
|
$94.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
LEVER
58731-38200
|
$43.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
57431-01012
|
$5.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT
57633-38200
|
$5.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SCREW
02112-06205
Superseded by 02112-0620A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER, DECOMP LEVER
57342-37101
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SWITCH ASSY, HANDLE LH
37400-14A60
|
$70.78 | ||
|
Unavailable |
|||
|
#17
.SCREW
02112-05305
Superseded by 02112-0530B
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
COVER, KNUCKLE,LH (BLUE)
57541-05D00-0NF
Superseded by 57541-05D01-0NF
|
$40.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW
09125-05042
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
WASHER (5.5X16X1.2)
09160-05017
Superseded by 09160-05043
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
PLATE, COVER,LH
57542-05D00
|
$3.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
.NUT
08319-21068
Superseded by 08319-2106A
|
$1.88 | ||
|
Unavailable |
|||
|
#23
SCREW
09139-06010
Superseded by 09139-06086
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
LOCK WASHER
08321-21067
Superseded by 08321-01067
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BAND
09407-12402
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
