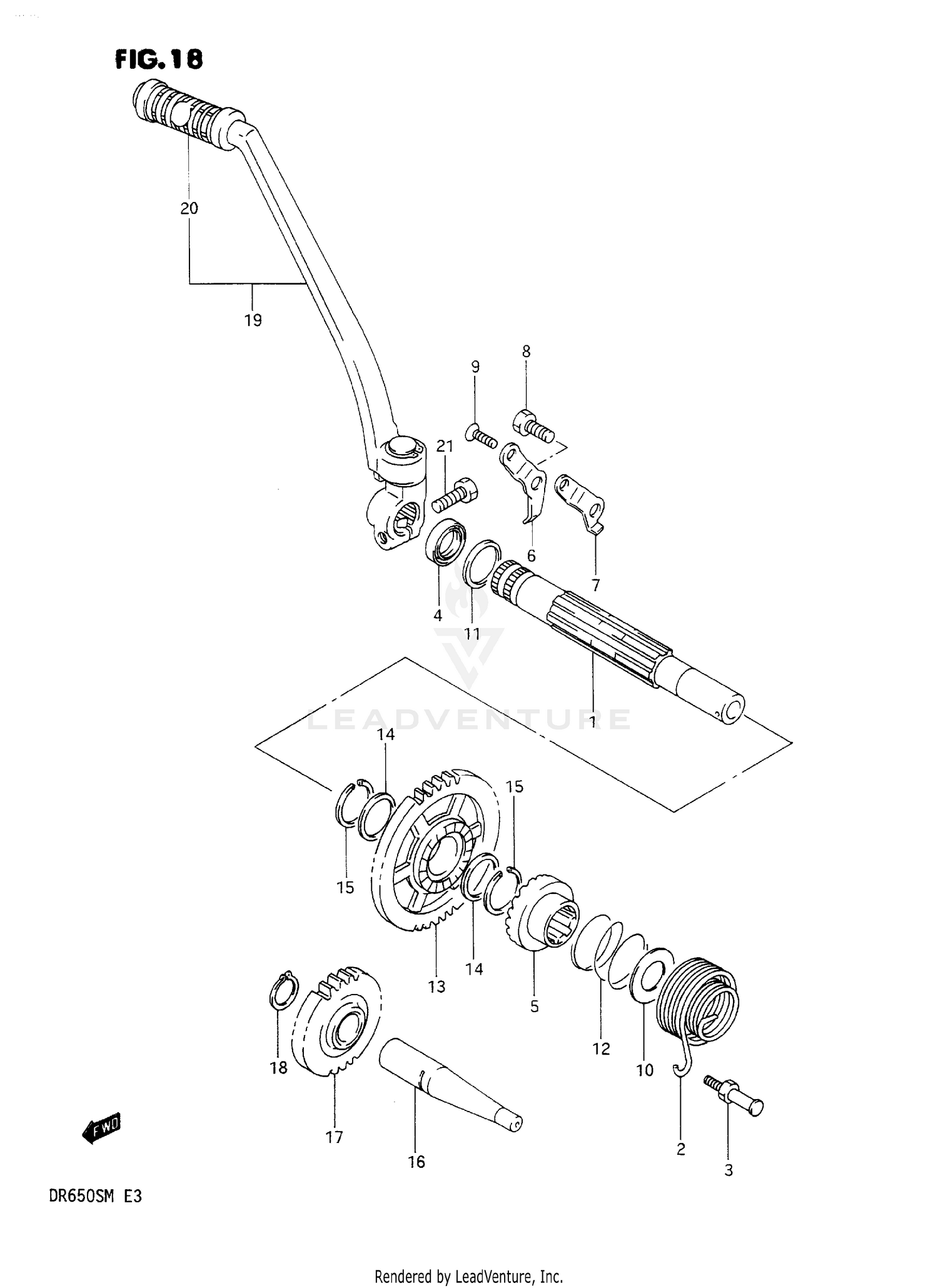

1990 Suzuki DR650SL KICK STARTER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, KICK STARTER
26211-14A02
|
$84.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
SPRING
09448-41003
|
$7.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
26237-14500
|
$3.62 | ||
|
Unavailable |
|||
|
#4
OIL SEAL (20X27X6)
09283-20044
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
STARTER, KICK
26231-38201
Superseded by 26231-38202
|
$30.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LIFTER
26232-14A00
|
$7.79 | ||
|
Unavailable |
|||
|
#7
STOPPER
26233-14A01
|
$8.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
01107-08206
Superseded by 01500-0820A
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
02122-06167
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER
08211-17341
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SHIM (20X28X1)
08211-20281
Superseded by 09181-20167
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SPRING
09440-32006
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
GEAR, DRIVE (NT:40)
26240-14A00
|
$47.87 | ||
|
Unavailable |
|||
|
#14
WASHER (22X28X1.0)
08211-22281
Superseded by 09181-22139
|
$2.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CIRCLIP
09380-22006
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
SHAFT, IDLE
26223-14A00
Superseded by 26223-14A01
|
$18.55 | ||
|
Unavailable |
|||
|
#17
GEAR, STARTER IDLE (NT:24)
26260-37400
|
$37.07 | ||
|
Unavailable |
|||
|
#18
CIRCLIP
09380-17001
|
$1.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
LEVER ASSY, KICK STARTER
26300-14A00
Superseded by 26300-14A03
|
$167.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
COVER
26352-16401
|
$4.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT
09100-08194
|
$1.00 | ||
|
Unavailable |
|||
