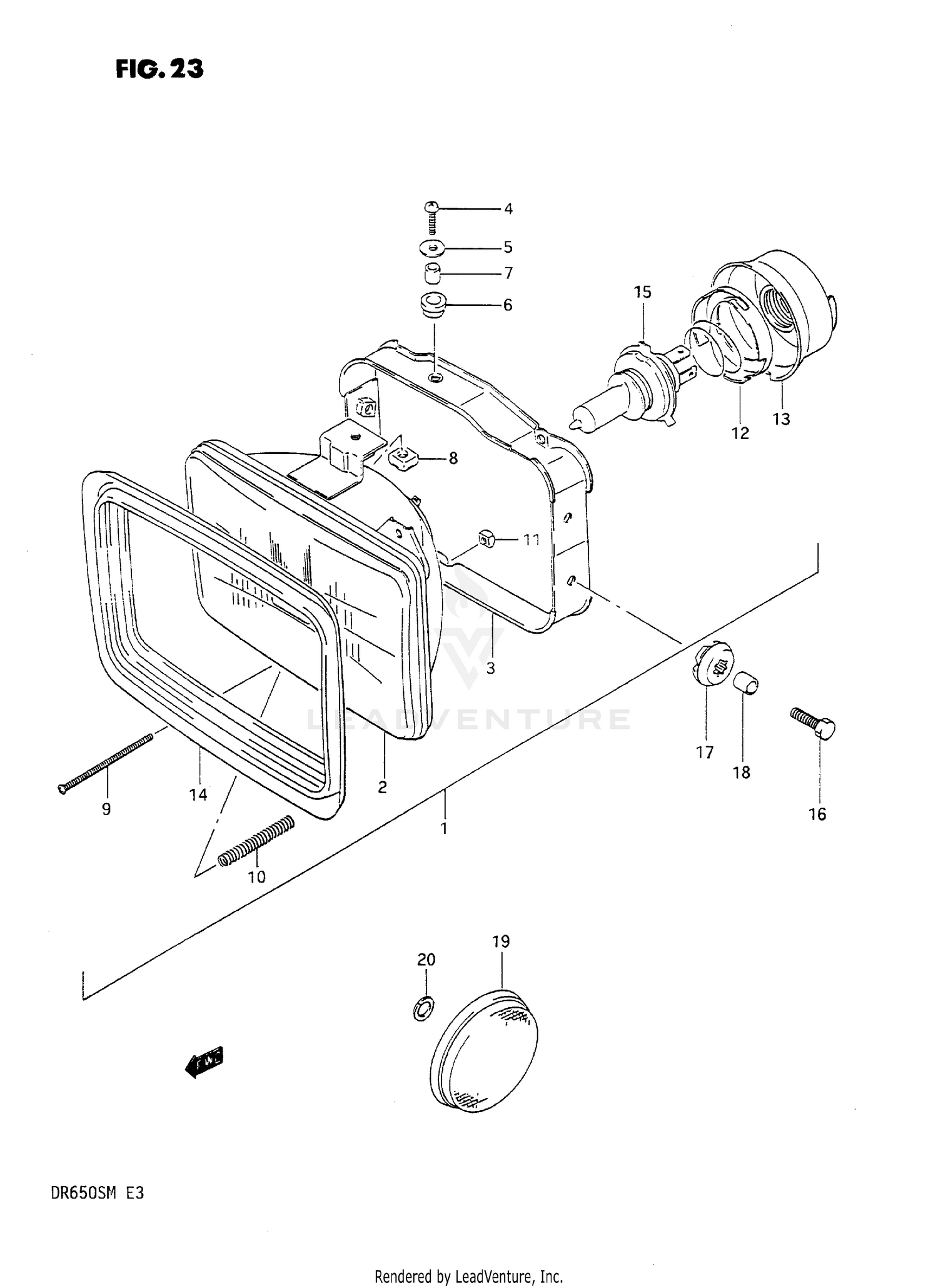

1990 Suzuki DR650SL HEADLAMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEADLAMP ASSY
35100-14C30-999
Superseded by 35100-14A33-999
|
$181.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
LAMP UNIT
35121-14C30
Superseded by 35121-14A31
|
$72.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
HOUSING
35141-14A00
|
$32.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW
02112-05208
Superseded by 02112-05207
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER (5.5X18X1)
35138-45230
Superseded by 09160-05045
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUSHION
35139-45230
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPACER
35133-14A00
|
$2.88 | ||
|
Unavailable |
|||
|
#8
NUT
35135-45900
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SCREW
35151-49200
Superseded by 35151-45900
|
$3.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPRING
35154-49200
|
$4.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
35135-45600
|
$3.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
HOLDER, BULB
35136-01A00
|
$6.26 | ||
|
Unavailable |
|||
|
#13
COVER, SOCKET
35173-01440
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SHADE
35129-14C00
|
$17.12 | ||
|
Unavailable |
|||
|
#15
BULB (12V,60/55W,H4)
09471-12060
|
$12.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT (6X20)
09116-06011
Superseded by 09116-06115
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CUSHION
09320-09009
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPACER (6.5X9X10)
09180-06114
Superseded by 09180-06307
|
$3.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
REFLEX REFLECTOR, FRONT SIDE
35950-30910
|
$16.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
LOCK WASHER
08321-21057
Superseded by 08321-0105A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
