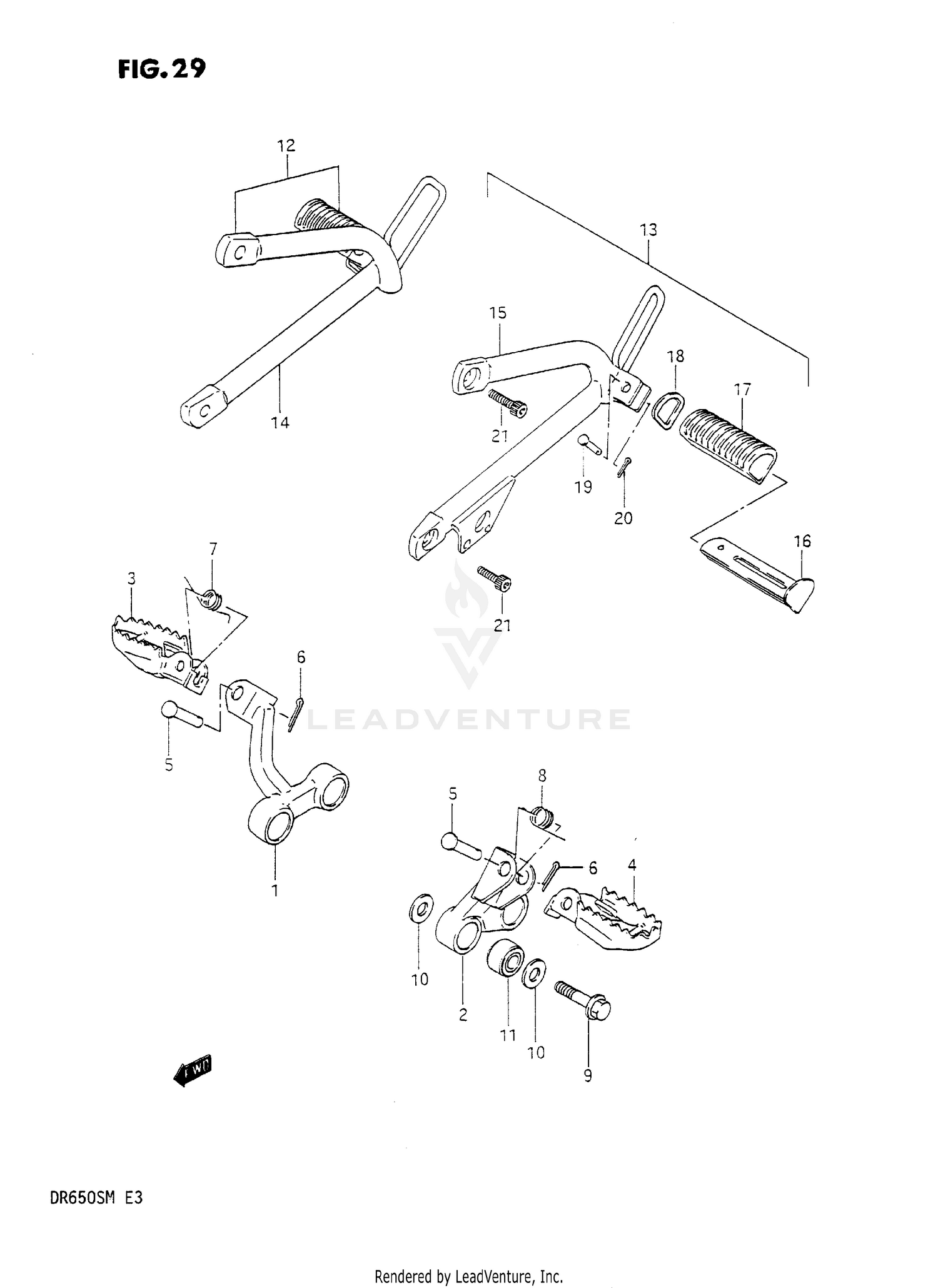

1990 Suzuki DR650SL FOOTREST OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR, FOOTREST RH (BLACK)
43510-14A00-0NF
Superseded by 43510-14A00-019
|
$51.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BAR, FOOTREST LH (BLACK)
43520-14A00-0NF
Superseded by 43520-14A00-019
|
$51.34 | ||
|
Unavailable |
|||
|
#3
FOOTREST, FRONT RH (BLACK)
43550-44B10-0NF
Superseded by 43550-44B10-019
|
$32.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FOOTREST, FRONT LH (BLACK)
43560-44B10-0NF
Superseded by 43560-44B10-019
|
$33.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
PIN
09200-10008
|
$2.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
COTTER PIN
04111-20208
Superseded by 04111-2020A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SPRING
09448-15008
Superseded by 09448-15008-XC0
|
$1.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SPRING, LH
09448-15004
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
09103-10232
|
$4.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER
09160-10059
Superseded by 09160-10124
|
$2.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUSH
09319-10033
|
$6.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
FOOTREST, PILLION RH (BLUE)
43600-14C00-0NF
|
$74.10 | ||
|
Unavailable |
|||
|
#13
NO DESCRIPTION AVAILABLE
43700-14C00-0NF
Superseded by 43700-14C00-019
|
$93.85 | ||
|
Unavailable |
|||
|
#14
HOLDER, RH (BLUE)
43650-14C00-0NF
|
$67.73 | ||
|
Unavailable |
|||
|
#15
NO DESCRIPTION AVAILABLE
43750-14C00-0NF
Superseded by 43700-14C00-019
|
$93.85 | ||
|
Unavailable |
|||
|
#16
BAR, RH
43610-14A10
|
$6.10 | ||
|
Unavailable |
|||
|
#16
BAR, LH
43620-14A10
|
$6.54 | ||
|
Unavailable |
|||
|
#17
RUBBER
43612-14A00
|
$6.27 | ||
|
Unavailable |
|||
|
#18
WASHER
43631-14A10
|
$1.66 | ||
|
Unavailable |
|||
|
#19
PIN
09200-06010
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
.COTTER PIN
04111-20158
Superseded by 04111-2015A
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BOLT, BRACKET
07110-08207
Superseded by 07130-08207
|
$3.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
