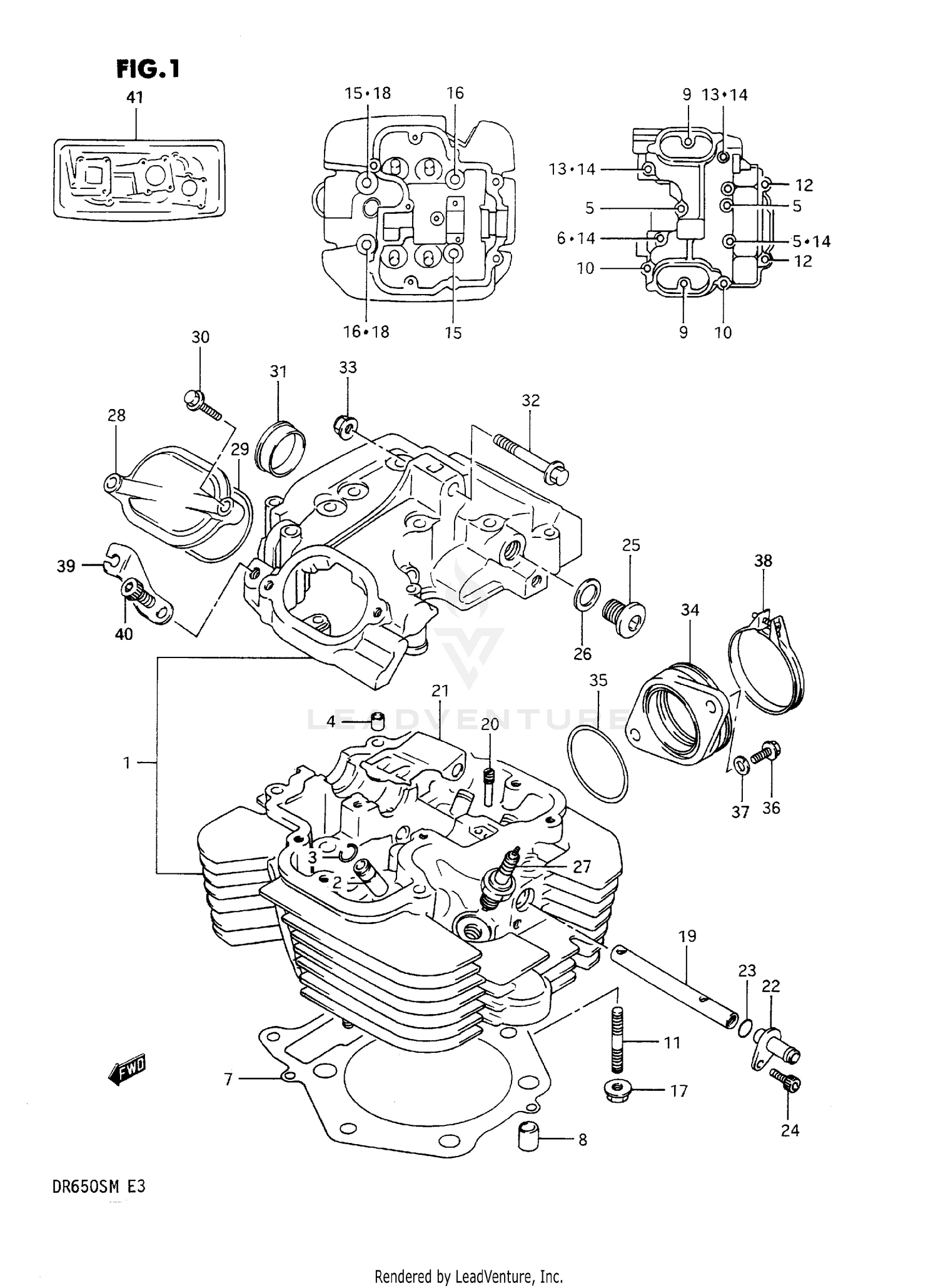

1990 Suzuki DR650SL CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-12D00
|
$685.19 | ||
|
Unavailable |
|||
|
#2
GUIDE, VALVE
11115-37470
|
$35.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RING, VALVE GUIDE
09381-10003
|
$1.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PIN
09206-08001
|
$1.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01517-06605
Superseded by 01550-0660A
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT CYL HEAD C
09103-06040
Superseded by 09103-06040-XC0
|
$5.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, CYLINDER HEAD
11141-12D00
|
$48.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
PIN
09206-13001
Superseded by 04211-13189
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT
01517-06257
Superseded by 01550-06257
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
01517-06404
Superseded by 01550-0640A
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
STUD BOLT (8X33)
09108-08161
Superseded by 09108-08220
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT (6X130)
09103-06085
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT
01517-06605
Superseded by 01550-0660A
|
$3.02 | ||
|
Unavailable |
|||
|
#14
GASKET (5.8X13X1.2)
09168-06028
Superseded by 09168-06023
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT (10X190)
09103-10179
|
$15.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT (10X215)
09103-10181
|
$13.16 | ||
|
Unavailable |
|||
|
#17
NUT
08316-16085
Superseded by 08316-1008B
|
$2.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
GASKET
09168-10017
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PIPE, HEAD OIL
11131-12D00
|
$13.01 | ||
|
Unavailable |
|||
|
#20
SCREW
09134-06012
|
$2.72 | ||
|
Unavailable |
|||
|
#21
PLATE, HEAD CHAMBER
11135-12D00
|
$4.34 | ||
|
Unavailable |
|||
|
#22
UNION, HEAD OIL
11190-12D00
Superseded by 11190-12D01
|
$13.85 | ||
|
Unavailable |
|||
|
#23
O RING
09280-10009
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT, NO.3
07110-06105
Superseded by 07130-0610B
|
$3.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PLUG, HEAD COVER
09248-14010
|
$5.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
GASKET
09168-14004
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPARK PLUG (NGK,DPR9EA-9)
09482-00328
Superseded by 09482-00330
|
$3.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPARK PLUG (ND,X27EP-U9)
09482-00329-111
|
$2.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
CAP, INSPECTION
11175-12D00
Superseded by 11175-12D10
|
$15.62 | ||
|
Unavailable |
|||
|
#29
O RING
09280-60004
|
$3.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
BOLT
01517-06205
Superseded by 01550-0620A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
PLUG, HEAD
09241-30004
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT (8X53)
09103-08257
Superseded by 09103-08332
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT (8X53)
09103-08290
Superseded by 09103-08332
|
$3.87 | ||
|
Unavailable |
|||
|
#33
NUT
08319-31085
Superseded by 08319-3108A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
PIPE, INTAKE
13110-12D00
|
$40.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
O RING
09280-46002
|
$10.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
BOLT, FRONT
07120-06205
Superseded by 07120-0620B
|
$3.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
LOCK WASHER
08321-31064
Superseded by 08321-0106A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
CLAMP
09402-58208
|
$5.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
HOLDER, DECOMP CABLE
12944-14A00
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
BOLT
07110-08165
Superseded by 07130-0816A
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
GASKET SET
11400-12890
Superseded by 11400-12895
|
$114.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
