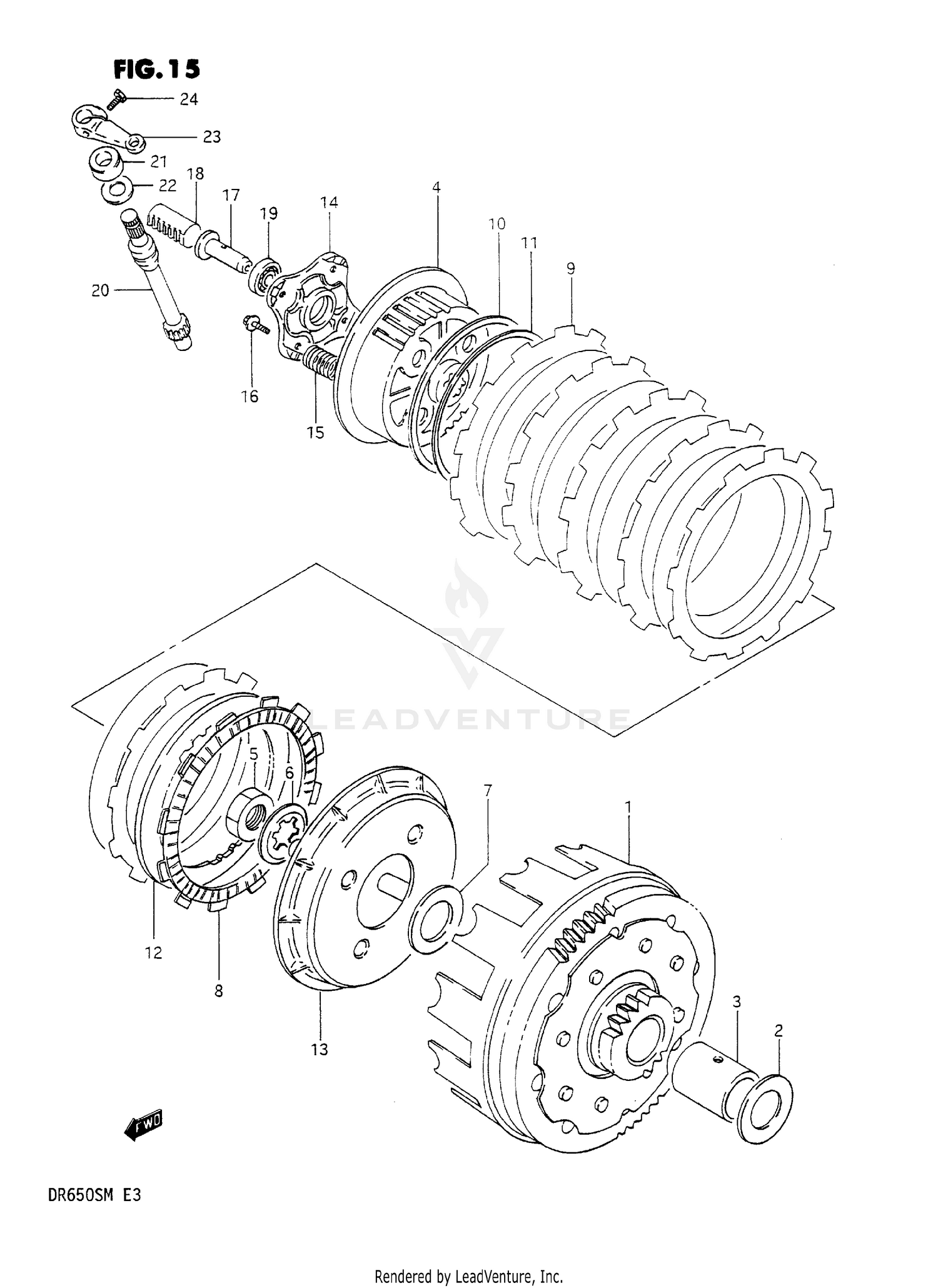

1990 Suzuki DR650SL CLUTCH OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVEN
21200-12D00
Superseded by 21200-12D01
|
$254.17 | ||
|
Unavailable |
|||
|
#2
WASHER
08211-22383
|
$3.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SPACER
09180-22023
|
$21.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
HUB, SLEEVE
21410-12D00
Superseded by 21410-12D01
|
$106.24 | ||
|
Unavailable |
|||
|
#5
NUT
09140-22003
|
$2.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LOCK WASHER
09167-22005
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER
08211-22383
|
$3.32 | ||
|
Unavailable |
|||
|
#8
PLATE, DRIVE NO.1
21441-12D00
Superseded by 21441-12D01
|
$21.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
PLATE, CLUTCH DRIVE NO.2
21442-12D00
Superseded by 21442-37401
|
$19.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SEAT, WAVE WASHER (T:1.4)
21471-37400
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WAVE WASHER
09164-00004
|
$11.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLATE, CLUTCH DRIVEN (T:1.6)
21451-12D00
Superseded by 21451-14A00
|
$9.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
DISK, PRESSURE
21462-12D00
|
$49.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLATE, RELEASE
21465-37400
|
$17.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
SPRING
09440-20013
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01517-06207
Superseded by 01550-06207
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIECE, CLUTCH PUSH
23121-14A00
|
$10.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
RACK, RELEASE
23165-37400
|
$18.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BEARING (12X28X8)
08110-60010
Superseded by 09262-12001
|
$18.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PINION, RELEASE
23261-16501
|
$48.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
OIL SEAL (12X22X9)
09285-12006
|
$6.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WASHER (14.5X22X1)
09160-14003
Superseded by 09160-14054
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
ARM, RELEASE
23271-45400
|
$29.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT
01107-06207
Superseded by 01500-06207
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
