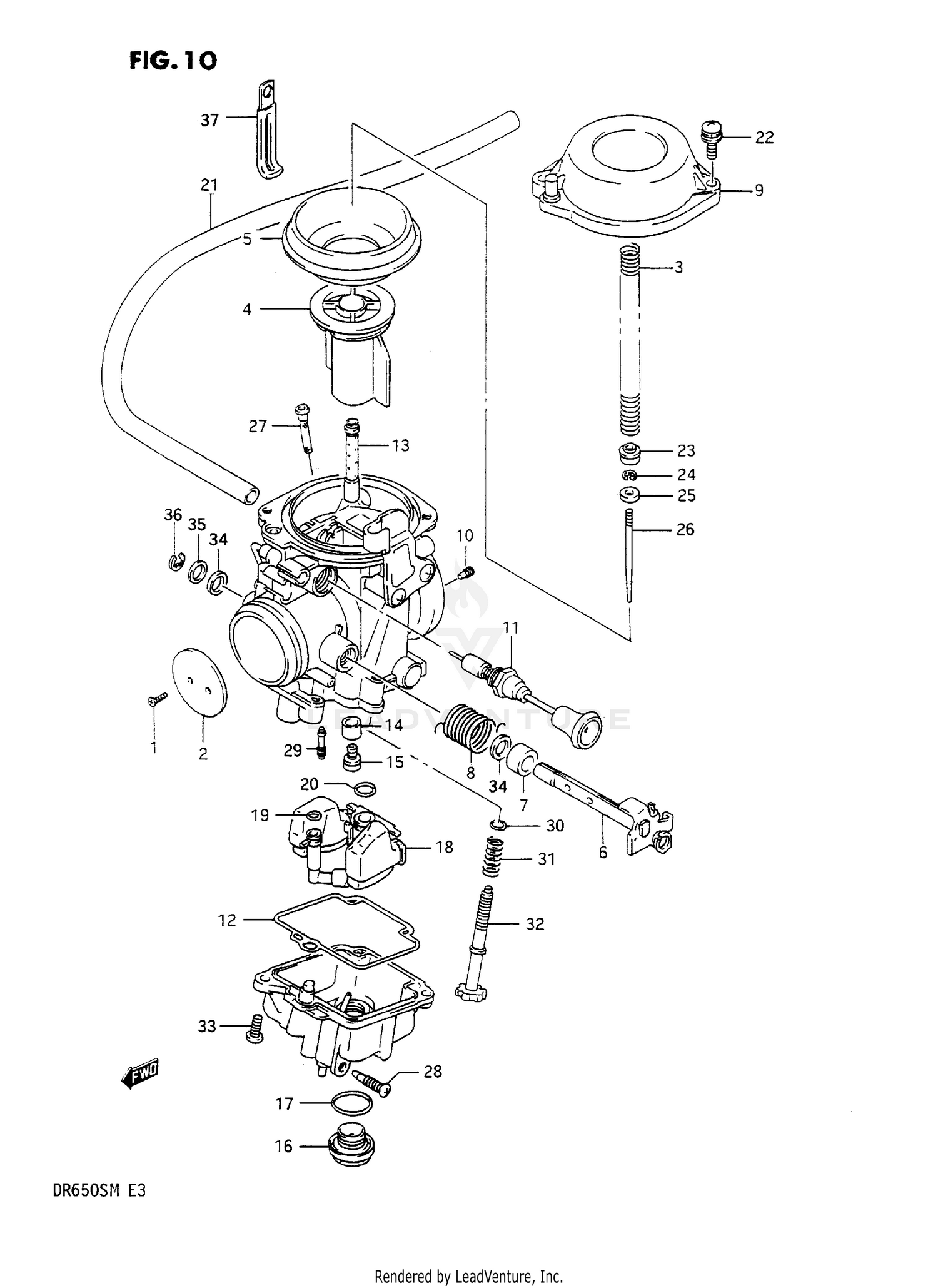

1990 Suzuki DR650SL CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
NO DESCRIPTION AVAILABLE
13200-14A70
Superseded by 13200-14A71
|
$377.11 | ||
|
Unavailable |
|||
|
#
NO DESCRIPTION AVAILABLE
13200-14A80
Superseded by 13200-14A81
|
$328.24 | ||
|
Unavailable |
|||
|
#1
SCREW, THROTTLE VALVE
13604-07D00
Superseded by 13604-44080
|
$2.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
VALVE, THROTTLE (110)
13551-12D00
|
$22.51 | ||
|
Unavailable |
|||
|
#3
SPRING
13417-12D00
|
$6.44 | ||
|
Unavailable |
|||
|
#4
VALVE, PISTON
13501-12D00
|
$67.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
.DIAPHRAGM
13507-07D00
Superseded by 13507-07D02
|
$27.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SHAFT ASSY, THROTTLE
13550-12D00
|
$33.61 | ||
|
Unavailable |
|||
|
#7
RING
13557-05A20
|
$2.93 | ||
|
Unavailable |
|||
|
#8
SPRING
13573-12D00
|
$5.17 | ||
|
Unavailable |
|||
|
#9
COVER, DIAPHRAGM
13502-12D00
|
$34.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
JET, AIR (1.4)
09493-28007
Superseded by 09493-28006
|
$14.30 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PLUNGER ASSY
13411-15A30
|
$51.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GASKET, FLOAT CHAMBER
13258-44B00
|
$10.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
JET, NEEDLE (Y-3)
09494-00684
|
$22.12 | ||
|
Unavailable |
|||
|
#14
RING
13331-07D00
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
JET, MAIN (147.5)
09491-29012
|
$13.01 | ||
|
Unavailable |
|||
|
#16
PLUG, DRAIN
13247-32210
|
$13.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O RING, DRAIN
13249-41310
|
$4.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FLOAT ASSY
13250-44C00
Superseded by 13250-13D00
|
$111.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
O RING
13374-46710
|
$4.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
O RING
13374-44080
Superseded by 13374-35C00
|
$6.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HOSE(6.5X11.5X6
13683-15A30
Superseded by 09355-65001-600
|
$11.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SCREW
13602-34390
Superseded by 02112-7516A
|
$2.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
RING
13331-12D00
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
E RING
13394-31210
|
$4.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
RING
13387-07D00
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
NEEDLE, JET (6G7-1)
13383-14A70
|
$10.18 | ||
|
Unavailable |
|||
|
#27
FILTER
13236-12C00
|
$10.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
SCREW, DRAIN
13247-02340
|
$5.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
JET, PILOT (47.5)
09492-47013
|
$9.97 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
WASHER
13427-38300
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
SPRING
13375-60A00
|
$7.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
ADJUSTER
13267-28A00
Superseded by 13267-14D10
|
$21.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
SCREW
13602-05129
Superseded by 02112-05127
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SEAL
13556-44B00
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
WASHER
13557-47070
|
$3.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
E RING
13617-44080
|
$2.84 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
CLAMP (L:65)
09404-06402
Superseded by 09404-06039
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
