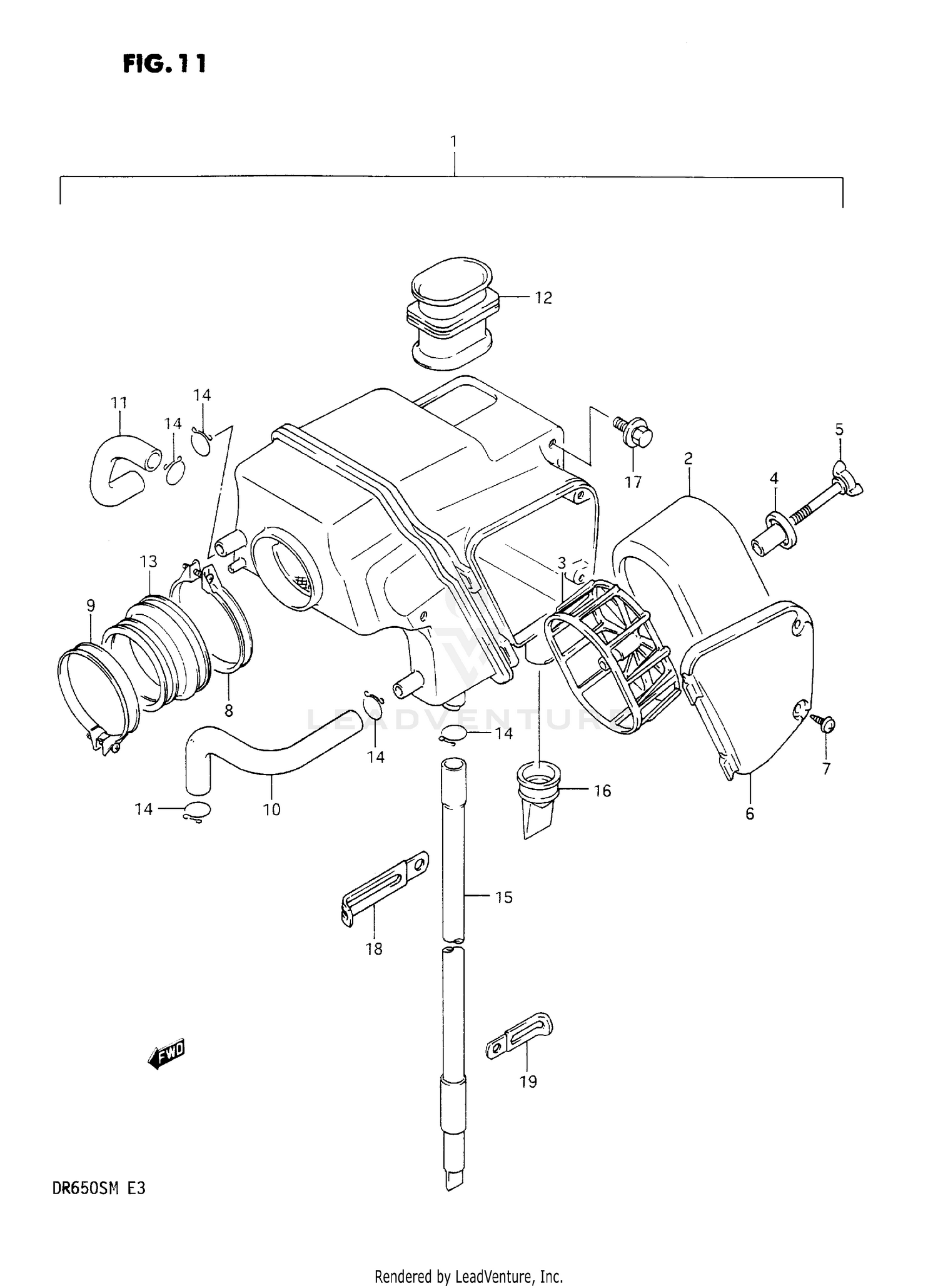

1990 Suzuki DR650SL AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NO DESCRIPTION AVAILABLE
13700-12D00
Superseded by 13700-12D20
|
$184.90 | ||
|
Unavailable |
|||
|
#2
FILTER
13780-12D00
|
$35.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
HOLDER
13791-12D00
|
$13.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPACER
13796-12D00
|
$2.04 | ||
|
Unavailable |
|||
|
#5
BOLT
13745-79120
Superseded by 01580-0650A
|
$2.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CAP
13740-12D00
|
$19.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW
02142-05164
Superseded by 02142-0516A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CLAMP
09402-74207
Superseded by 09402-74208
|
$6.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
CLAMP
09402-64208
Superseded by 09402-64203
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
TUBE, BREATHER
13851-12D00
Superseded by 13851-12D10
|
$24.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
TUBE, CONNECTING
13771-12D00
|
$17.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
TUBE, INLET
13891-12D00
|
$19.85 | ||
|
Unavailable |
|||
|
#13
TUBE, OUTLET
13881-12D00
|
$18.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CLIP
09401-14301
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
TUBE, DRAIN
13870-12D00
Superseded by 13870-11458
|
$22.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CAP, DRAIN
13878-12D00
|
$4.80 | ||
|
Unavailable |
|||
|
#17
BOLT (6X14)
09116-06151
|
$2.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLAMP
09404-08403
Superseded by 09404-08420
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP (L:65)
09404-06401
Superseded by 09404-06039
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
