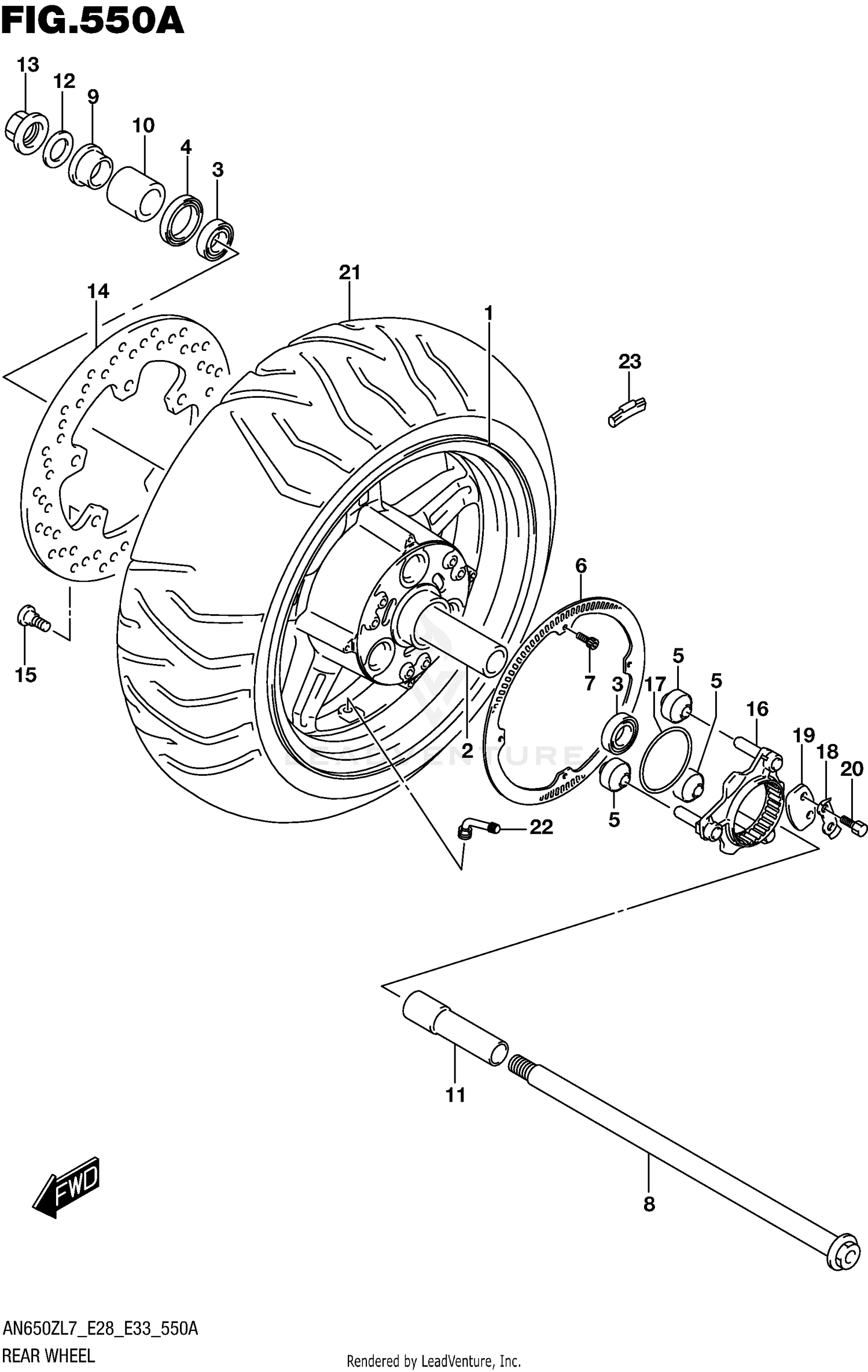

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE REAR WHEEL OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, REAR (14M/CXMT4.50)
64111-10G20-019
|
$799.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
(BLACK)
64111-10G20-019
|
$799.26 | ||
|
Unavailable |
|||
|
#2
SPACER, REAR HUB BEARING
64731-10G00
|
$35.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BEARING
08123-62047
Superseded by 08123-6204B
|
$17.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
OIL SEAL (28X47X7)
64841-26J00
|
$8.24 | ||
|
Unavailable |
|||
|
#5
BUSH
09319-12062
|
$13.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
RING, SPEED SENSOR RR
64162-10G00
|
$209.43 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT
07130-0512A
|
$2.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
AXLE, REAR
64711-10G00
|
$79.37 | ||
|
Unavailable |
|||
|
#9
SPACER, REAR AXLE RH NO.2
64741-10F00
|
$21.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SPACER, REAR AXLE RH NO.1
64751-10G10
|
$13.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPACER, REAR AXLE LH
64772-10G00
|
$35.89 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
WASHER
08322-0118B
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
NUT
08319-3118A
|
$20.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
DISC, REAR BRAKE
69211-10G20
|
$139.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
BOLT (8X21)
09106-08160
|
$3.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
JOINT ASSY, REAR HUB DRIVEN
64680-10G20
|
$245.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
O RING (D:2.1,ID:65)
09280-65003
|
$3.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER
09169-06030
|
$2.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
WASHER, THRUST
64677-10G00
|
$6.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT (6X16)
09119-06049
|
$1.48 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
TIRE, REAR
65110-10G10
|
$383.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
(160/60R14M/C 65H)
65110-10G10
|
$383.32 | ||
|
Unavailable |
|||
|
#22
VALVE ASSY, WHEEL RIM (PVR100
43130-39H00
|
$51.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23-1
BALANCER, WHEEL NO.1
43222-73H20
|
$3.71 | ||
|
Unavailable |
|||
|
#23-2
BALANCER, WHEEL NO.2
43224-73H20
|
$4.13 | ||
|
Unavailable |
|||
|
#23-3
BALANCER, WHEEL NO.3
43226-73H20
|
$5.16 | ||
|
Unavailable |
|||
