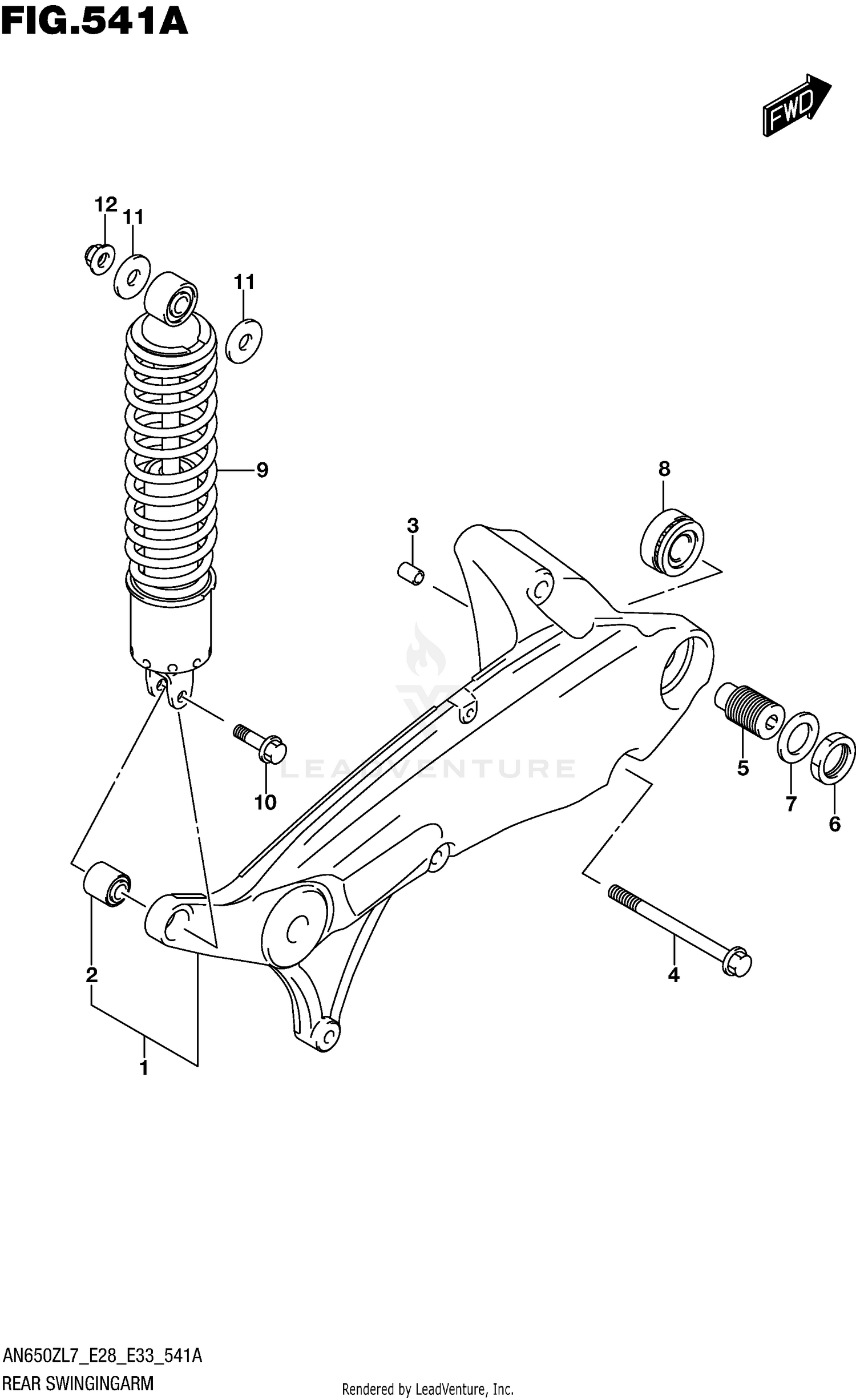

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE REAR SWINGINGARM OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR
61000-10G20-YD8
|
$799.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
(SILVER)
61000-10G20-YD8
|
$799.13 | ||
|
Unavailable |
|||
|
#2
.BUSH (10.2X22.3X20)
09319-10032
|
$7.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN, CRANKCASE
11319-33E50
|
$5.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT (10X95)
09103-10299
|
$4.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT, PIVOT RH
61213-24A00
|
$36.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
NUT
09140-24007
|
$3.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER (24X42X1.2)
09160-24034
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING (17X40X13.25)
09265-17012
|
$58.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
ABSORBER ASSY, REAR SHOCK
62100-10G21-019
|
$301.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
(BLACK)
62100-10G21-019
|
$301.08 | ||
|
Unavailable |
|||
|
#10
BOLT, LOWER
62313-40B00
|
$3.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER (10.5X30X2.3)
09160-10501
|
$2.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT
08319-3110A
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
