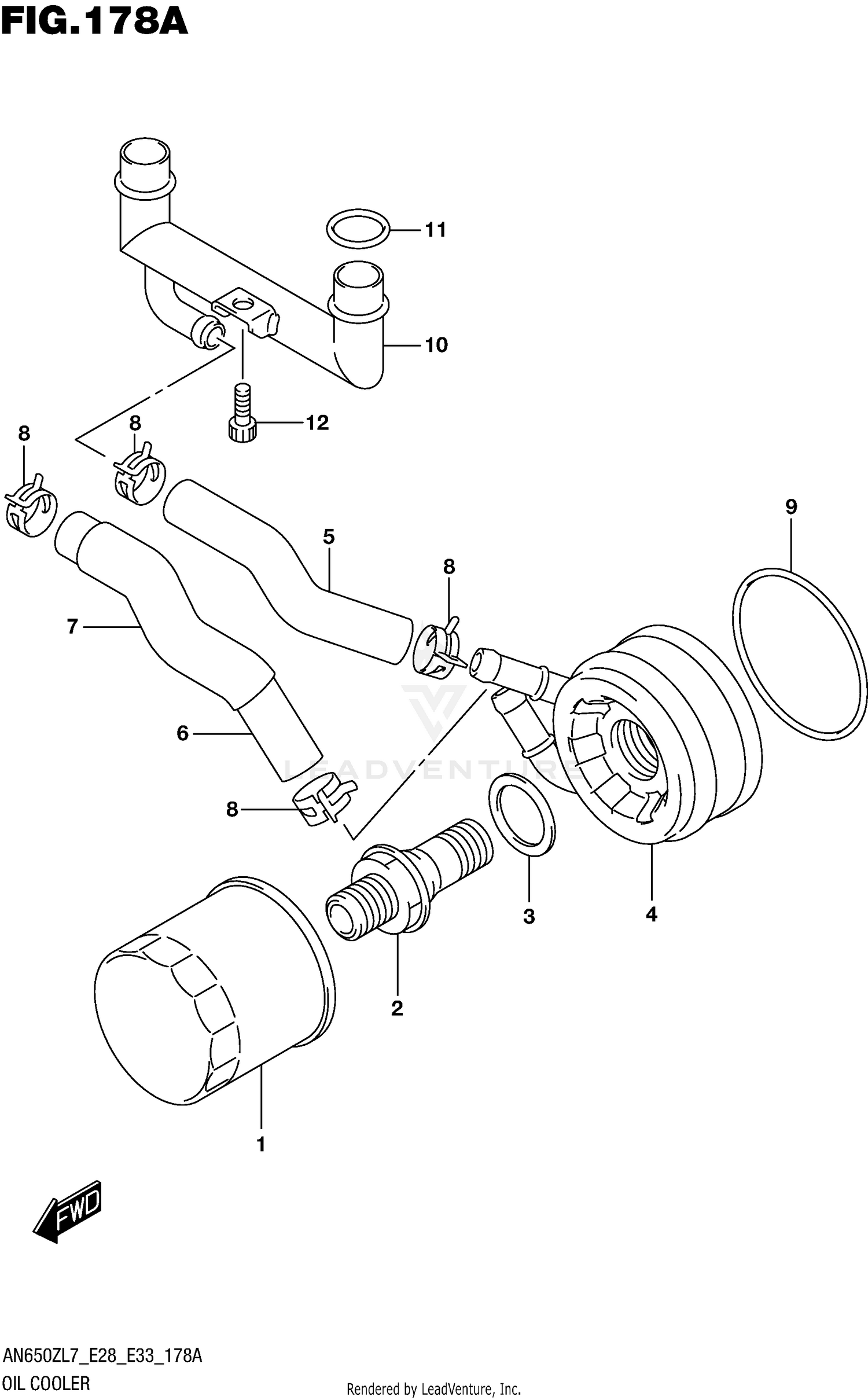

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE OIL COOLER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FILTER, ENGINE OIL
16510-07J00
|
$14.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
BOLT, COOLER UNION
16591-02F00
|
$43.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SHIM (25X34X0.7)
09181-25160
|
$2.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
COOLER ASSY, OIL
16600-10G00
|
$572.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HOSE, OIL COOLER IN
16461-10G00
|
$17.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HOSE, OIL COOLER OUT
16471-10G00
|
$17.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PROTECTOR, HOSE HEAT
16479-10G00
|
$5.37 | ||
|
Unavailable |
|||
|
#8
CLIP
09401-16407
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
O RING (D:3.1,ID:63.9)
09280-64003
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
PIPE, WATER
17880-10G00
|
$57.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
O RING (D:3.2,ID:17.8)
09280-18008
Superseded by 09280-18009
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT (6X12)
09106-06075
|
$2.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
