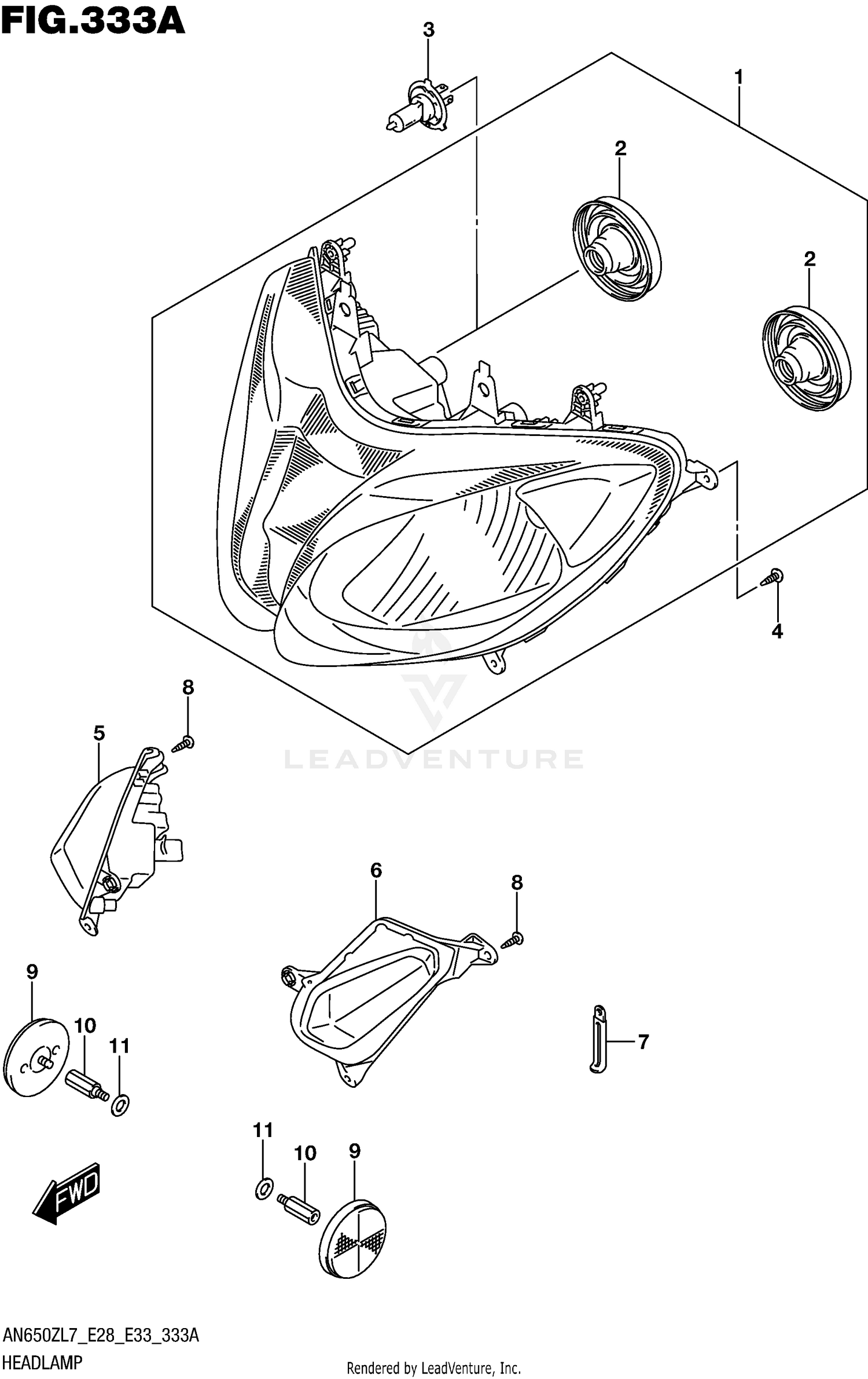

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE HEADLAMP OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD LAMP ASSY
35100-26J00-999
|
$500.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
.BULB COVER
35179-26J00
|
$16.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BULB (12V60/55W,H4)
09471-12182
|
$65.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SCREW
03541-0516A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
LAMP ASSY, FRONT POSITION RH
36101-26J00
|
$87.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
LAMP ASSY, FRONT POSITION LH
36102-26J00
|
$88.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CLAMP (L:45)
09404-06429
|
$1.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW
03541-0416A
|
$1.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
REFLEX REFLECTOR ASSY, FR SID
35950-14A11
|
$15.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT
09119-06109
|
$11.69 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
WASHER (8.5X18X1)
09160-08043
|
$1.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
