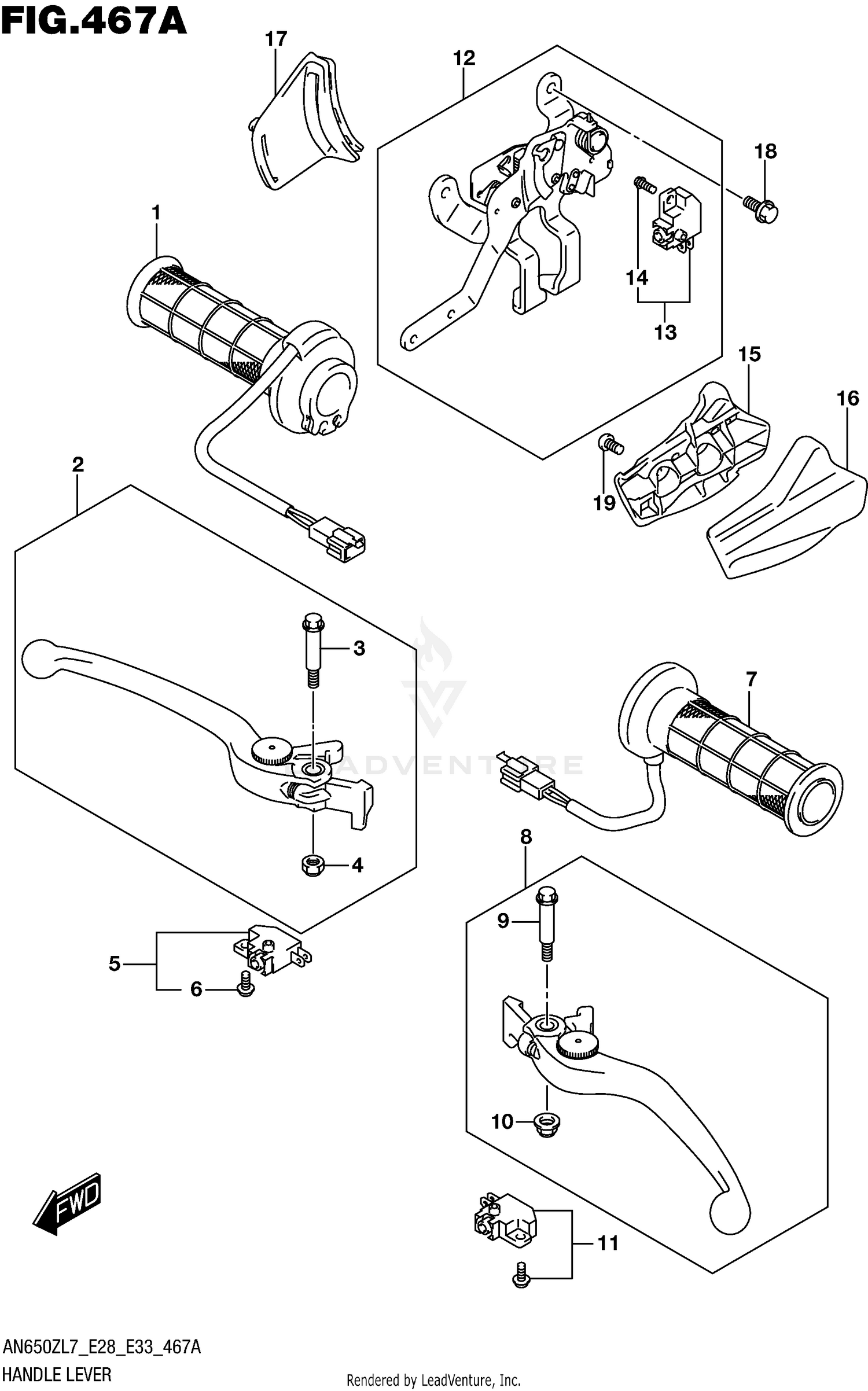

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE HANDLE LEVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEATER ASSY, THROTTLE GRIP
57110-05H21
|
$231.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
LEVER ASSY, FRONT BRAKE
57300-10G32
|
$47.73 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
.BOLT, PIVOT
57431-17H02
|
$7.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.NUT
08319-2106A
|
$1.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SWITCH ASSY,FRONT BRAKE
57460-14J01
Superseded by 57460-14J02
|
$39.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
.SCREW
57465-17C00
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HEATER ASSY, GRIP LH
57210-05H10
|
$181.67 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
LEVER ASSY, REAR BRAKE
57500-10G32
|
$71.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
.BOLT, PIVOT
57431-17H02
|
$7.35 | ||
|
Unavailable |
|||
|
#10
.NUT
08319-2106A
|
$1.88 | ||
|
Unavailable |
|||
|
#11
SWITCH ASSY,RR BRAKE
57560-14J01
Superseded by 57560-14J02
|
$39.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
LEVER ASSY, BRAKE LOCK
57800-26J00
|
$158.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SWITCH ASSY,FRONT BRAKE
57460-14J01
Superseded by 57460-14J02
|
$39.82 | ||
|
Unavailable |
|||
|
#14
..SCREW
57465-17C00
|
$1.94 | ||
|
Unavailable |
|||
|
#15
KNOB, BRAKE LOCK
57821-26J00
|
$8.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16-1
GARNISH, BRAKE LOCK KNOB
57822-26J00-PGZ
|
$27.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16-1
(GRAY)
57822-26J00-PGZ
|
$27.52 | ||
|
Unavailable |
|||
|
#16-2
GARNISH, BRAKE LOCK KNOB
57822-26J00-RB5
|
$27.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16-2
(WHITE)
57822-26J00-RB5
|
$27.04 | ||
|
Unavailable |
|||
|
#16-3
GARNISH, BRAKE LOCK KNOB
57822-26J00-YKV
|
$22.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16-3
(BLACK)
57822-26J00-YKV
|
$22.65 | ||
|
Unavailable |
|||
|
#17
GROMMET, LEVER SEAL
57951-26J00
|
$11.95 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT
01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW
02112-0508A
|
$1.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
