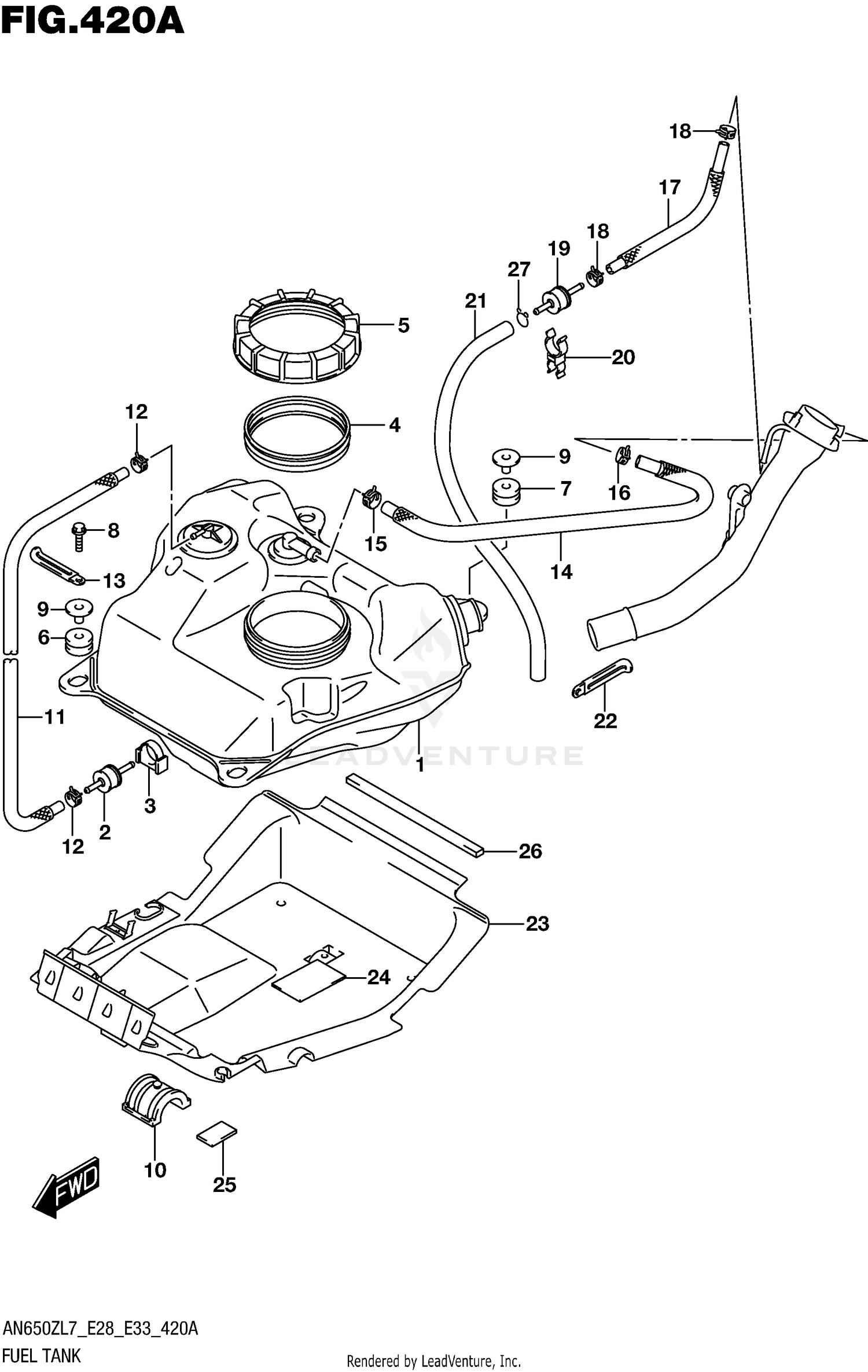

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE FUEL TANK OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK, FUEL
44110-10G50
|
$617.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
VALVE, CHECK
85451-75100
|
$48.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CUSHION, CHECK VALVE
44884-10G00
|
$4.12 | ||
|
Unavailable |
|||
|
#4
PACKING, FUEL PUMP
44596-26J00
|
$29.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RETAINER, FUEL PUMP
44597-26J00
|
$26.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUSHION, FRONT
44511-10G00
|
$3.52 | ||
|
Unavailable |
|||
|
#7
CUSHION, REAR
44511-10G10
|
$3.52 | ||
|
Unavailable |
|||
|
#8
SCREW
02162-0625A
|
$1.74 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER,FUEL TANK
44512-10G00
|
$5.32 | ||
|
Unavailable |
|||
|
#10
CUSHION, LOWER
44541-10G00
|
$8.72 | ||
|
Unavailable |
|||
|
#11
HOSE, FUEL TANK & CHECK VALVE
44434-10GA0
|
$50.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CLIP
09401-09403
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
HOSE, AIR VENT
44424-10G10
|
$58.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLIP
09401-20405
|
$3.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CLIP
09401-18404
|
$1.93 | ||
|
Unavailable |
|||
|
#17
HOSE, CHECK VALVE
44425-10GA0
|
$24.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CLIP
09401-09403
|
$2.00 | ||
|
Unavailable |
|||
|
#19
VALVE, CHECK
44240-10G00
|
$53.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP
09408-00140
|
$5.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HOSE, VALVE
44426-10G00
|
$12.57 | ||
|
Unavailable |
|||
|
#22
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$1.71 | ||
|
Unavailable |
|||
|
#23
COVER, FUEL TANK LOWER
44271-10G10
|
$82.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CUSHION, NO.1
44542-10G00
|
$9.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
CUSHION, NO.2
44543-10G00
|
$5.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
CUSHION, LOWER COVER
44276-10G00
|
$5.13 | ||
|
Unavailable |
|||
|
#27
CLIP
09401-09101
|
$1.35 | ||
|
Unavailable |
|||
