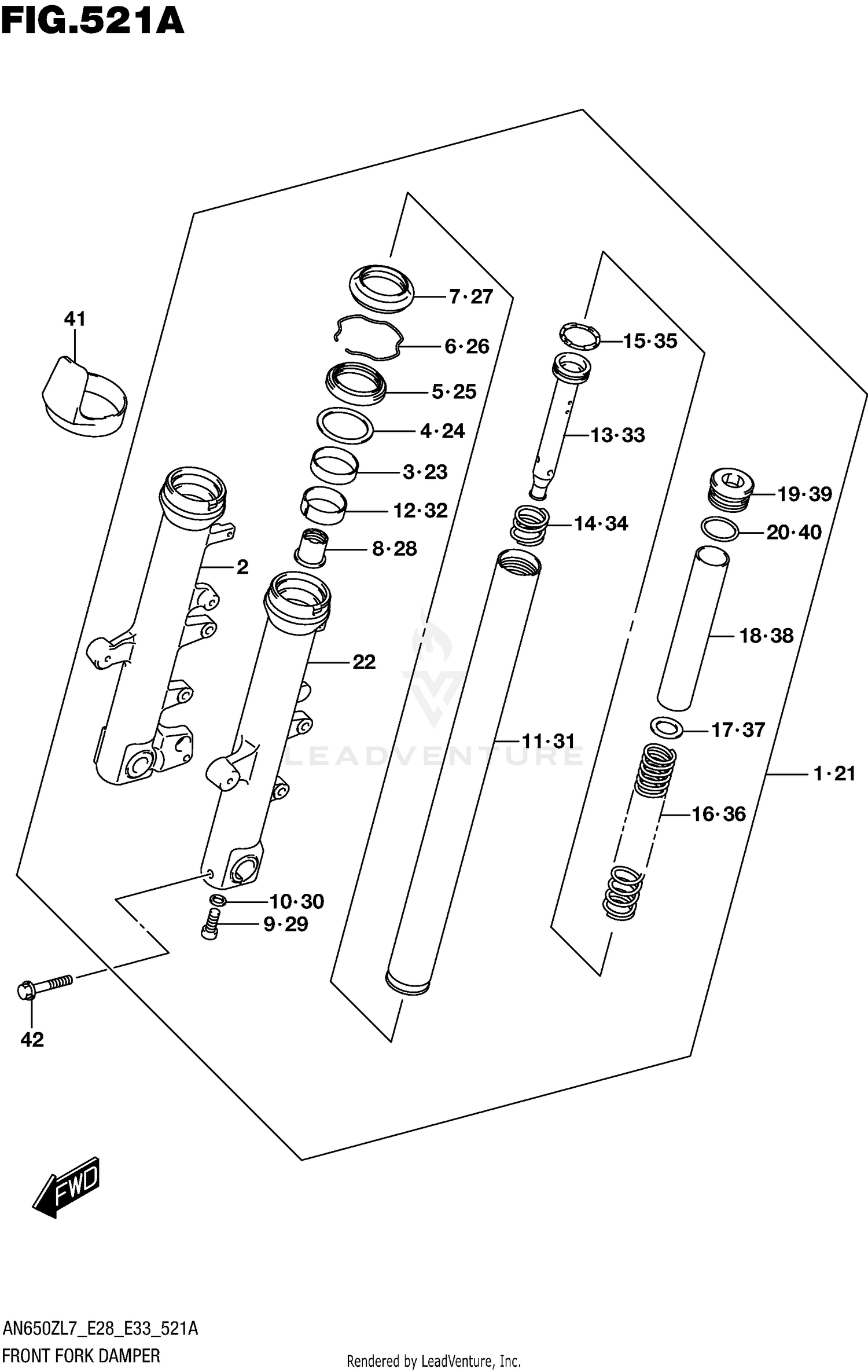

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE FRONT FORK DAMPER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR
51103-10GB0-YTA
Superseded by 51103-10GB1-YTA
|
$612.55 | ||
|
Unavailable |
|||
|
#1
DAMPER ASSY,FR
51103-10GB0-YTA
Superseded by 51103-10GB1-YTA
|
$612.55 | ||
|
Unavailable |
|||
|
#2
.TUBE, OUTER RH
51131-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#2
(BLACK)
51131-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#3
.METAL, SLIDE
51167-26E10
|
$25.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.WASHER
51158-05A00
|
$6.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
.OIL SEAL
51153-10G50
|
$21.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
.RING, OIL SEAL STOPPER
51156-49440
|
$5.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
.SEAL, DUST
51173-14F00
|
$23.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
.PIECE, OIL LOCK
51195-33D10
|
$22.96 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
.GASKET
51148-41310
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
.BOLT
51147-16510
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
.TUBE, INNER
51110-10G00
|
$344.08 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
.PISTON
51121-33D10
|
$19.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
.CYLINDER
51146-10G90
|
$69.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
.SPRING, REBOUND
51177-10G90
|
$10.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
.RING, PISTON
51196-31F00
|
$7.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
.SPRING
51171-10G90
|
$58.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
.WASHER
51356-10D03
|
$6.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
.SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#19
.CAP
51351-10G10
|
$47.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
.O RING (D:3.5,ID:31.7)
09280-32001
|
$2.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
DAMPER ASSY,FR
51104-10GB0-YTA
Superseded by 51104-10GB1-YTA
|
$612.55 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
DAMPER ASSY,FR
51104-10GB0-YTA
Superseded by 51104-10GB1-YTA
|
$612.55 | ||
|
Unavailable |
|||
|
#22
.TUBE, OUTER LH
51141-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#22
(BLACK)
51141-10GB0-YTA
|
|||
|
Unavailable |
|||
|
#23
.METAL, SLIDE
51167-26E10
|
$25.26 | ||
|
Unavailable |
|||
|
#24
.WASHER
51158-05A00
|
$6.00 | ||
|
Unavailable |
|||
|
#25
.OIL SEAL
51153-10G50
|
$21.42 | ||
|
Unavailable |
|||
|
#26
.RING, OIL SEAL STOPPER
51156-49440
|
$5.22 | ||
|
Unavailable |
|||
|
#27
.SEAL, DUST
51173-14F00
|
$23.88 | ||
|
Unavailable |
|||
|
#28
.PIECE, OIL LOCK
51195-33D10
|
$22.96 | ||
|
Unavailable |
|||
|
#29
.BOLT
51147-16510
|
$4.49 | ||
|
Unavailable |
|||
|
#30
.GASKET
51148-41310
|
$2.00 | ||
|
Unavailable |
|||
|
#31
.TUBE, INNER
51110-10G00
|
$344.08 | ||
|
Unavailable |
|||
|
#32
.PISTON
51121-33D10
|
$19.47 | ||
|
Unavailable |
|||
|
#33
.CYLINDER
51146-10G90
|
$69.17 | ||
|
Unavailable |
|||
|
#34
.SPRING, REBOUND
51177-10G90
|
$10.52 | ||
|
Unavailable |
|||
|
#35
.RING, PISTON
51196-31F00
|
$7.25 | ||
|
Unavailable |
|||
|
#36
.SPRING
51171-10G90
|
$58.34 | ||
|
Unavailable |
|||
|
#37
.WASHER
51356-10D03
|
$6.56 | ||
|
Unavailable |
|||
|
#38
.SPACER
51176-10G10
|
$8.18 | ||
|
Unavailable |
|||
|
#39
.CAP
51351-10G10
|
$47.22 | ||
|
Unavailable |
|||
|
#40
.O RING (D:3.5,ID:31.7)
09280-32001
|
$2.01 | ||
|
Unavailable |
|||
|
#41
PROTECTOR
51201-31F00
|
$15.64 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
BOLT, LH
51166-10G10
|
$4.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
