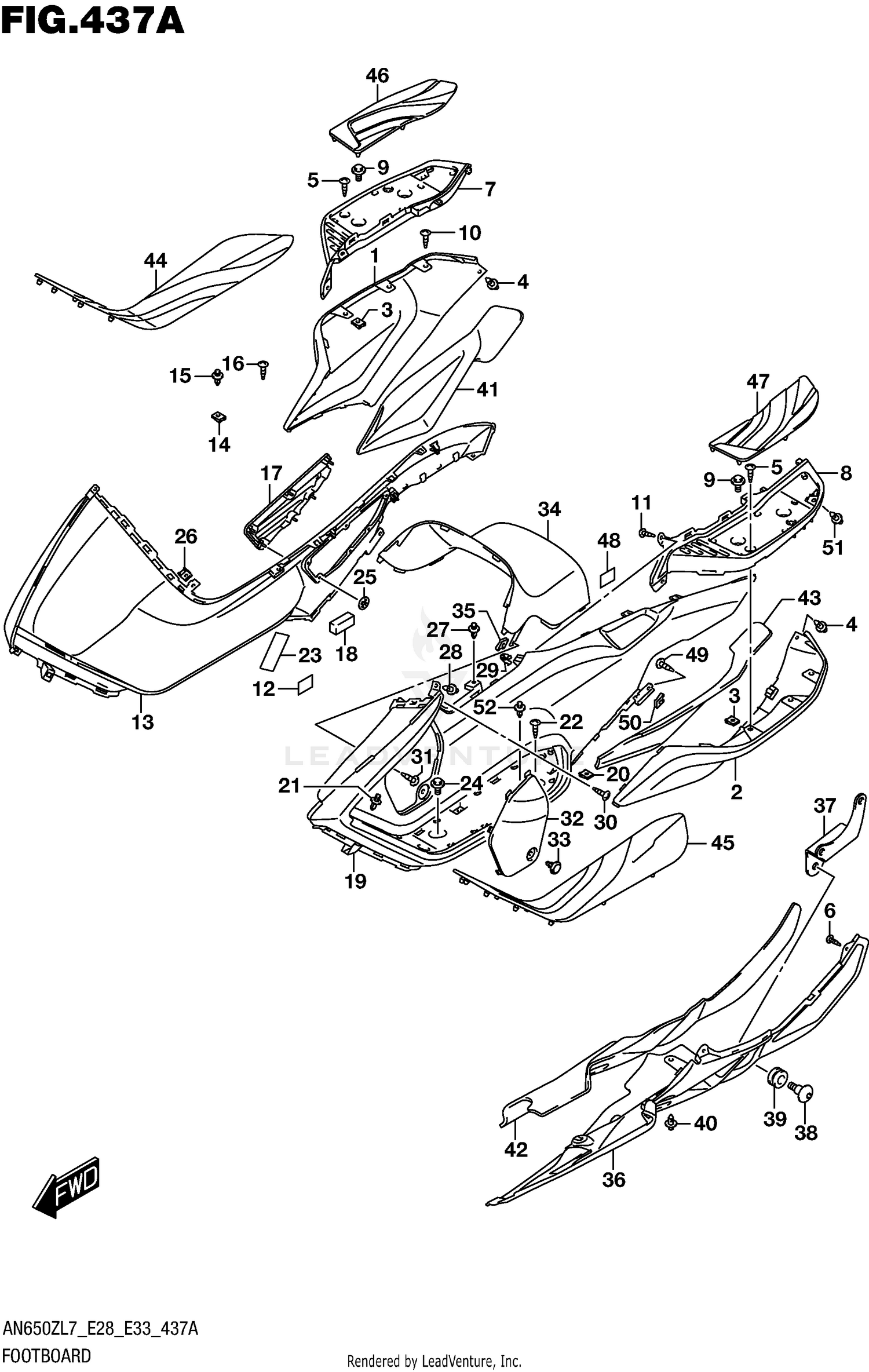

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE FOOTBOARD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FOOTBOARD,REAR
48127-26J01-YKV
Superseded by 48127-26J20-YKV
|
$94.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
FOOTBOARD,REAR
48127-26J01-YKV
Superseded by 48127-26J20-YKV
|
$94.38 | ||
|
Unavailable |
|||
|
#2
FOOTBOARD,REAR
48128-26J01-YKV
Superseded by 48128-26J20-YKV
|
$94.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
FOOTBOARD,REAR
48128-26J01-YKV
Superseded by 48128-26J20-YKV
|
$94.38 | ||
|
Unavailable |
|||
|
#3
NUT
09148-05038
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
SCREW
03541-0512A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
SCREW
03541-0516A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FOOTBOARD, REAR UPPER RH
48125-26J50
|
$25.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
FOOTBOARD, REAR UPPER LH
48126-26J50
|
$25.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT (6X14.8)
09111-06109
|
$3.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
SCREW
03541-0512A
|
$1.34 | ||
|
Unavailable |
|||
|
#11
SCREW
03541-0516A
|
$1.34 | ||
|
Unavailable |
|||
|
#12
CUSHION, FOOTBOARD NO.2
33652-13G00
|
$3.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FOOTBOARD, RH
48120-26J50
|
$135.25 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
.NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#15
.CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
|
#16
.SCREW
03541-0512A
|
$1.34 | ||
|
Unavailable |
|||
|
#17
LOUVER, AIR RH
48123-26J50
|
$8.66 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CUSHION, FOOTBOARD NO.1
48127-10G00
|
$19.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
FOOTBOARD, LH
48130-26J50
|
$142.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
.NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#21
.CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
|
#22
.SCREW
03541-0512A
|
$1.34 | ||
|
Unavailable |
|||
|
#23
SHIELD, FOOTBOARD RH
48327-26J00
|
$10.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BOLT (6X14.8)
48196-26J00
|
|||
|
Unavailable |
|||
|
#25
NUT
09148-03010
|
$2.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#27
CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
|
#28
CLIP
09409-06329
|
$2.75 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
CLIP
09409-08326
|
$2.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
SCREW
03541-0516A
|
$1.34 | ||
|
Unavailable |
|||
|
#31
SCREW
03541-0516A
|
$1.34 | ||
|
Unavailable |
|||
|
#32
LID,MAINTENANCE
48191-26J50
Superseded by 48191-26J51
|
$17.88 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
CLIP, MAINTENANCE LID
94479-35F00
|
$5.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
COVER, CENTER
48124-26J50
|
$38.52 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#36
COVER, UNDER CTR
48138-26J50
|
$78.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
BRACKET, UNDER COVER
48330-10G00
|
$11.60 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
BOLT (6X20)
09139-06190
|
$4.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
CUSHION
09320-09016
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
CLIP
09409-07333
|
$2.26 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
CUSHION,RR FOOT
48313-26J00
Superseded by 48313-26J01
|
$11.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
CUSHION, UNDER COVER LOWER
48316-26J00
|
$17.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
CUSHION, REAR FOOTBOARD LOWER
48323-26J00
|
$7.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
MAT,FLOOR FR RH
48211-26J00-291
Superseded by 48211-26JA0-291
|
$26.66 | ||
|
Unavailable |
|||
|
#45
MAT,FLOOR FR LH
48221-26J00-291
Superseded by 48221-26JA0-291
|
$31.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
MAT, FLOOR REAR RH (BLACK)
48231-26J00-291
|
$12.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
MAT,FLOOR RR LH
48241-26J00-291
Superseded by 48241-26JA0-291
|
$9.26 | ||
|
Unavailable |
|||
|
#48
CUSHION, FOOTBOARD NO.3
17798-29E30
|
$6.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
SCREW
03541-0516A
|
$1.34 | ||
|
Unavailable |
|||
|
#50
NUT
09148-05038
|
$1.94 | ||
|
Unavailable |
|||
|
#51
CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
|
#52
CLIP (BLACK)
09409-06314-5PK
|
$2.63 | ||
|
Unavailable |
|||
