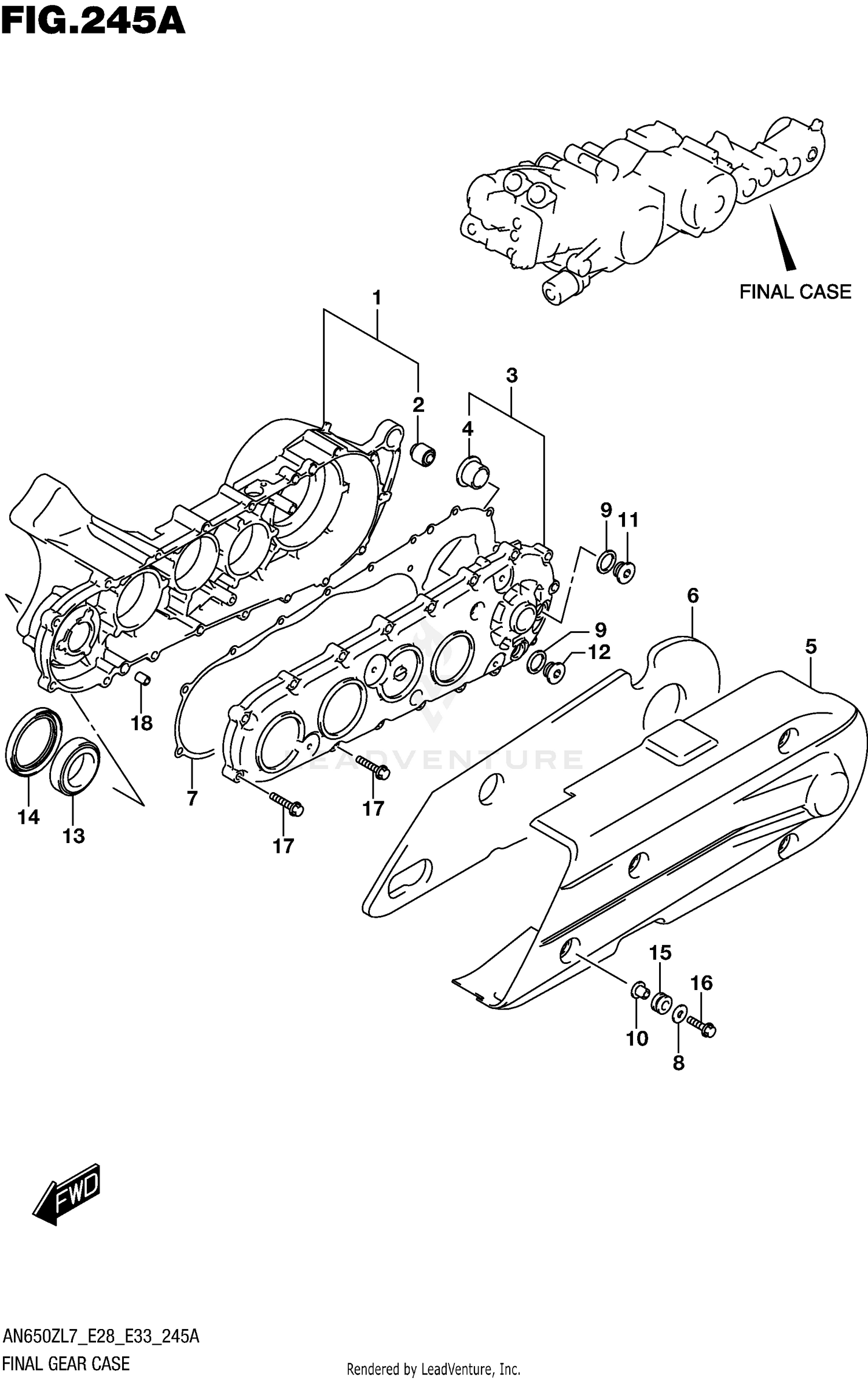

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE FINAL GEAR CASE OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASE, FINAL GEAR RH
27450-10G10
|
$511.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
.BUSH (10.2X22.3X20)
09319-10032
|
$7.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
CASE, FINAL GEAR LH
27460-26J00
|
$273.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.BUSH
27433-24A00
|
$21.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER, FINAL GEAR CASE
27471-10G00
|
$129.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
CUSHION, FINAL GEAR CASE
27472-10G01
|
$42.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, FINAL GEAR CASE
27551-10G00
|
$21.05 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER (6.5X18X1.6)
09160-06109
|
$1.13 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GASKET (18X24.2X2)
09168-18003
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER
09169-06062
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PLUG
09248-18012
|
$5.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLUG
09248-18013
|
$9.78 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BEARING (35X55X14)
09265-35012
|
$70.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SEAL,OIL(53X68.
09283-53002
Superseded by 09283-53003
|
$10.73 | ||
|
Unavailable |
|||
|
#15
CUSHION
09320-09016
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
BOLT
01547-0625B
|
$2.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BOLT
01547-0630A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PIN
04211-09149
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
