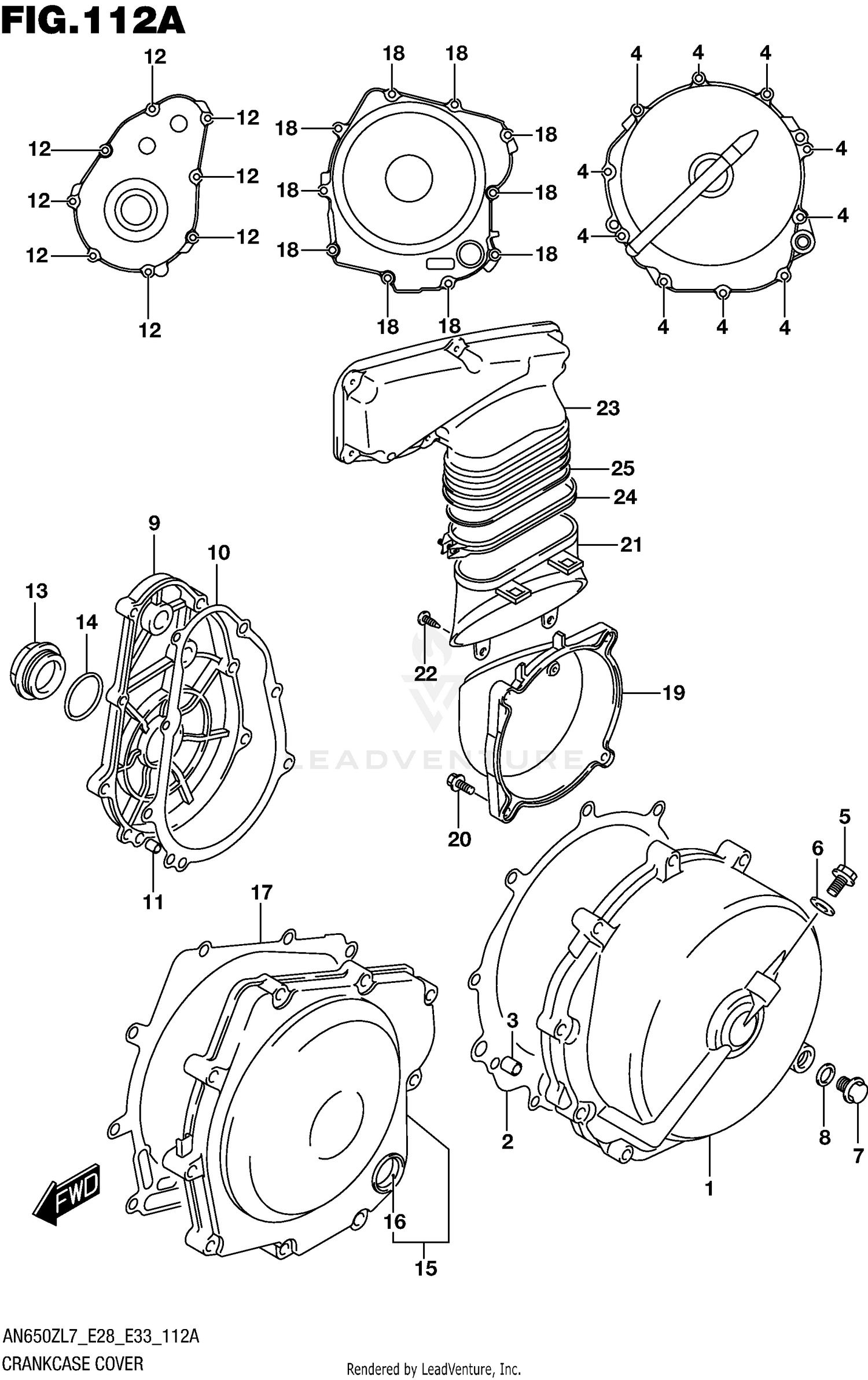

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE CRANKCASE COVER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11341-10G00
|
$207.98 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET, CLUTCH COVER
11482-10G00
|
$15.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
PIN
04211-09149
|
$1.62 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT
01547-0630A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BOLT
01550-0812A
|
$2.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET (8.2X14X1)
09168-08016
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PLUG (12X10)
09247-12006
|
$2.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GASKET (12.1X16.2X3.7)
09168-12002
|
$1.57 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
COVER, STARTER CLUTCH
11381-10G00
|
$84.25 | ||
|
Unavailable |
|||
|
#10
GASKET, STARTER CLUTCH COVER
11491-10G00
|
$8.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIN
04211-09149
|
$1.62 | ||
|
Unavailable |
|||
|
#12
BOLT
01547-0625A
|
$2.00 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PLUG
09259-36021
|
$13.77 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING (D:3.1,ID:32.7)
09280-33004
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER, MAGNETO
11350-10G00
|
$140.89 | ||
|
Unavailable |
|||
|
#16
.LENS, OIL LEVEL
11971-33210
|
$18.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET, MAGNETO COVER
11483-10G00
|
$13.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT
01547-0630A
|
$2.28 | ||
|
Unavailable |
|||
|
#19
DUCT, BELT COOLING NO.1
11371-10G00
|
$28.70 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT
01547-0625A
|
$2.00 | ||
|
Unavailable |
|||
|
#21
DUCT, BELT COOLING NO.2
11372-10G00
|
$13.17 | ||
|
Unavailable |
|||
|
#22
SCREW
03141-0512A
|
$1.44 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
DUCT, BELT COOLING NO.3
11373-26J00
|
$27.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLAMP, BELT COOLING DUCT
11374-10G00
|
$5.39 | ||
|
Unavailable |
|||
|
#25
GUIDE, BELT COOLING DUCT NO.3
11375-10G00
|
$2.83 | ||
|
Unavailable |
|||
