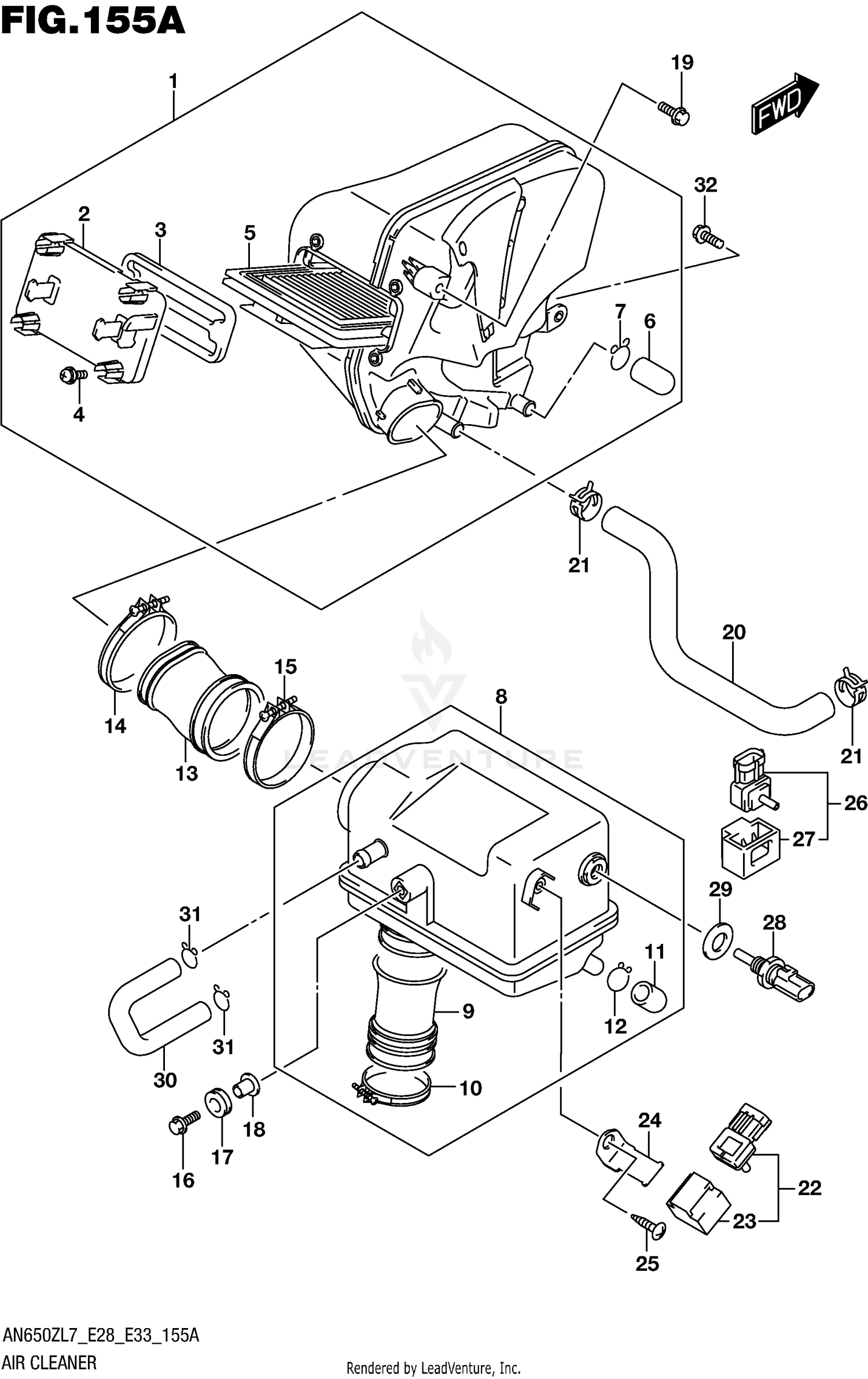

2017 Suzuki BURGMAN 650 AN650A ABS EXECUTIVE AIR CLEANER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Luggage
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLEANER ASSY, AIR
13701-10G01
|
$280.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
.CAP, AIR CLEANER
13741-10G00
|
$15.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
.GASKET, CAP
13747-10G00
|
$5.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.SCREW
02142-0512A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
.FILTER
13780-10G00
|
$45.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
.PLUG
13878-10G00
Superseded by 13878-10G01
|
$5.06 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
.CLIP
09401-14101
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CHAMBER ASSY, AIR
13710-10G00
|
$82.84 | ||
|
Unavailable |
|||
|
#9
.TUBE, OUTLET
13881-10G00
|
$8.36 | ||
|
Unavailable |
|||
|
#10
.CLAMP
13826-39H00
|
|||
|
Unavailable |
|||
|
#11
.PLUG
13878-10G00
Superseded by 13878-10G01
|
$5.06 | ||
|
Unavailable |
|||
|
#12
.CLIP
09401-14101
|
$2.29 | ||
|
Unavailable |
|||
|
#13
TUBE,JOINT
13739-10G00
Superseded by 13739-10G01
|
$18.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CLAMP
13826-26J00
|
|||
|
Unavailable |
|||
|
#15
CLAMP
13826-26J10
|
|||
|
Unavailable |
|||
|
#16
BOLT (6X25)
09116-06150
|
$2.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CUSHION
09320-10501
|
$5.28 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPACER (6.5X10X11.6)
09180-06319
|
$3.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT
01550-0612A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
TUBE, BREATHER
13851-26J00
|
|||
|
Unavailable |
|||
|
#21
CLIP
09401-16401
|
$3.10 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SENSOR,BOOST
15630-29G40
|
$269.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
.COVER
15625-29G40
|
$11.11 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
BRACKET, BOOST SENSOR
15629-10G00
|
$4.72 | ||
|
Unavailable |
|||
|
#25
SCREW
03541-0512A
|
$1.34 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
SENSOR,BOOST
15630-29G40
|
$269.54 | ||
|
Unavailable |
|||
|
#27
.COVER
15625-29G40
|
$11.11 | ||
|
Unavailable |
|||
|
#28
SENSOR
13650-49X00
|
$93.40 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
GASKET (12X17X1)
09168-12017
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
HOSE, STARTER AIR
13697-10G00
|
$6.10 | ||
|
Unavailable |
|||
|
#31
CLIP
09401-15101
|
$2.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT (6X16)
09116-06130
|
$2.07 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
