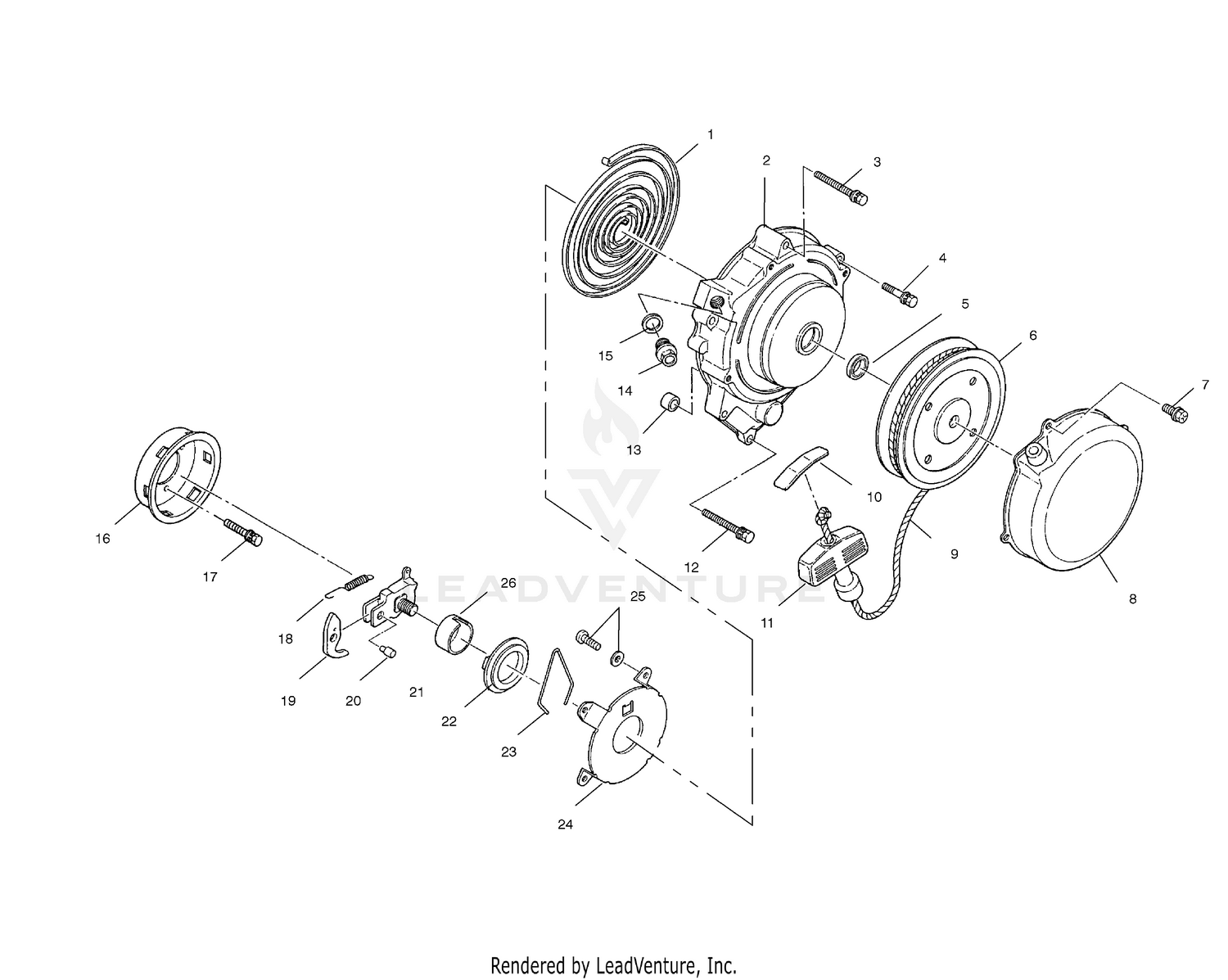

2001 Polaris XPLORER 4X4 RECOIL STARTER - A01AG25CA (4963866386C013) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPRING, SPIRAL
3083815
|
$56.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
STARTER,RECOIL,COMPL.
3083924
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CASE,STARTER,B UNIT
3083911
|
$339.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT(10)
3082030
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT&WASHER ASM.
3082228
|
$2.59 | ||
|
Unavailable |
|||
|
#5
GROMMET
3083817
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
REEL, COMPL.
3083814
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BOLT, FLANGE
3083826
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CASE,STARTER,COMPL.
3083914
|
$205.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
ROPE,100 FT,NYL.STARTER
3083828
Superseded by 2870621
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
ROPE,100 FT,NYL.STARTER
2870621
|
$34.99 | ||
|
Unavailable |
|||
|
#10
NOT AVAILABLE
3083660
Superseded by 9999999
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
KNOB, STARTER
3083659
|
$44.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT&WASHER
3083729
|
$3.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BUSHING, STARTER
3083669
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PLUG Substituted by 3086749
3086749
Superseded by 3083453
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
GASKET
3082956
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PULLEY, STARTING
3083915
|
|||
|
Unavailable |
|||
|
#17
BOLT,(10)
3081665
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPRING, RETURN
3083827
|
$14.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
RATCHET
3083819
|
$19.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PIN, RATCHET
3083820
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HOOK, SPRING
3083818
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
GUIDE,RATCHET
3083821
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SPRING,FRICTION
3083912
|
$31.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CASE, SPRING
3083925
|
$56.99 | ||
|
Unavailable |
|||
|
#25
SCREW & WASHER
3084176
|
$4.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
GUIDE, COMPL.
3083913
|
$64.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
