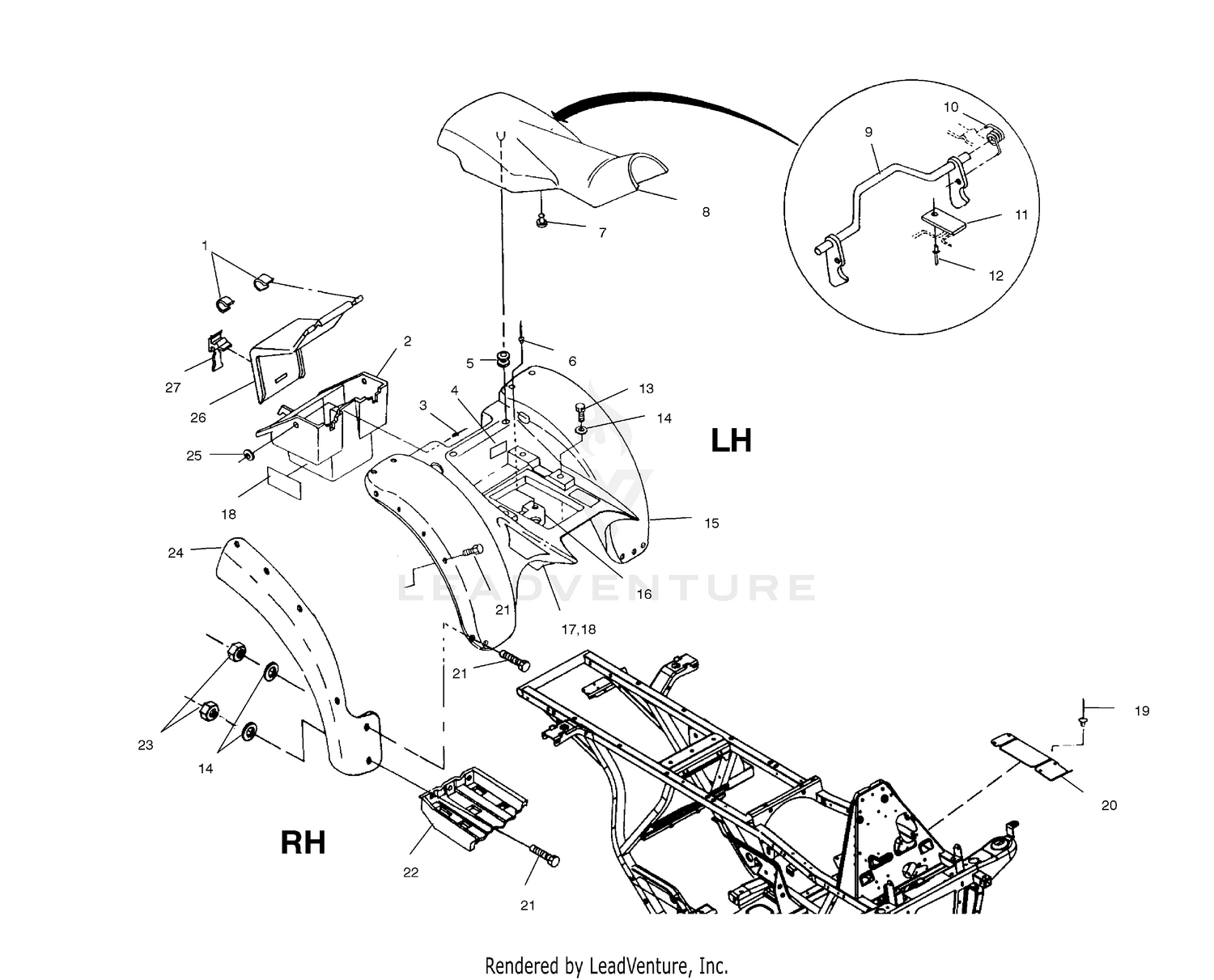

2001 Polaris XPLORER 4X4 REAR CAB - A01AG25CA (4963866386A004) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CLIP, LID HINGE(10)
7670050
|
|||
|
Unavailable |
|||
|
#2
BOX,TOOL COMP.
5430882
|
|||
|
Unavailable |
|||
|
#3
RIVET(50)
7621462
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
DECAL-2 STRK,CARB/FILTER INFO
7079901
|
|||
|
Unavailable |
|||
|
#5
Grommet
5411042
Superseded by 5412507
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
RIVET(50)
7621472
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
BUMPER-RUBBER
5412067
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
ASM-SEAT,GEN II,BLK
2682492-276
Superseded by 2682492-070
|
$494.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
COVERING-SEAT,SABLE BROWN
2681723-276
|
|||
|
Unavailable |
|||
|
#9
LATCH,SEAT
1011558
|
|||
|
Unavailable |
|||
|
#10
SPRING, LATCH
7041158
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BRACKET,LEVER RETAINER
5211033
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BLIND RIVET(50)
7621403
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW(10)
7512242
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WASHER, FLAT(10)
7555859
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CAB,REAR,MOD,GEN II,E.B. GREEN
5433424-195
|
|||
|
Unavailable |
|||
|
#16
BRKT,R.HOLDDOWN
5220880
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
FOIL, REAR CAB
5810957
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
FOIL, REAR CAB, SMALL
5810991
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
TAPE, FOIL
5810310
|
|||
|
Unavailable |
|||
|
#19
RIVET,INTERLOCK,Z(50)
7661637
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GUARD-CLUTCH, BLK
5241403-067
|
|||
|
Unavailable |
|||
|
#21
BOLT, BLACK(10)
7512282
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Foot Pad
-------
|
|||
|
Unavailable |
|||
|
#23
NUT-LOCK(10)
7542122
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
MUDFLAP-FULL,REAR,LH
5811944
|
$56.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
MUDFLAP-FULL,REAR,RH
5811945
|
$61.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
COVER-TOOL BOX,E.B. GREEN
5430769-195
|
$113.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
STRAP,TOOL COMPARTMENT
5410425
|
$9.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
