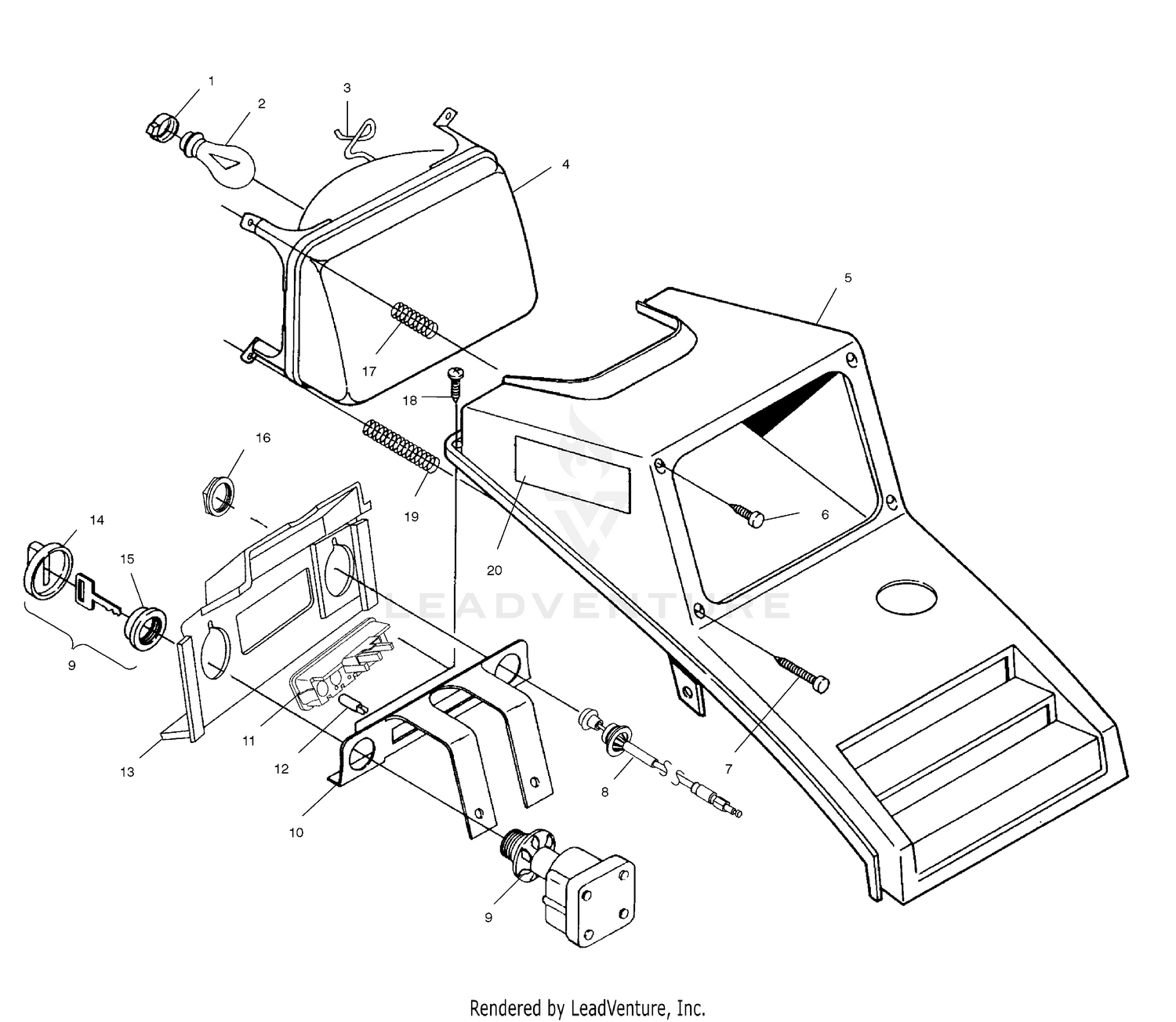

2001 Polaris XPLORER 4X4 HEADLIGHT - A01AG25CA (4963866386A012) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SOCKET,H/L.
4032066
|
|||
|
Unavailable |
|||
|
#2
BULB, H/L
4030028
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
RETAINER,H/L BULB
4032063
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
H/L ASM,W/BULBSEAL
4032065
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
COVER-OIL TANK/HEADLAMP,GREEN
5430973-195
|
|||
|
Unavailable |
|||
|
#6
Screw
4032003
Superseded by 7518157
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SCREW,ADJUST,(ATV)(10)
4032042
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
CABLE, CHOKE
7080371
|
$104.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Switch, Ignition
4110264
Superseded by 4012163
|
$124.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BLANK, KEY, SERIES 2000, 2100, 6700, 6800
4010278
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Blank, Key, Series 2200, 2300, 2700, 2800.
4010321
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BRKT, IGN. PANEL
5220965-067
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PANEL-INDICATOR,SVC,STD PVT
4010459
|
$95.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BULB-INDICATOR,HOBBS
4010416
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
PANEL-IGNITION
5433688
|
$14.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Cover-Key
5433534
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT-IGNITION SWITCH,HOBBS
5433733
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NUT
7080229
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPRING-ADJ
4032002
|
$15.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SCREW(10)
7512017
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPRING,ADJ.
4032041
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
REFLECTOR ASM,AMBER
2670134
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
