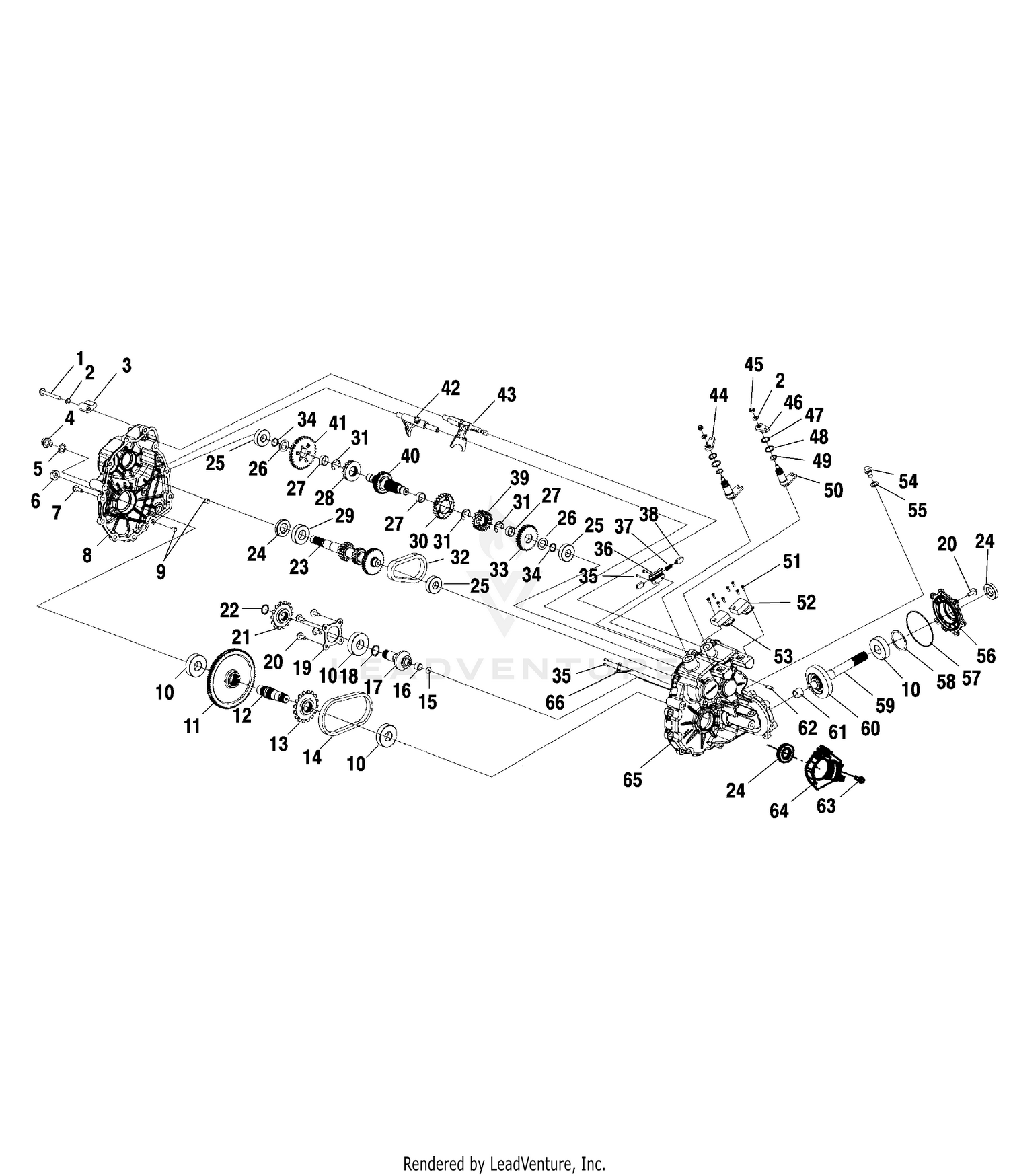

2001 Polaris XPLORER 4X4 GEARCASE - A01AG25CA (4963866386C001) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase (Incl. 1-38)(If built before 4/01/01)
1341314
|
|||
|
Unavailable |
|||
|
#
Asm., Gearcase (Incl. 1-38)(If built after 4/01/01)
1341381
|
|||
|
Unavailable |
|||
|
#1
Screw
3233734
|
$3.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Washer
3233054
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Dampener
3233735
|
$15.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Plug, Drain
3233448
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Washer
3233035
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Bushing, Pivot
3233527
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Screw
3233252
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Gearcase, LH
3233632
Superseded by 3234036
|
$354.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Pipe, Knock
3233529
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Bearing, Ball
3233020
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Gear, 100T
3233360
|
$259.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Shaft, Output
3233544
|
$159.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Sprocket, 15/26T
3233729
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Chain, Roller
3233546
|
$79.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Washer, Thrust
3233542
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Bushing, Garlock
3233541
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Shaft, Pinion 13T
3233540
|
$199.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Ring, Retaining
3233306
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Cover, Bearing
3233263
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Screw
3233539
|
$15.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Sprocket, 15/22T
3233730
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Ring, Retaining
3233537
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
Shaft, Input
3233704
|
$309.99 | ||
|
Unavailable |
|||
|
#24
Seal, Triple Lip
3233248
Superseded by 3233788
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
Seal (If built after 4/01/01)
3233788
|
$29.99 | ||
|
Unavailable |
|||
|
#25
Bearing, Ball
3233018
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Washer
3233176
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
Bearing, Needle
3233718
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
Engagement Dog, Low
3233732
|
$194.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
Bearing, Ball
3233019
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
Sprocket, 24T
3233719
|
$129.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
Ring, Retaining
3233720
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Chain, Silent
3233036
|
$79.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
Gear, 30T
3233722
|
$189.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
Ring, Retaining
3233177
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
Screw, Tapping
3233033
Superseded by 3233747
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
Screw (If built after 4/01/01)
3233747
|
$3.99 | ||
|
Unavailable |
|||
|
#36
Bracket, Interlock
3233309
|
$25.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
Spring
3233032
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
Pin, Interlock
3233308
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
Engagement Dog, High/Reverse
3233721
|
$194.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
Shaft, Reverse, 29T
3233733
|
|||
|
Unavailable |
|||
|
#41
Gear, 33T
3233731
|
|||
|
Unavailable |
|||
|
#42
Fork, Shift, Low
3233706
|
$149.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
Fork, Shift, High/Reverse
3233633
|
$159.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
Bellcrank
3233547
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
Nut, Lock
3233055
Superseded by 3233961
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
Bellcrank, High/Low/Reverse
3233153
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
RING,RETAINING BASIC,EXTERNAL 0.75
3233045
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
Washer
3233040
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
O-Ring
3233548
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
Shaft, Shift
3233549
|
$84.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
Screw, Tapping
3233691
Superseded by 3233749
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
Screw (If built after 4/01/01)
3233749
|
$4.99 | ||
|
Unavailable |
|||
|
#52
Switch, 3 Position
3233635
Superseded by 3234002
|
$144.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
Switch, 2 Position
3233617
Superseded by 3234001
|
$119.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
Plug, Oil
3233711
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#55
Washer
3233324
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#56
Cover, Snorkel
3233556
|
$39.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#57
O-Ring
3233555
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#58
Shim
3233554
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#59
Shaft, Snorkel (If built before 4/01/01)
3233723
|
|||
|
Unavailable |
|||
|
#59
Shaft, Snorkel
3233899
Superseded by 3234939
|
$149.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#60
Gear, 25T (If built after 4/01/01)
3233898
|
$288.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#61
Bushing, Garlock
3233552
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#62
Tube, Vent
3233037
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#63
Screw (If built after 4/01/01)
3233026
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#64
Guide, Chain (If built after 4/01/01)
3233897
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#65
Gearcase, RH
3233799
Superseded by 3233895
|
$354.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#65
Gearcase,RH (If built after 4/01/01)
3233895
|
$354.99 | ||
|
Unavailable |
|||
|
#66
Deflector, Oil
3233043
|
$16.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
