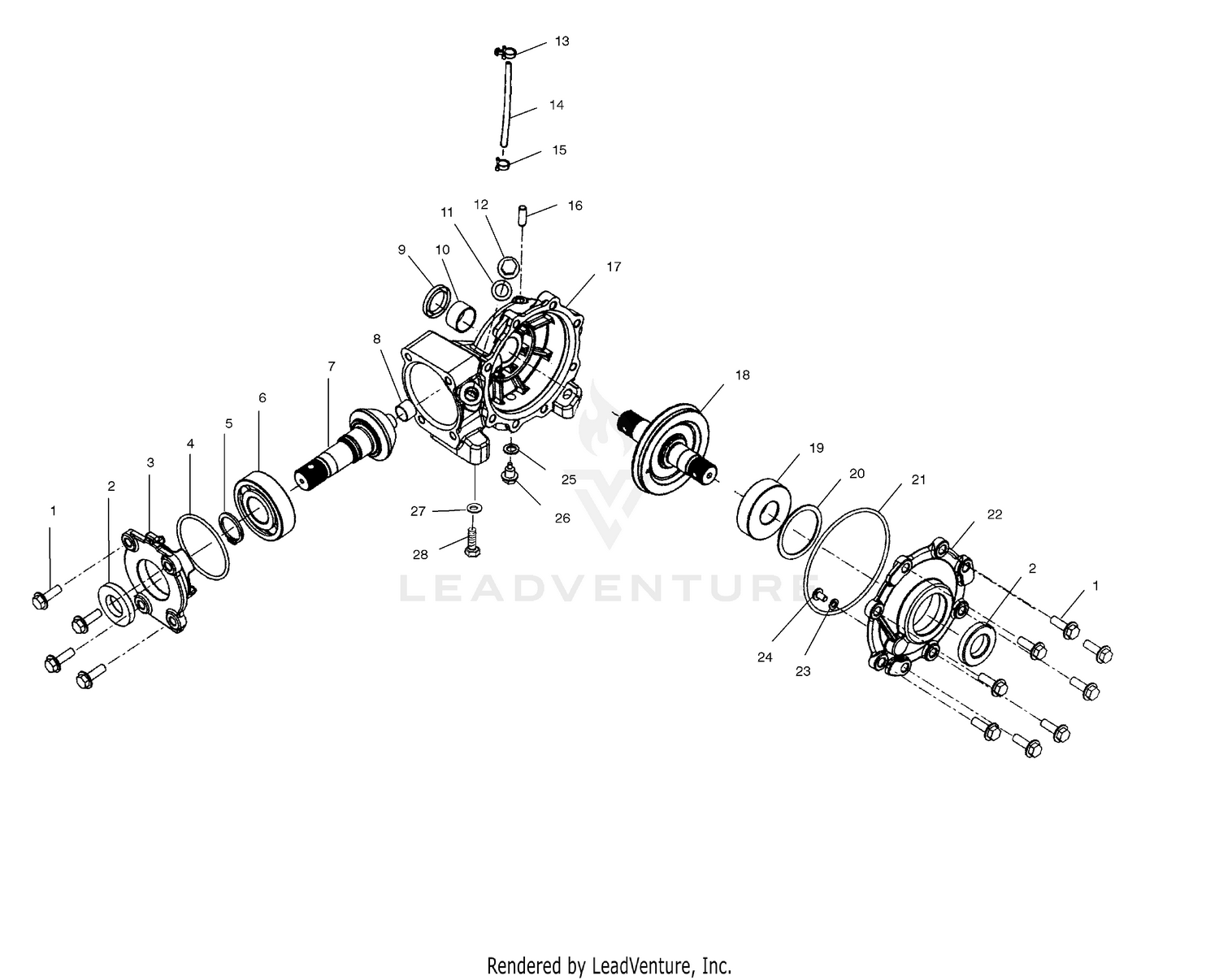

2001 Polaris XPLORER 4X4 FRONT HOUSING - A01AG25CA (4963866386A014) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
GEARCASE,FRONT,ASM.
1341323
|
$1,134.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
SCREW
3233252
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Seal, Triple Lip
3233248
Superseded by 3233788
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
INPUT COVER-FRONT HOUSING
3233701
|
$49.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
O-RING
3233700
|
$6.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
RING-RETAINING
3233699
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BEARING,BALL
3233589
|
$74.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
PINION,INPUT,14T
3233726
|
|||
|
Unavailable |
|||
|
#8
BUSHING,GARLOCK
3233541
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SEAL
3233319
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BUSHINHG-GARLOCK
3233697
|
|||
|
Unavailable |
|||
|
#11
WASHER
3233324
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLUG,OIL FILL
3233711
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CLIP,SNAP-IN
7080756
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
FUEL LINE,1/4 ID(1525 CM.)
8450003-1525
|
$69.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
CLAMP-HOSE, (LARGE GREEN)
7080307
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
TUBE,VENT
3233524
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GEARCASE
3233696
|
$341.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SHAFT,OUTPUT,29T
3233725
|
|||
|
Unavailable |
|||
|
#19
BEARING
3233020
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SHIM
3233554
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
O-RING
3233693
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
COVER,OUTPUT
3233724
|
|||
|
Unavailable |
|||
|
#23
SHIM .450 X .265
3233583
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
THRUST BUTTON
3233582
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
PLUG, WASHER
3233254
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Plug
3233253
Superseded by 3233777
|
$26.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SCREW(10)
7512492
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
WASHER(10)
7552603
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
