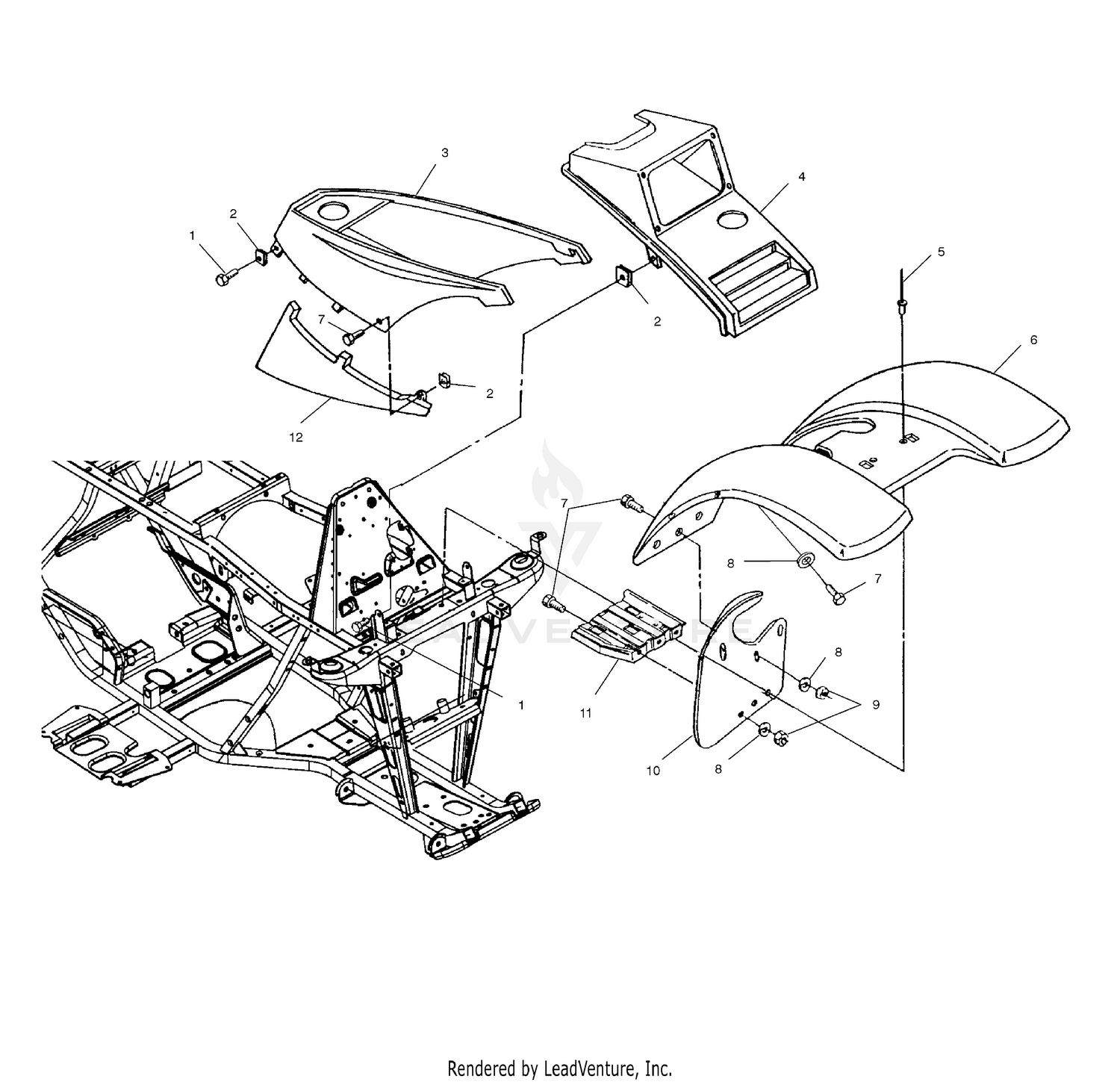

2001 Polaris XPLORER 4X4 FRONT CAB - A01AG25CA (4963866386A003) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512232
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
NUT, SPEED(10)
7670060
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
COVER,FUELTANK,E.B.GRN.
5431197-195
|
|||
|
Unavailable |
|||
|
#4
Cover, Headlamp, E.B. Green
-------
|
|||
|
Unavailable |
|||
|
#5
RIVET(50)
7621460
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
ASM-CAB,FRONT,SERVICE,EB GREEN Substituted by 2632310-195
2632130-195
|
|||
|
Unavailable |
|||
|
#7
BOLT, BLACK(10)
7512282
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER, FLAT(10)
7555859
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT-LOCK(10)
7542122
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
MUDFLAP-FRONT,LH
5811946
|
|||
|
Unavailable |
|||
|
#10
MUDFLAP,FRONT,RH
5812077
|
$43.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Foot Pad
-------
|
|||
|
Unavailable |
|||
|
#12
COVER-SIDE PANEL,LH,GEN2,EB GR
5433578-195
|
|||
|
Unavailable |
|||
|
#12
COVER-SIDE PANEL,RH,EB GREEN
5433579-195
|
|||
|
Unavailable |
|||
