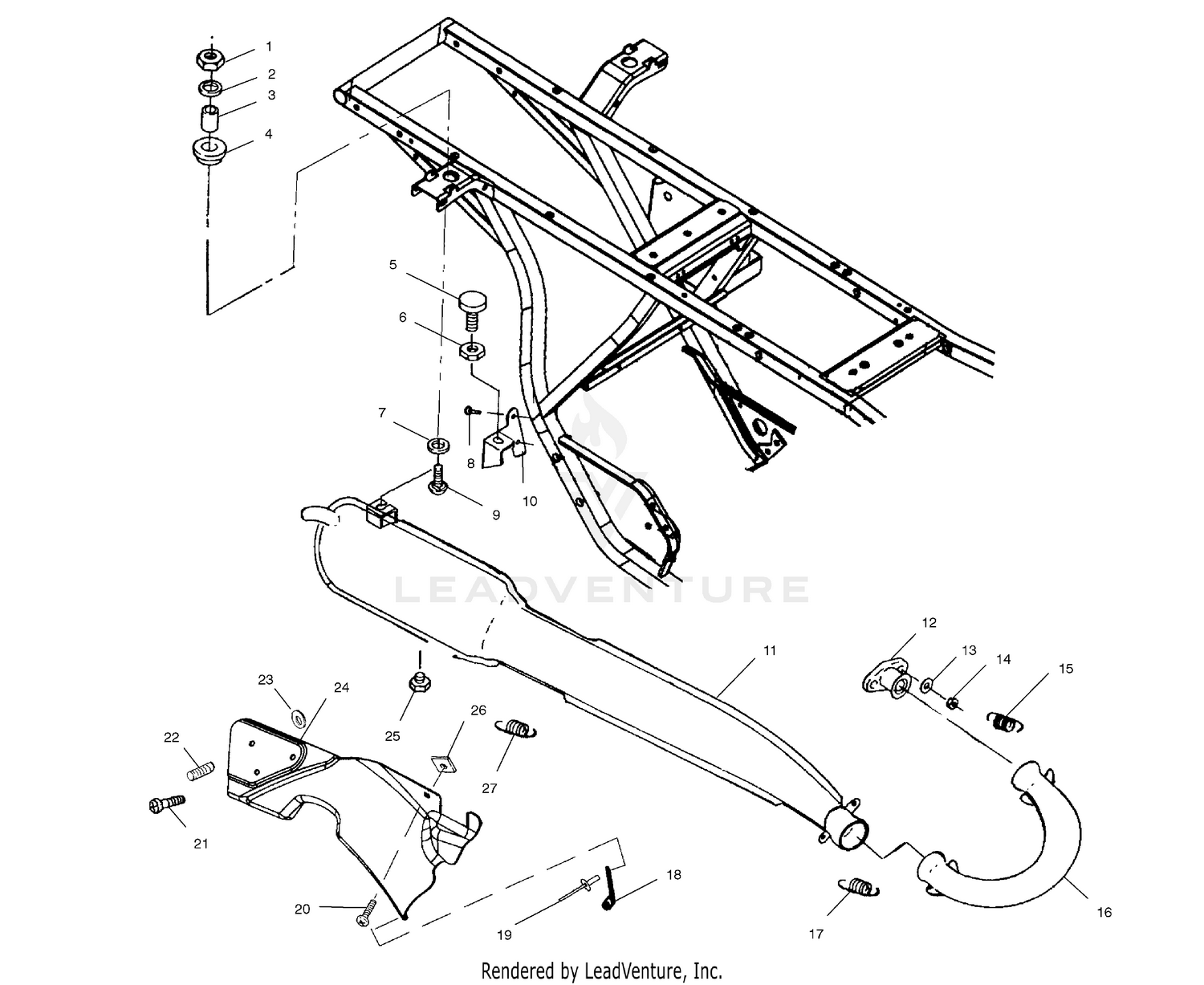

2001 Polaris XPLORER 4X4 EXHAUST SYSTEM - A01AG25CA (4963866386A008) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-5/16-18 NYLOK-Y
7542324
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
WASHER(10)
7555716
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BUSHING-RES. MT.
5010192
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Dampener, Vibration
5410241
Superseded by 5412508
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
ISOLATOR
3110064
Superseded by 3022073
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
NUT HEX(10)
7542301
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
WASHER,RUBBER
5410436
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT(10)
7512232
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT(10)
7515316
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BRKT-EXHAUST MOUNT,XPL 400,BLK
5243199-067
|
|||
|
Unavailable |
|||
|
#10
NUTSERT-5/16-18(.027-.150),HXY
7547101
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
MUFFLER/SPARK ARRESTER,BK
1261022-029
|
$414.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
MANIFOLD,STR.250,BLK.
1260922-029
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Washer, Lock
-------
|
|||
|
Unavailable |
|||
|
#14
Nut
-------
|
|||
|
Unavailable |
|||
|
#15
SPRING-EXHAUST(10)
7042029
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
HEADPIPE,BLK
1261060-029
Superseded by 1261060-489
|
$128.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPRING-EXHAUST
7042031
Superseded by 7041687
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BRKT,EXHAUST SHIELD,XPL250,BLK
5244130-067
|
$9.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
RIVET(50)
7621462
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SCREW
7517264
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SCREW(10)
7515140
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
INSERT, STEEL(10)
7542152
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER(10)
7555923
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SHIELD,EXHAUST,XPLORER Substituted by 1261086
1260995
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
FOAM,FOIL,HEAT SHIELD
5811849
|
|||
|
Unavailable |
|||
|
#25
BOLT(10)
7512666
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
NUT, SPEED(10)
7670060
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
SPRING-EXTENSION,2.90" FREE LG
7041769
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
