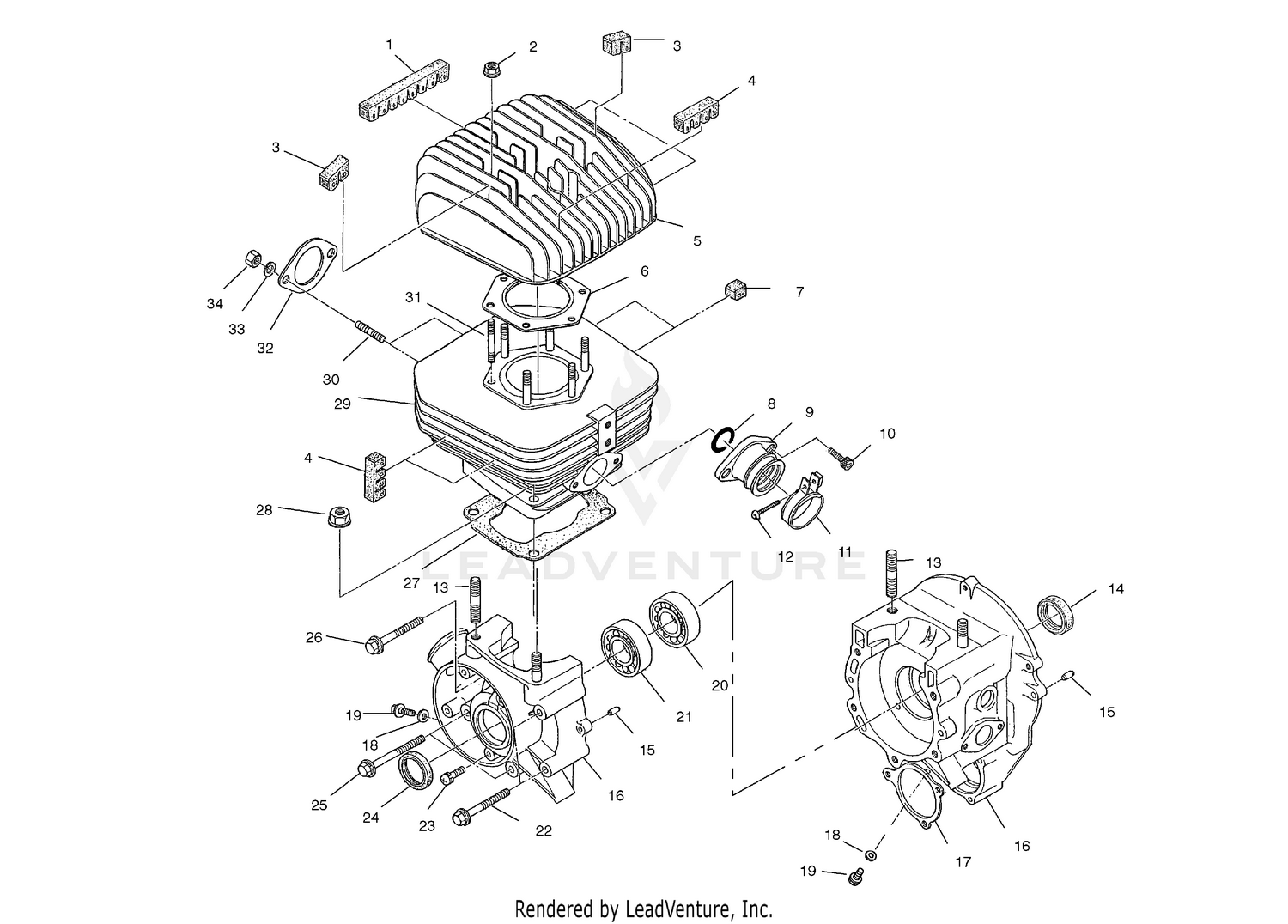

2001 Polaris XPLORER 4X4 CRANKCASE and CYLINDER - A01AG25CA (4963866386C009) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FIN DAMPER #3
3083931
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
NUT-FLANGE(10)
3082910
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
FIN DAMPER #4
3083932
|
$22.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FIN DAMPER #1
3083929
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HEAD,CYLINDER
3086841
|
$308.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET,HEAD,(CP)
3084015
|
$50.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
FIN DAMPER #2
3083930
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
O-RING
3084292
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
ADAPTER, CARB. *
3085013
|
$119.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT, ALLEN
3086786
Superseded by 3081330
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BAND-CARB MTG.
3082257
|
$20.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW,(10)
3081497
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
STUD
3080746
Superseded by 3085713
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
SEAL,OIL
3080006
Superseded by 3082162
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Pin, Dowel
3086741
Superseded by 3086838
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
ASM-CRANKCASE
3087048
|
$559.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET,STARTER(NON-ASBESTOS)
3084018
Superseded by 3085283
|
$12.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG, DRAIN
3086744
Superseded by 3083767
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Bearing, Ball
3085890
Superseded by 3089276
|
$40.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
BEARING, BALL
3084580
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BOLT W/WASHER
3086784
Superseded by 3080739
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW&WASHER ASM.
3081635
|
|||
|
Unavailable |
|||
|
#24
SEAL, OIL, PTO
3084581
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT&WASHER ASSY.
3083615
|
|||
|
Unavailable |
|||
|
#26
BOLT & WASHER Substituted by 3082096
3086783
|
|||
|
Unavailable |
|||
|
#27
GASKET, CYLINDER Substituted by 3083733
3084016
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
CYLINDER
3087049
|
|||
|
Unavailable |
|||
|
#30
STUD,(10)
3085326
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
STUD
3080283
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Gasket, Exhaust
3084017
Superseded by 3086757
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
WASHER LOCK ,(10)
3080530
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
Nut
3086787
Superseded by 3087199
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
