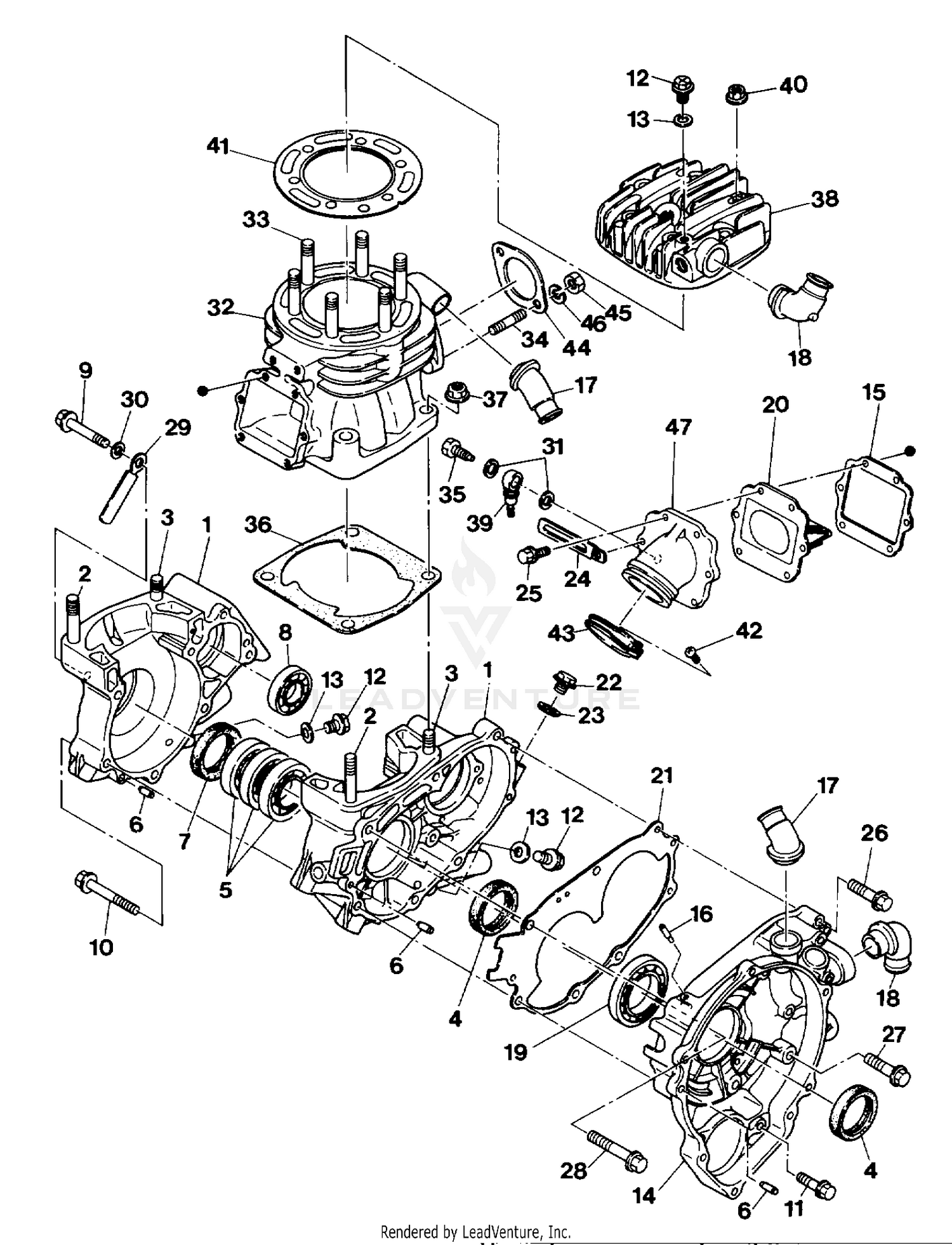

1990 Polaris TRAIL BOSS 350L 2X4 Crankcase and Cylinder Assembly (4918531853035A) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASM.
3084117
|
|||
|
Unavailable |
|||
|
#2
STUD
3084118
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STUD
3084119
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SEAL, OIL
3084120
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BEARING, BALL
3084121
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Pin, Dowel
3080103
Superseded by 3086838
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
SEAL,OIL
3084122
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BEARING, BALL
3084123
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT, FLANGE
3084124
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BOLT, FLANGE Substituted by 3086742
3084125
|
|||
|
Unavailable |
|||
|
#11
BOLT, FLANGE
3084126
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PLUG, DRAIN
3083767
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
CAP
3083758
|
$7.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CRANKCASE #3
3084127
|
|||
|
Unavailable |
|||
|
#15
GASKET, REED VALVE,(10)
3084148
|
|||
|
Unavailable |
|||
|
#16
PIPE, BREATHER
3084128
|
$14.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
PIPE, 1 ELBOW Substituted by 3086746
3084129
|
|||
|
Unavailable |
|||
|
#18
Pipe 2, Elbow
3084130
Superseded by 3086747
|
$56.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BEARING, BALL
3084131
|
$48.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
VALVE ASM., REED
3084147
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
GASKET, CASE 3
3084133
|
|||
|
Unavailable |
|||
|
#22
PLUG Substituted by 3086749
3083453
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
GASKET
3082956
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLAMP
3084146
Superseded by 3083590
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
Bolt, Flange
3084145
Superseded by 3084877
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Bolt, Flange
3084132
Superseded by 3086751
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
BOLT, FLANGE
3084134
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
BOLT, FLANGE
3084135
|
|||
|
Unavailable |
|||
|
#29
CLAMP
3084136
Superseded by 3083384
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
WASHER(10)
3080142
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
WASHER(10) Substituted by 3083138
3040140
|
$804.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
CYLINDER
3084137
|
|||
|
Unavailable |
|||
|
#33
STUD
3084138
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
STUD (10)
3084139
Superseded by 3080016
|
$7.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
BOLT-BANJO
3083137
|
$13.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
GASKET, CYLINDER
3084140
|
|||
|
Unavailable |
|||
|
#37
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#38
HEAD, CYLINDER
3084141
|
$504.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
VALVE, CHECK
3083894
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
NUT-FLANGE(10)
3082910
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
GASKET, HEAD Substituted by 3084517
3084142
|
|||
|
Unavailable |
|||
|
#42
SCREW,(10)
3081497
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
BAND ASM.
3084144
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
GASKET, EXHAUST
3083770
|
|||
|
Unavailable |
|||
|
#45
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
WASHER LOCK ,(10)
3080097
Superseded by 3080530
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
ADAPTER
3084143
|
|||
|
Unavailable |
|||
