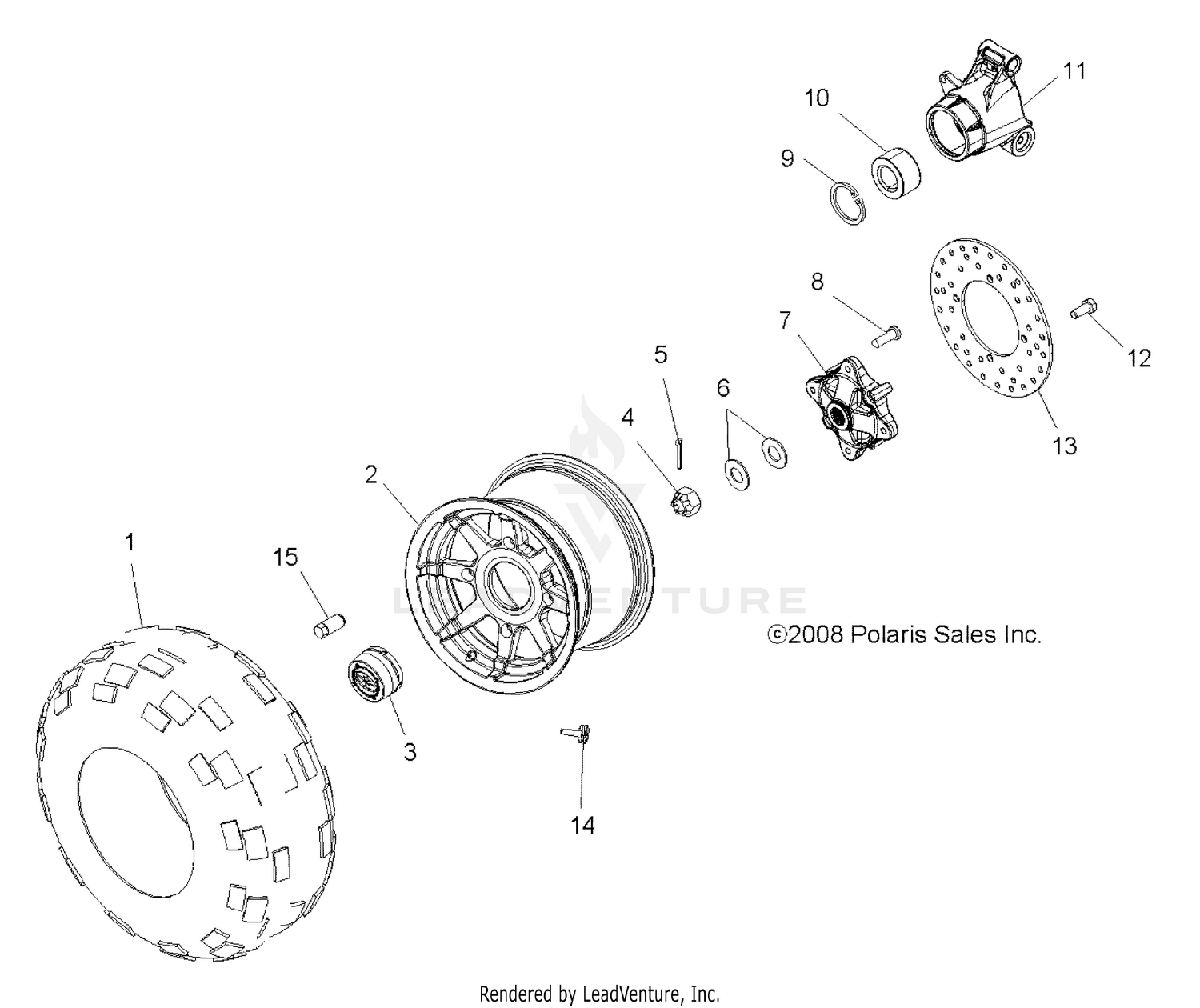

2012 Polaris SPORTSMAN 500 FOREST TRACTOR WHEELS, REAR - A12MN50ET (49ATVWHEELREAR09SP500TR) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TIRE-RR,25X12.5-12,6P,KENDA BC
5413112
Superseded by 5415548
|
$119.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Rim, Rear, Cast, Black
1521105-067
|
$227.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Cap, Rim
1521128
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Nut, Castle
7547337
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Pin, Cotter
7661404
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Washer, Cone
7555796
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Hub, Rear Wheel
5135113
|
$89.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Stud
7518378
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Ring, Retaining
7710440
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Bearing, Wheel
3514635
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BEARING-WHEEL,40X74X40MM (HEAVY DUTY)
3515087
|
$79.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Carrier, Bearing, Wheel
5135563
|
$89.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Bolt
7518903
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Disc, Brake, Rear
5248250
|
$79.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Valve, Rim
1525017
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Nut, Wheel
7547309
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
