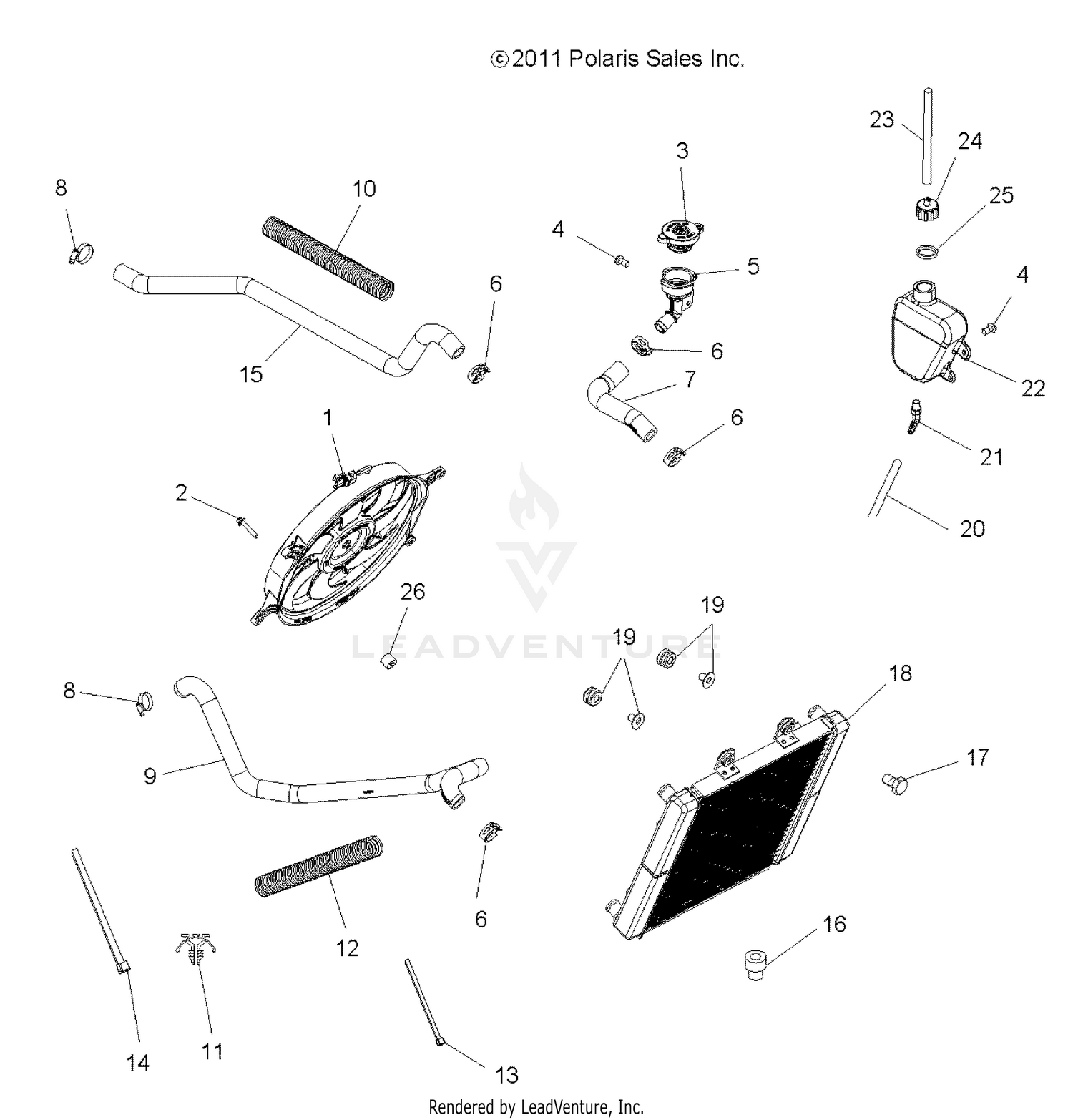

2012 Polaris SPORTSMAN 500 FOREST TRACTOR ENGINE, COOLING SYSTEM - A12MN50ET/EX (49ATVCOOL12SP500TR) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Fan and Motor
2411330
|
$236.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Screw
7516827
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Cap, Pressure
1240508
|
$51.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Screw
7512084
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
Neck, Filler
5412402
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Clamp, Springback
7080841
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Hose, Filler Neck
5414228
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Clamp, Hose
7080696
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Hose, Radiator, Lower
5414217
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Conduit, Flex
5521793-25
Superseded by 5521793-51
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Mount, Cable Tie
7080965
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Conduit, Flex
5521793-25
Superseded by 5521793-51
|
$9.99 | ||
|
Unavailable |
|||
|
#13
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Cable Tie
7080492
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Hose, Radiator, Upper
5414218
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Bushing, Mount, Lower Radiator
5410584
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Screw
7515179
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Asm., Radiator
1240520
|
$424.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Asm., Grommet and Insert
5413155
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Line, Fuel
8450003-1525
|
$69.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Fitting, 90 Degree
7052065
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
Tank, Surge
5436936
|
$84.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
Line, Fuel
8360009-600
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
Cap, Overflow Bottle w/Fitting
5437635
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
GASKET, OVER FLOW CAP
5810279
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
Spacer
5137361
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
