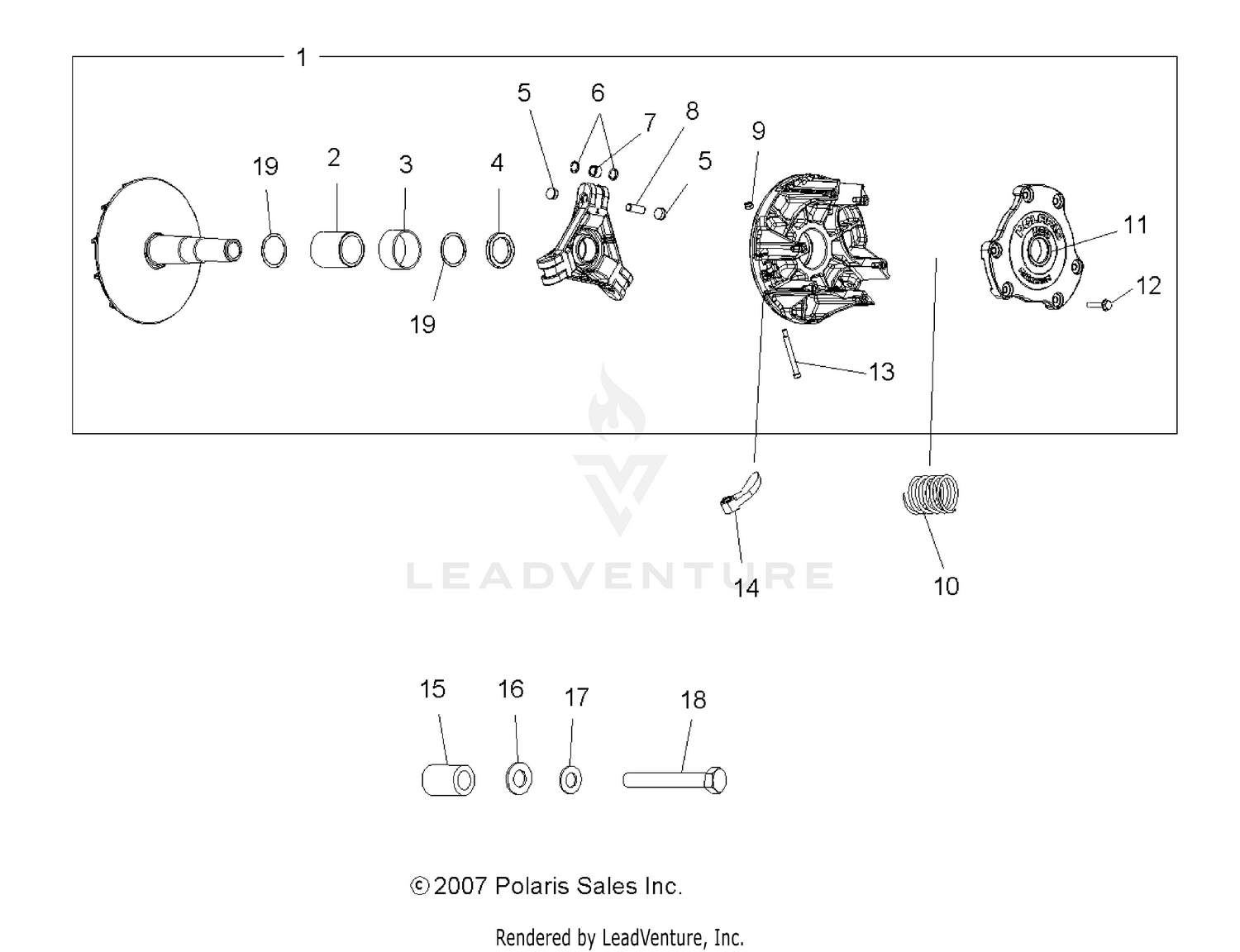

2012 Polaris SPORTSMAN 500 FOREST TRACTOR DRIVE TRAIN, PRIMARY CLUTCH - A12MN50ET/EX (49ATVCLUTCH08SP500EFI) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Drive Clutch
1322673
|
$619.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Asm., Clutch
1520836
|
$154.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Bearing
3514492
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Spacer
5631903
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BUTTON, CLUTCH
5431936
Superseded by 5439254
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Washer, Clutch, Spider Roller
5438247
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Asm., Roller and Bushing
1321622
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Pin, Roller
5020422
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Nut, FLEXLOC
7541906
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
Spring, Clutch
7041157
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Bearing, Cover
3576510
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Screw
7518062
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Bolt, Shoulder
7512266
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Weight, Shift, 10-WHF
5632283
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Bushing
5430261
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Washer
5210748
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Washer, Lock
7575202
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Bolt
7512566
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Washer
7556335
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
