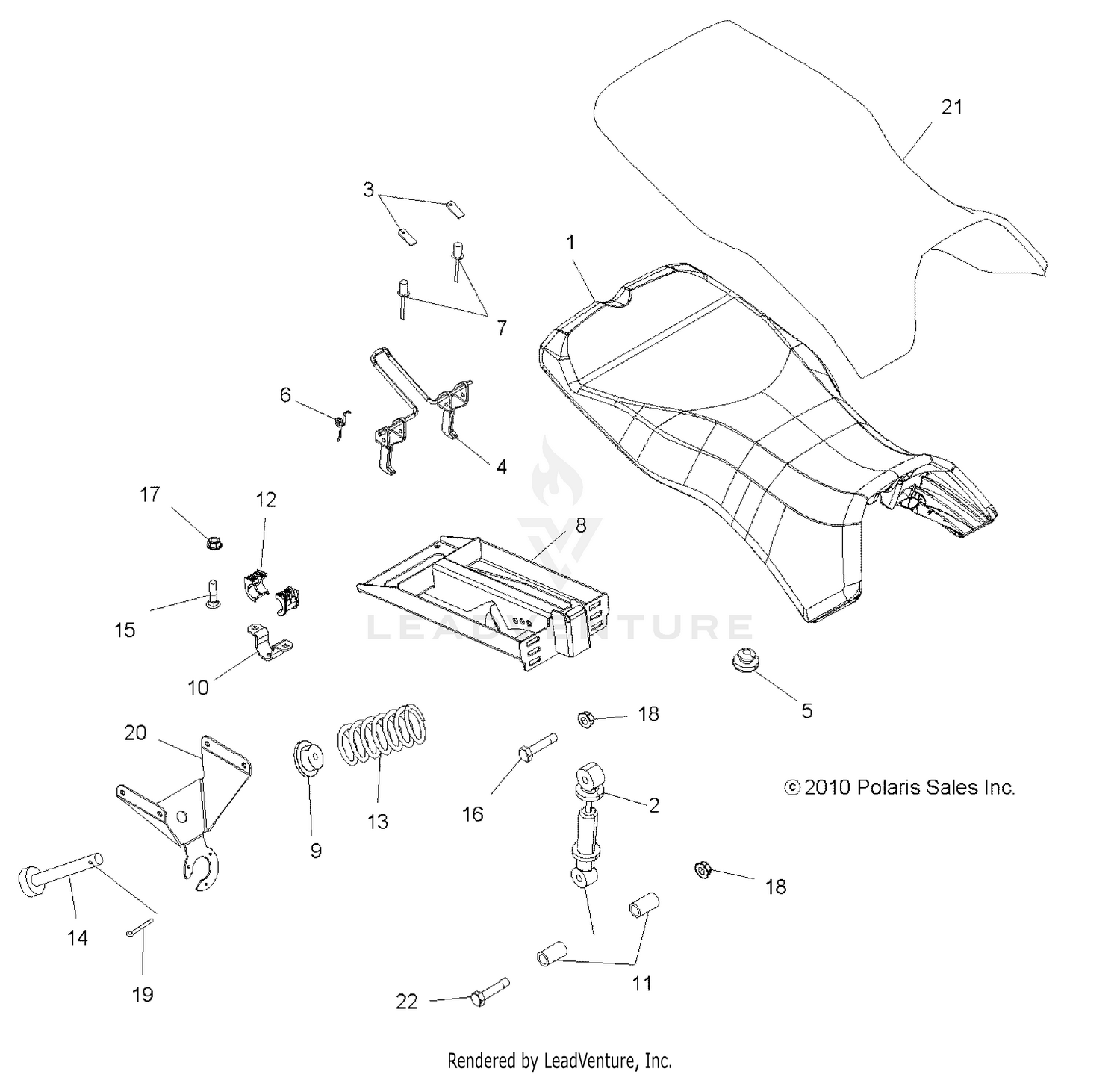

2012 Polaris SPORTSMAN 500 FOREST TRACTOR BODY, SEAT - A12MN50ET/EX (49ATVSEAT11SP500TR) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Asm., Seat
2684923
|
|||
|
Unavailable |
|||
|
#1
Covering, Seat
2684341
|
$185.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
Shock, Seat
1500797
|
$44.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Bracket, Lever Retainer
5211033
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Latch, Seat
1016733
|
$77.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
BUMPER-RUBBER
5412067
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Spring, Latch
7041370
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Rivet
7621403
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
Suspension, Seat, Black
1016876-067
|
$247.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
Mount, Spring, Lowered
5136874
|
$59.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
BRACKET, STEERING BUSHING, UPPER
5246732
Superseded by 5257028
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
Tube, Spacer, Seat Shock
5336645
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BUSHING, UPPER STEERING
5438903
Superseded by 5439731
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Spring, Compression, Black
7042050-067
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
Knob, Spring Adjust
7081572
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Bolt, Carriage
7517428
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
Screw
7518278
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
Nut, Flange
7542343
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Nut, Flange
7547180
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
Pin, Cotter
7661203
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
Bracket, Spring Adjust
1017077-067
|
$54.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
Cover, Seat
2684470
|
|||
|
Unavailable |
|||
|
#22
Screw
7517646
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
