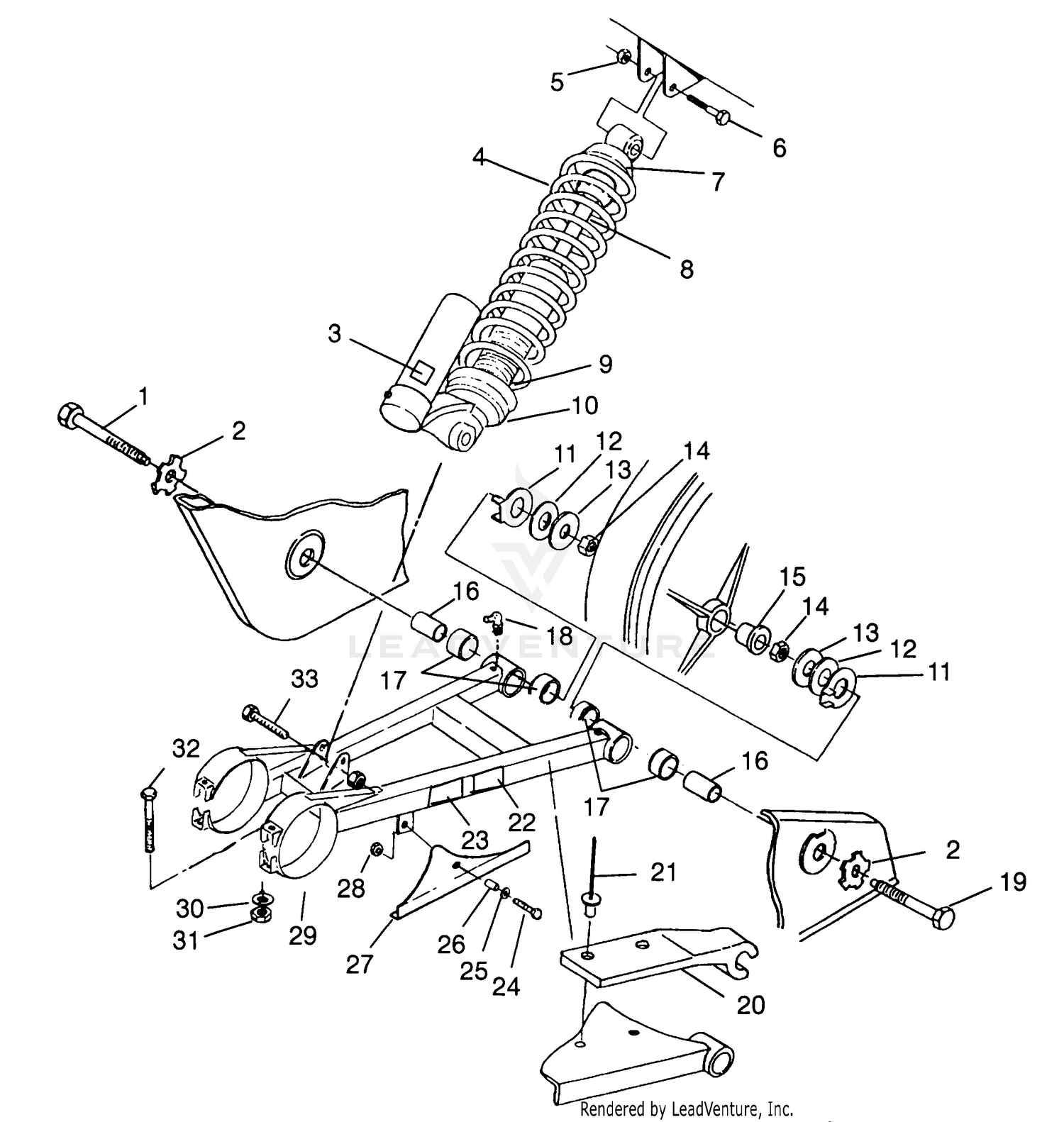

1996 Polaris SCRAMBLER 4X4 SWING ARM/SHOCK MOUNTING Scrambler W967840 (4935823582B014) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, SHOULDER
7512701
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
PLATE,BOLT LOCK
5220958
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
DECAL,WARN.(FOX ATV SHOCK)
7075343
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
SPRING,COMP,BLK.
7041389-067
|
|||
|
Unavailable |
|||
|
#5
NUT-LOCK(10)
7542439
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT(10)
7515415
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
RETAINER, SPRING
5222118
Superseded by 5251753
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SHOCK,GAS,RESERVOIR
7041383
|
|||
|
Unavailable |
|||
|
#9
RETAINER,SPRING,BODY,THREADED
1500063
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
RING,SPRING PRELOAD ADJ.
5431734
|
$54.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUSHING
5240952
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BUSHING-THRUST
5431977
Superseded by 5433414
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER(10)
7555911
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
NUT, LOCK(10)
7542602
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
Bushing, Pivot
-------
|
|||
|
Unavailable |
|||
|
#16
BUSHING,SWING ARM
5020793
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BUSHING-SWINGARM
5431972
Superseded by 5433417
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
FITTING, LUBE.
7080438
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
BOLT, SHOULDER
7512702
|
$15.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GUIDE, CHAIN
5431310
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
RIVET(50)
7621433
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
DECAL,LUBRICATION
7074214
|
|||
|
Unavailable |
|||
|
#23
DECAL,CHAIN FREE PLAY
7074752
|
|||
|
Unavailable |
|||
|
#24
SCREW-FLANGED(10)
7515304
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
Washer, Flat
7558402
|
$0.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BUSHING
5332828
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GUARD, CHAIN
5430776
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
NUT LOCK(10)
7542321
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
ARM ASM,SWING
1580088
|
|||
|
Unavailable |
|||
|
#30
WASHER(10)
7555883
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
NUT, LOCK,(10)
7542503
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
BOLT(10)
7512576
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
BOLT(10)
7515438
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
