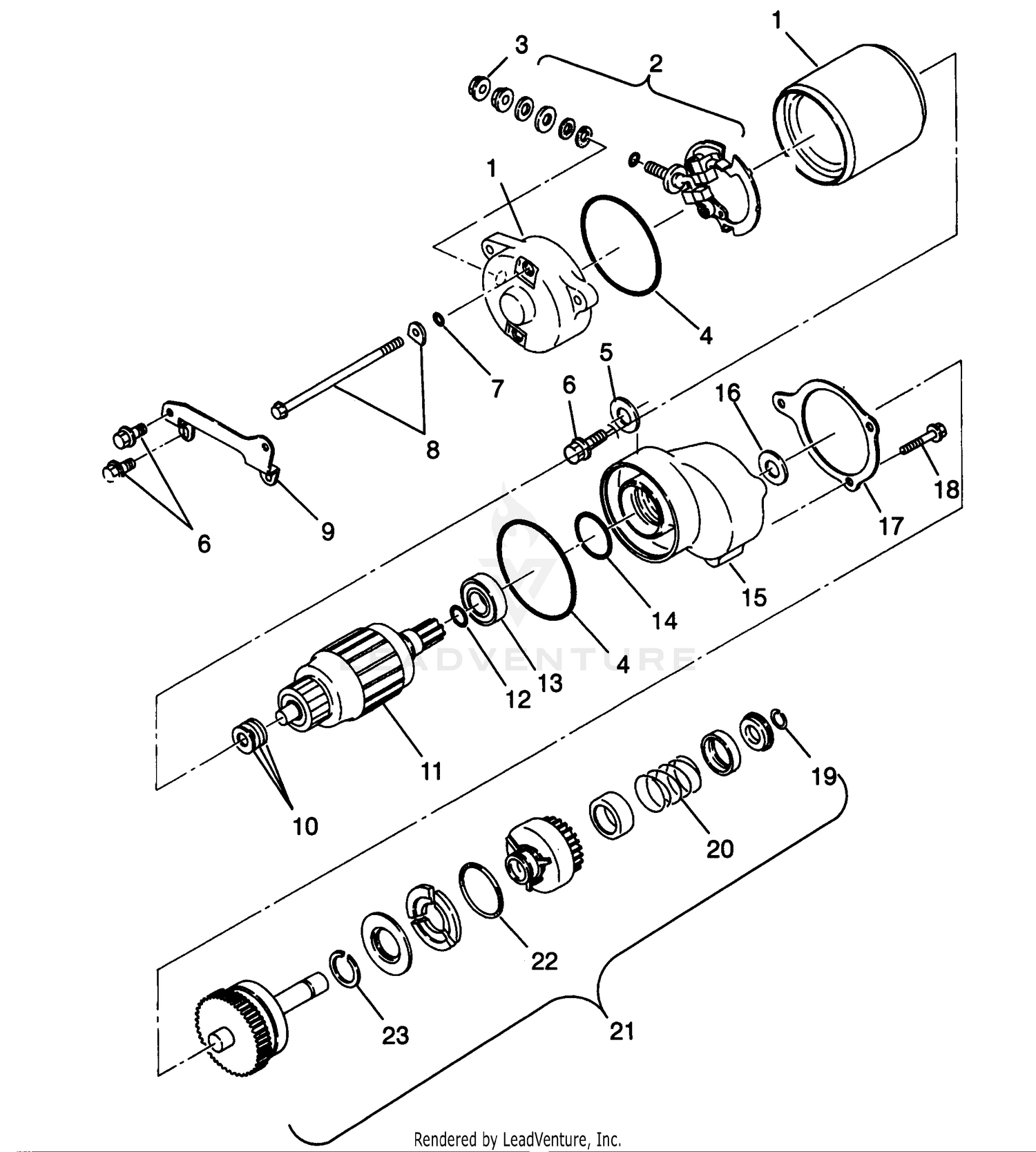

1996 Polaris SCRAMBLER 4X4 STARTING MOTOR Scrambler W967840 (4935823582D005) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
STARTER MOTOR ASM. Substituted by 3085393
3084403
|
|||
|
Unavailable |
|||
|
#1
COVER,REAR,STARTER(300-400)
3085032
|
$102.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#1
MOTOR,STARTING Substituted by 3085392
3085282
|
|||
|
Unavailable |
|||
|
#2
Set, Brush, Carbon
3084406
Superseded by 3088169
|
$129.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
NUT, FLANGE(10)
3083649
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
RING, RUBBER
3084405
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FLANGE
3083568
Superseded by 3087256
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
O-RING
3084408
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT, THROUGH
3084407
|
$3.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BRACKET Substituted by 3086780
3084214
|
|||
|
Unavailable |
|||
|
#10
WASHER SET
3083754
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
ARMATURE ASM. *
3084404
|
$259.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O RING
3083934
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BALL BEARING
3083777
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
O RING
3083741
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
COVER, FRONT
3085305
|
|||
|
Unavailable |
|||
|
#16
Washer
3083737
Superseded by 7555908
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
GASKET,STARTER(NON-ASBESTOS)
3085283
|
$12.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
Bolt, Flange
3084215
Superseded by 3086781
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLIP
3084409
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SPRING, RETURN
3084410
|
$3.09 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
ASM., GEAR SHAFT
3083647
Superseded by 3090034
|
$259.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SPRING, WEIGHT
3084411
|
$19.59 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
CLIP
3084412
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
