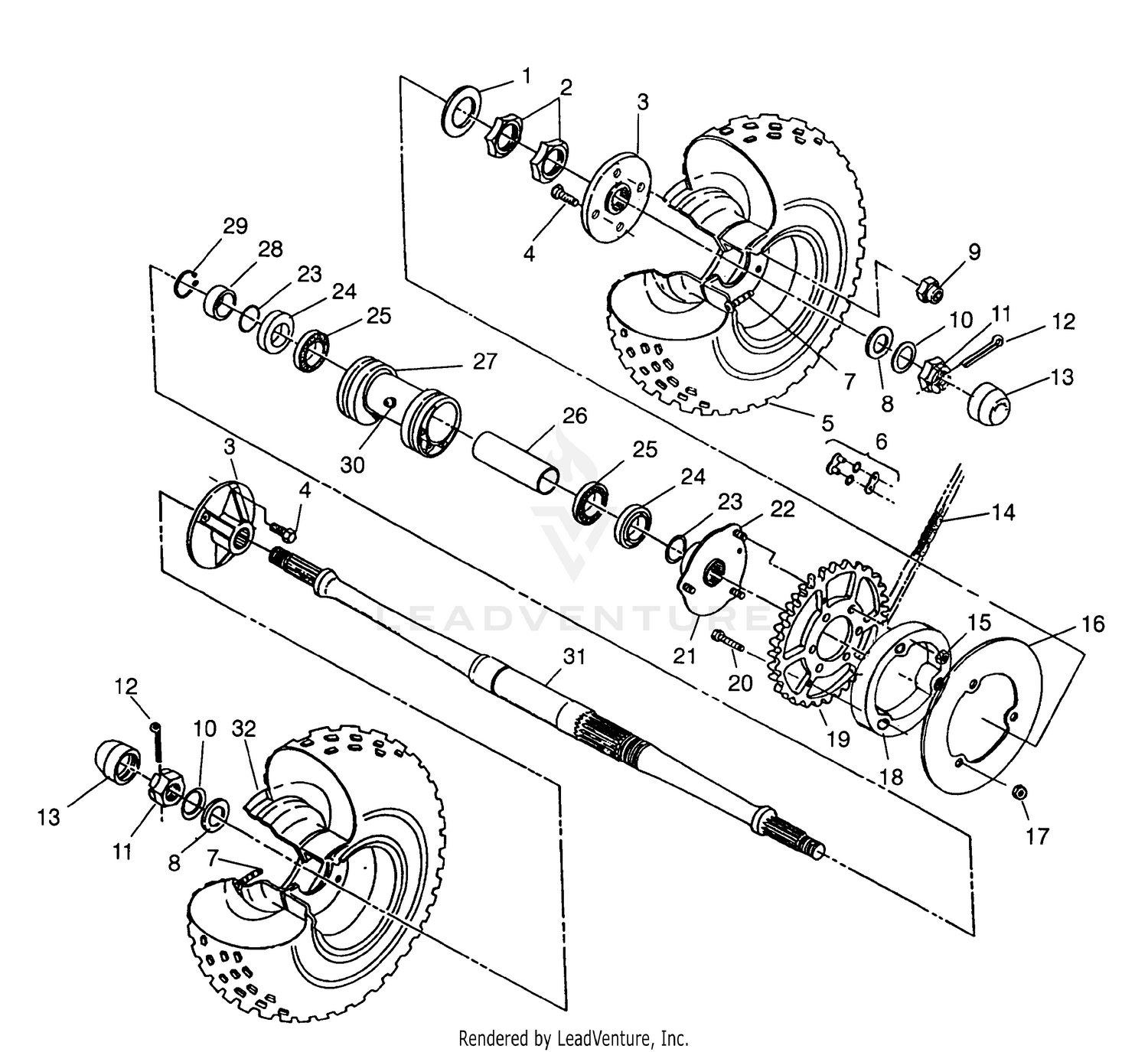

1996 Polaris SCRAMBLER 4X4 REAR WHEEL DRIVE Scrambler W967840 (4935823582C005) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER(10)
7555764
|
|||
|
Unavailable |
|||
|
#2
NUT, JAM
5020468
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
HUB,R.WHEEL,LG.FLANGE(MACH)
5131284
Superseded by 5131777
|
$73.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT, WHEEL(10)
7512673
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
TIRE,REAR,(4X6)
5410539
|
|||
|
Unavailable |
|||
|
#6
Link, Connector
3225026
Superseded by 3221192
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
VALVE, RIM
1525017
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER(10)
7555745
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT, RIM(10)
7542723
|
$2.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER, CONE(10)
7555796
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT, CASTLE(10)
7543005
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
PIN, COTTER(10)
7661404
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Cover, Dust
5411164
Superseded by 5413427
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CHAIN-520 ORD4,O-RING,84 PTCH
3224056-084
Superseded by 3221193-084
|
$154.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
NUT LOCK(10)
7542403
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
GUARD,38T SPKT,BLK.ALUM.
5211585-067
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
NUT-LOCK(10)
7542439
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
SPACER-SPROCKET GUARD
5630586
|
|||
|
Unavailable |
|||
|
#19
SPKT,36T,R.AXLE,(ATV)
3222065
Superseded by 3222109
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOLT(10)
7515540
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
SPROCKET HUB ASM.
1520170
|
$92.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STUD(10)
7515513
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
O RING, 1 5/16(10)
5410415
|
$2.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SEAL, REAR AXLE
3610013
|
$29.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BEARING, BALL
3515501
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
NOT AVAILABLE
5010204
Superseded by 9999999
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HOUSING, AXLE
5130663
|
$97.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
SPACER,BEARING
5010206
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
RING, SNAP(10)
7710405
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
FITTING,LUBE.W/BALL CK.(10)
7080306
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
AXLE,REAR,HVY.
5020790
|
$349.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
RIM,REAR,WHITE
1520204-133
|
|||
|
