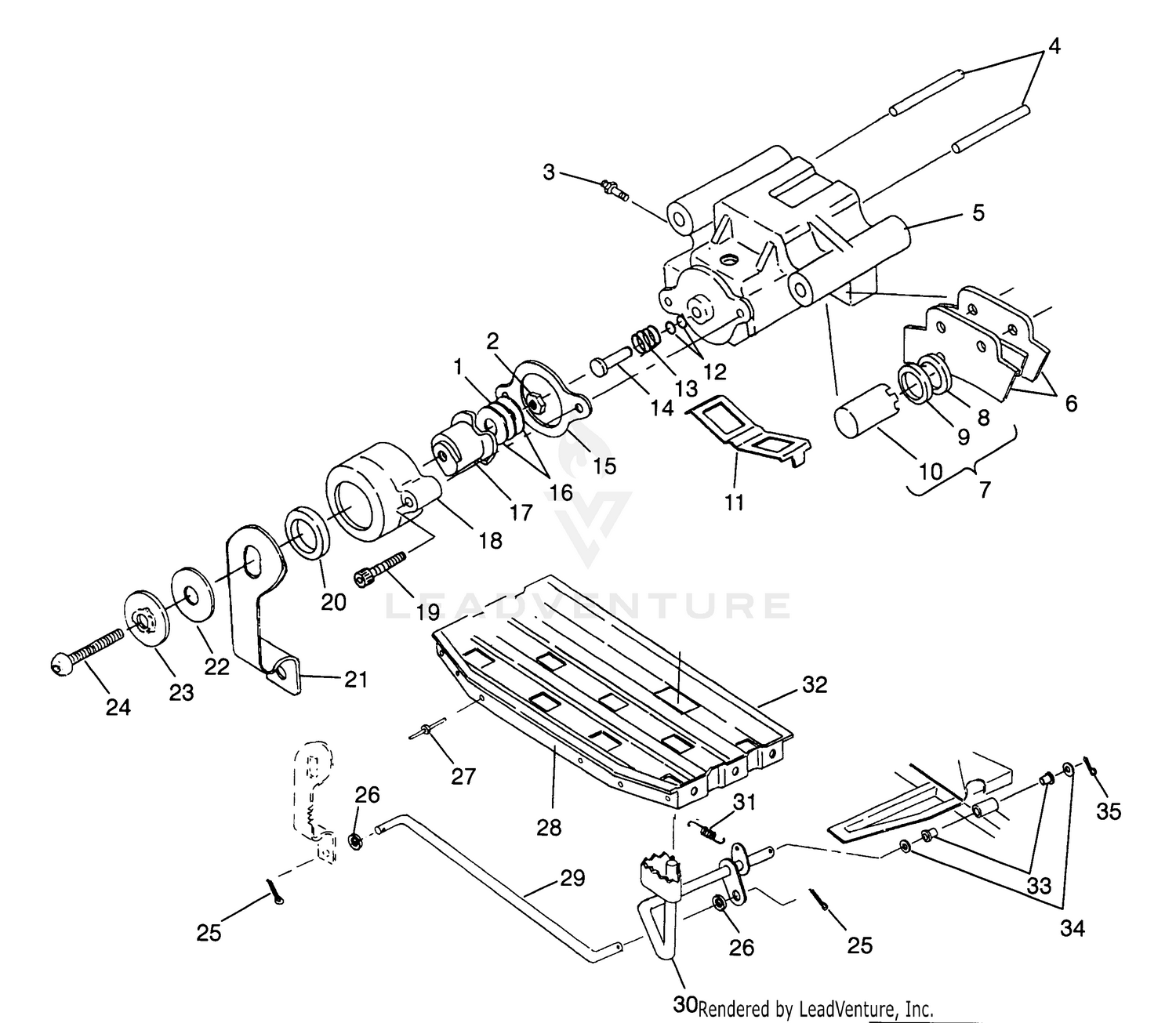

1996 Polaris SCRAMBLER 4X4 REAR BRAKE Scrambler W967840 (4935823582C004) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WASHER(10)
7555921
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
NUT, LH(10)
7542149
|
$6.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
SCREW,BLEEDER
7080352
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PIN, DOWEL(10)
7661820
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CALIPER,R.BRAKE,MACH
5131272
|
|||
|
Unavailable |
|||
|
#6
KIT,R.BRAKEPAD,HVY.DUTY
2200899
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
KIT, PISTON&SEAL
2200463
|
$94.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SQUARE RING-MOLDED (.134)
5410766
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
KIT, PISTON&SEAL
5410767
Superseded by 2200463
|
$94.99 | ||
|
Unavailable |
|||
|
#10
KIT, PISTON&SEAL
5020667
Superseded by 2200463
|
$94.99 | ||
|
Unavailable |
|||
|
#11
SPRING,ANTI-RATTLE
5240993
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
O RING
5410542
Superseded by 5411432
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SPRING,BRAKE,COMP.
7041219
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PIN,BRAKE CALIPER
5020791
|
|||
|
Unavailable |
|||
|
#15
GASKET, BRAKE
5830009
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
WASHER(10)
7555827
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
RAMP,MOVE.BRAKE Substituted by 2200906
5630538
|
|||
|
Unavailable |
|||
|
#18
RAMP, STAT.BRAKE Substituted by 2200905
5630457
|
|||
|
Unavailable |
|||
|
#19
SCREW(10)
7512173
|
|||
|
Unavailable |
|||
|
#20
SEAL, BRAKE
3610026
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
NOT AVAILABLE
5240901
Superseded by 9999999
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
WASHER, SPRING(10)
7555828
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
WASHER(10)
7571632
|
|||
|
Unavailable |
|||
|
#24
BOLT,LH SOC/HD.
7515160
|
|||
|
Unavailable |
|||
|
#25
PIN COTTER(10)
7661203
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
WASHER(10)
7555806
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
RIVET,INTERLOCK,B(50)
7661638
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
Trim Footrest
-------
|
|||
|
Unavailable |
|||
|
#29
ROD, BRAKE
5224531
|
$64.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
BRAKE,FOOT,BLK.
1910172-067
|
|||
|
Unavailable |
|||
|
#31
SPRING-EXHAUST(10)
7042029
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
Weld., Foot Pad
-------
|
|||
|
Unavailable |
|||
|
#33
BUSHING, PEDAL PIVOT
5431107
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
WASHER(10)
7555919
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
COTTER PIN(10)
7661401
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
