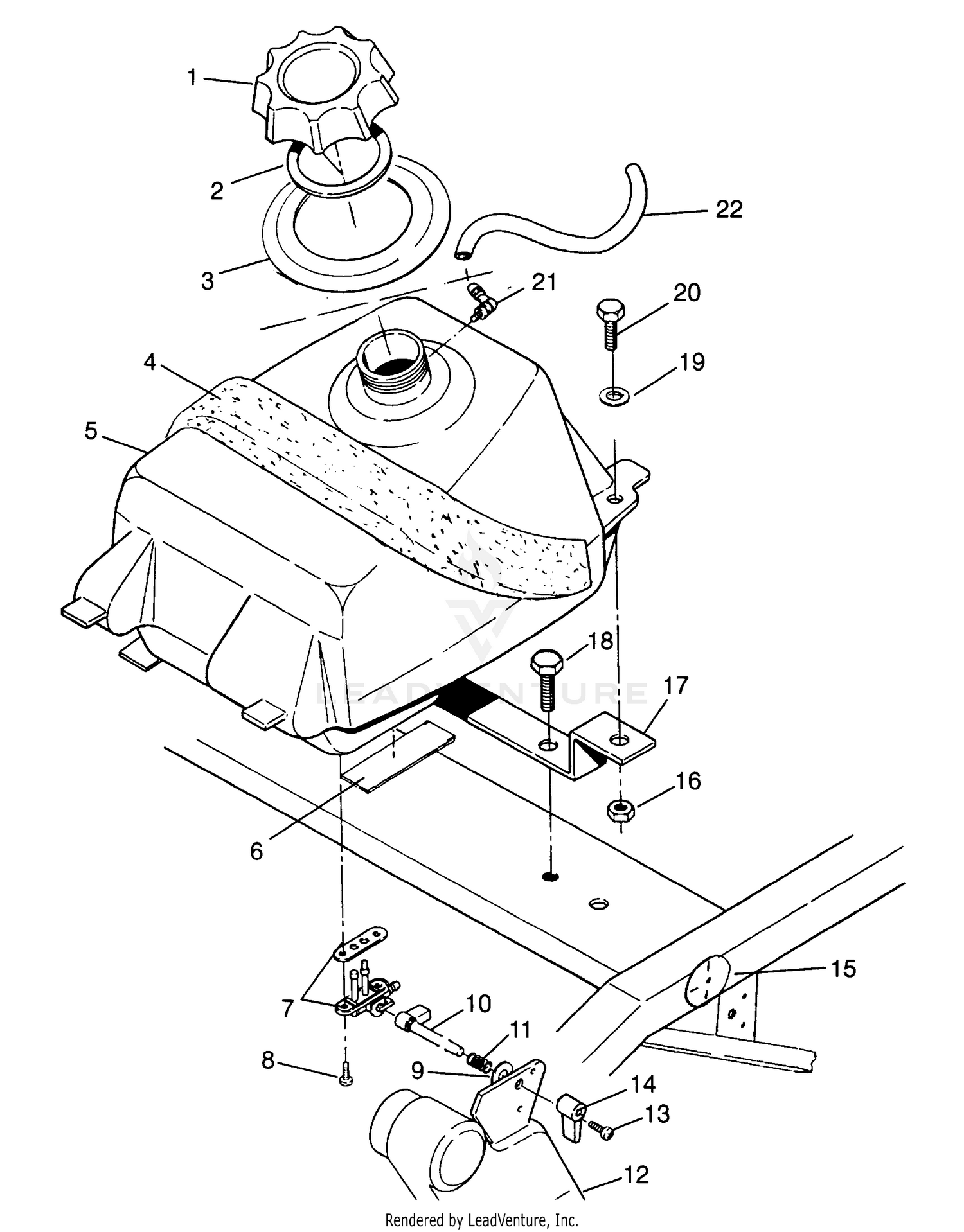

1996 Polaris SCRAMBLER 4X4 FUEL TANK Scrambler W967840 (4935823582A012) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAP, GAS, (BLACK)
5430725
|
$23.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
GASKET-GAS CAP
5810144
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
GROMMET,FUELTANK
5410842
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
FOAM, SEAL
5811052
|
|||
|
Unavailable |
|||
|
#5
Fuel Tank w/Valve
5430968
Superseded by 2520241
|
$404.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PAD,BULK FUEL
8360026
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
GASKET, FUEL VALVE
5810859
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
VALVE ASM, FUEL
7051006
|
$54.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
SCREW(10)
7515136
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER(10)
7555726
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
EXT.,FUEL LEVER
5431391
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
SPRING,LEVER,COMPRESS.
7041209
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Duct, Inlet Down Tube
-------
|
|||
|
Unavailable |
|||
|
#13
SCREW(10)
7511840
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
LEVER, FUEL
5431021
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
DECAL,FUEL LEVER
7074637
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NUT-5/16-18 NYLOK-Y
7542324
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
BRKT,R.TANK MT,BLK.
5220916-067
|
|||
|
Unavailable |
|||
|
#18
BOLT(10)
7512232
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
WASHER(10)
7555734
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
SCREW(10)
7512310
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
VENT, TANK
5431053
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
DESC NOT_AVAILABLE
8360009-94
|
|||
|
Unavailable |
|||
