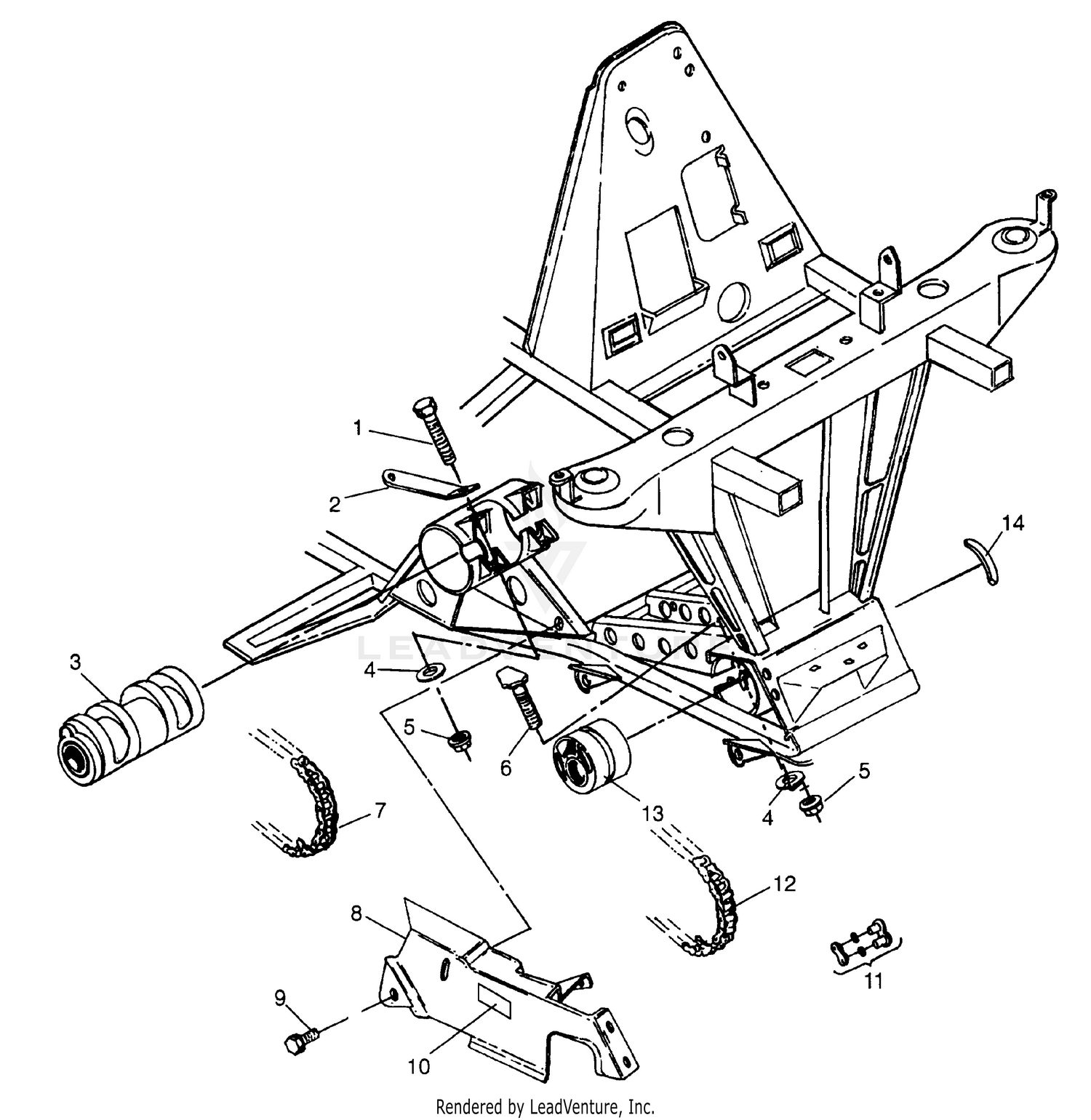

1996 Polaris SCRAMBLER 4X4 FRONT DRIVE Scrambler W967840 (4935823582B002) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7512583
|
|||
|
Unavailable |
|||
|
#2
BRKT,UP.COVER MT.
5222270-067
|
|||
|
Unavailable |
|||
|
#3
Asm., Center Tightener
-------
|
|||
|
Unavailable |
|||
|
#4
WASHER(10)
7555883
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
NUT, LOCK,(10)
7542503
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT, FLAG(10)
7512577
|
|||
|
Unavailable |
|||
|
#7
CHAIN-520 ORD4,O-RING,70 PITCH
3224044
Superseded by 3221193-070
|
$124.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
GUARD,CHAIN,FRONT
5431472
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
BOLT(10)
7512232
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
DECAL,FR.CHAIN TENSION
7074956
|
|||
|
Unavailable |
|||
|
#11
CONNECTOR LINK
3225024
|
$14.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
CHAIN-520 ORD4,O-RING,64 PITCH
3224041
Superseded by 3221193-064
|
$114.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
Asm., Front Tightener
-------
|
|||
|
Unavailable |
|||
|
#14
SPACER,F.ECCENTRIC Substituted by 5811519
5431095
|
|||
|
Unavailable |
|||
