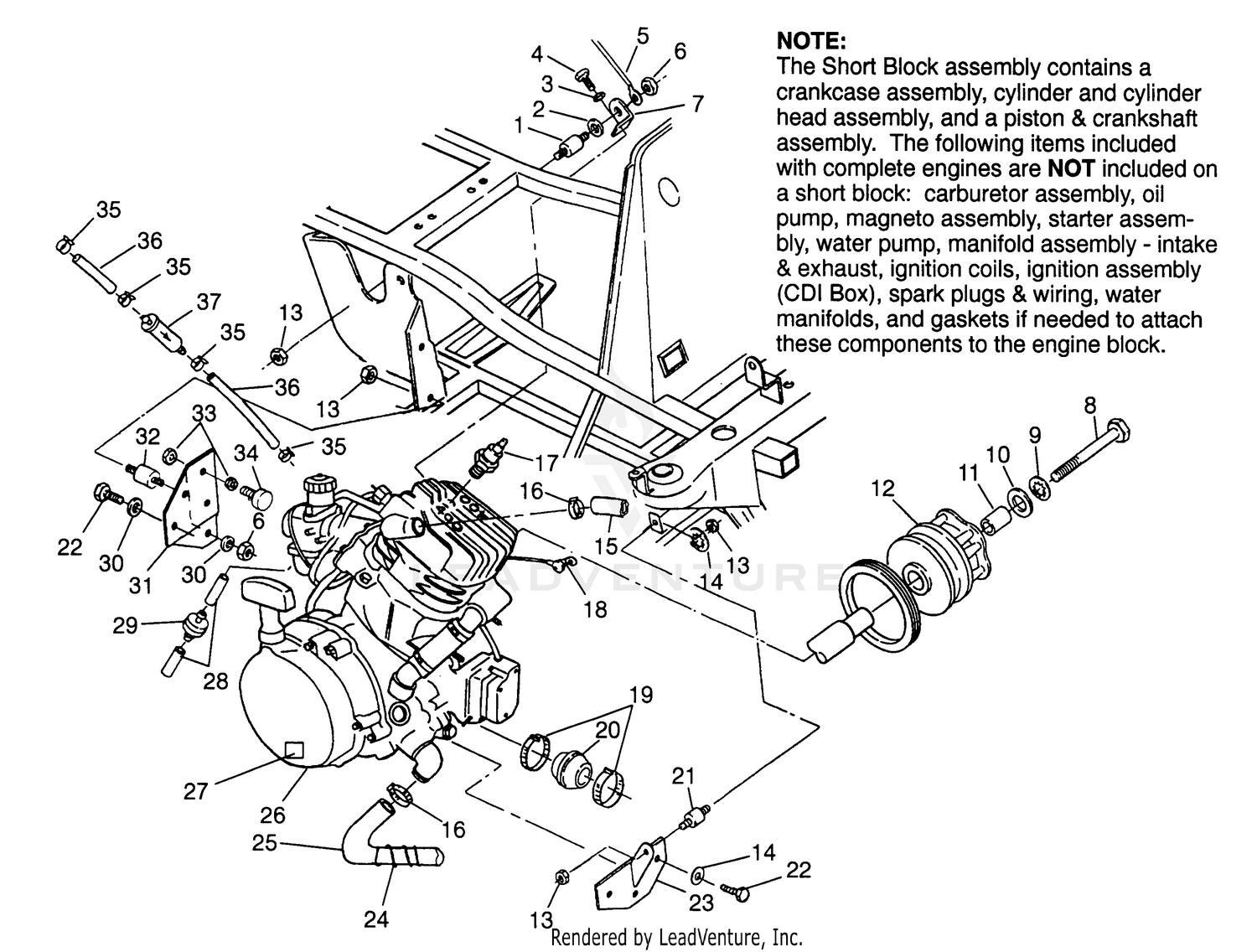

1996 Polaris SCRAMBLER 4X4 ENGINE MOUNTING Scrambler W967840 (4935823582A009) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ISOLATOR-3/8-24M/M,65DURO
3110038
Superseded by 3022069
|
$30.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
INSULATOR,MOTOR MT.
5430802
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
LOCK WASHER(10)
7552901
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
BOLT(10)
7515321
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CABLE,GROUND/ENG.
4010067
|
|||
|
Unavailable |
|||
|
#6
NUT LOCK(10)
7542411
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
MOUNT,ENG.TOP
5222415-067
|
|||
|
Unavailable |
|||
|
#8
BOLT(10)
7512566
|
$11.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
WASHER LOCK(10)
7575202
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER(10)
5210748
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BUSHING - RETAINING BOLT
5430261
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
Clutch, Drive Basic
-------
|
|||
|
Unavailable |
|||
|
#13
NUT LOCK(10)
7542403
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
WASHER(10)
7555801
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
HOSE,ENG,UPPER
5410570
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CLAMP,HOSE,(10)
7080614
|
$7.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
SPARKPLUG (10)
3070156
|
$4.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CABLE,SOLENOID/STARTER
4010064
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CLAMP, NARROW BAND(10)
7080511
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BOOT,CLUTCH INTAKE(400)
5410883
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
MOUNT,MOTOR
3110026
Superseded by 3022067
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
SCREW(10)
7512490
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
MOUNT,ENGINE
1040231-067
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
SPRING,HOSE RETAINER
7041079
|
$6.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
HOSE,LOWER ENGINE
5411173
|
$99.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
ENG.(S.B.)EC38PL-SB [No Longer Available]
3084718
|
|||
|
Unavailable |
|||
|
#27
DECAL,DRAIN RECOIL Substituted by 7078577
7075741
|
|||
|
Unavailable |
|||
|
#28
FUEL LINE,1/8 ID,600 CM.
8360009-600
|
$34.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
Valve, Check
7052047
Superseded by 7051011
|
$9.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
WASHER, SPRING LOCK
7553001
Superseded by 7552603
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
MOUNT, REAR MOTOR, BLK.
5240542-067
|
|||
|
Unavailable |
|||
|
#32
ISOLATOR-3/8-24M/M,60DURO
3110042
Superseded by 3022070
|
$27.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
NUT, JAM(10)
7542432
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
MT,TORQUE STOP,RUBBER
3110048
|
$9.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
CLAMP-HOSE,(10)
7080236
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#36
DESC NOT_AVAILABLE
8450042-1525
|
|||
|
Unavailable |
|||
|
#37
FILTER,SMALL,IN-LINE,(10)
2530009
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
