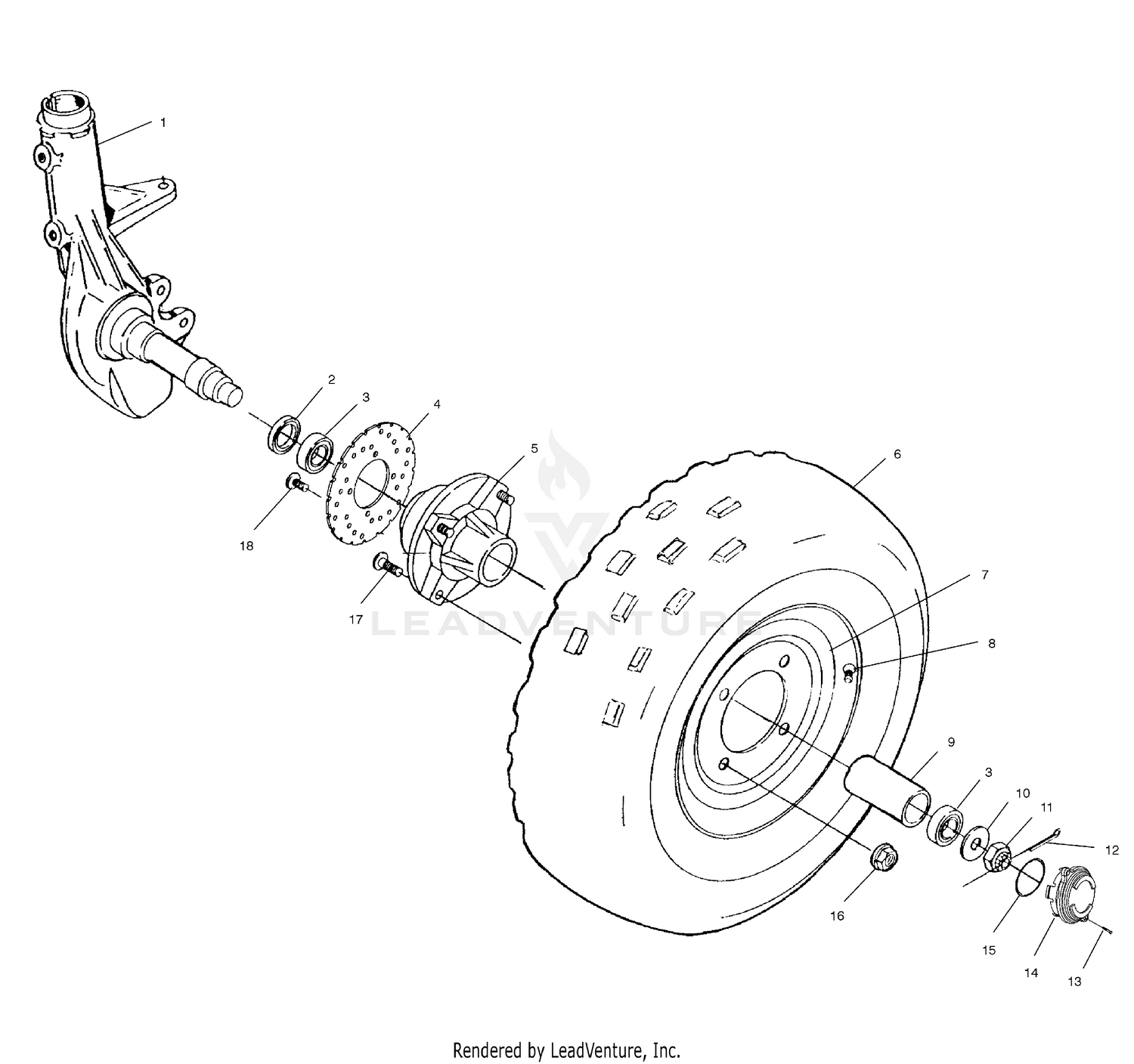

2001 Polaris SCRAMBLER 400 2X4 FRONT WHEEL - A01BA38CA (4968366836B001) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Support, Strut and Spindle
-------
|
|||
|
Unavailable |
|||
|
#2
SEAL,FRONT HUB
3610020
|
$21.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
Bearing, Ball, Sealed
3513519
Superseded by 3514527
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
Disc, Brake
5243675
Superseded by 5240035
|
$42.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HUB-WHEEL & CAP ASM
5130940
Superseded by 1520453
|
$185.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
HUB-WHEEL 2WD,MACHINED
5132627
|
$85.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
Tire, 23x7-10
5411264
Superseded by 5412324
|
$144.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
RIM,FRONT,SILVER
1520207-117
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
VALVE, RIM
1525017
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
SPACER, HUB,FRONT
5010256
|
$11.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
WASHER(10)
7555721
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT(10)
7542712
|
$10.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
COTTER PIN(10)
7661407
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
SCREW(10)
7511866
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAP, HUB
5431018
|
$15.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CAP,HUB,2WD
5433868
|
$9.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
O RING
5410470
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
NUT-3/8-24-FLG LOCK-Z
7542459
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
STUD(10)
7515523
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
BOLT(10)
7512325
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
