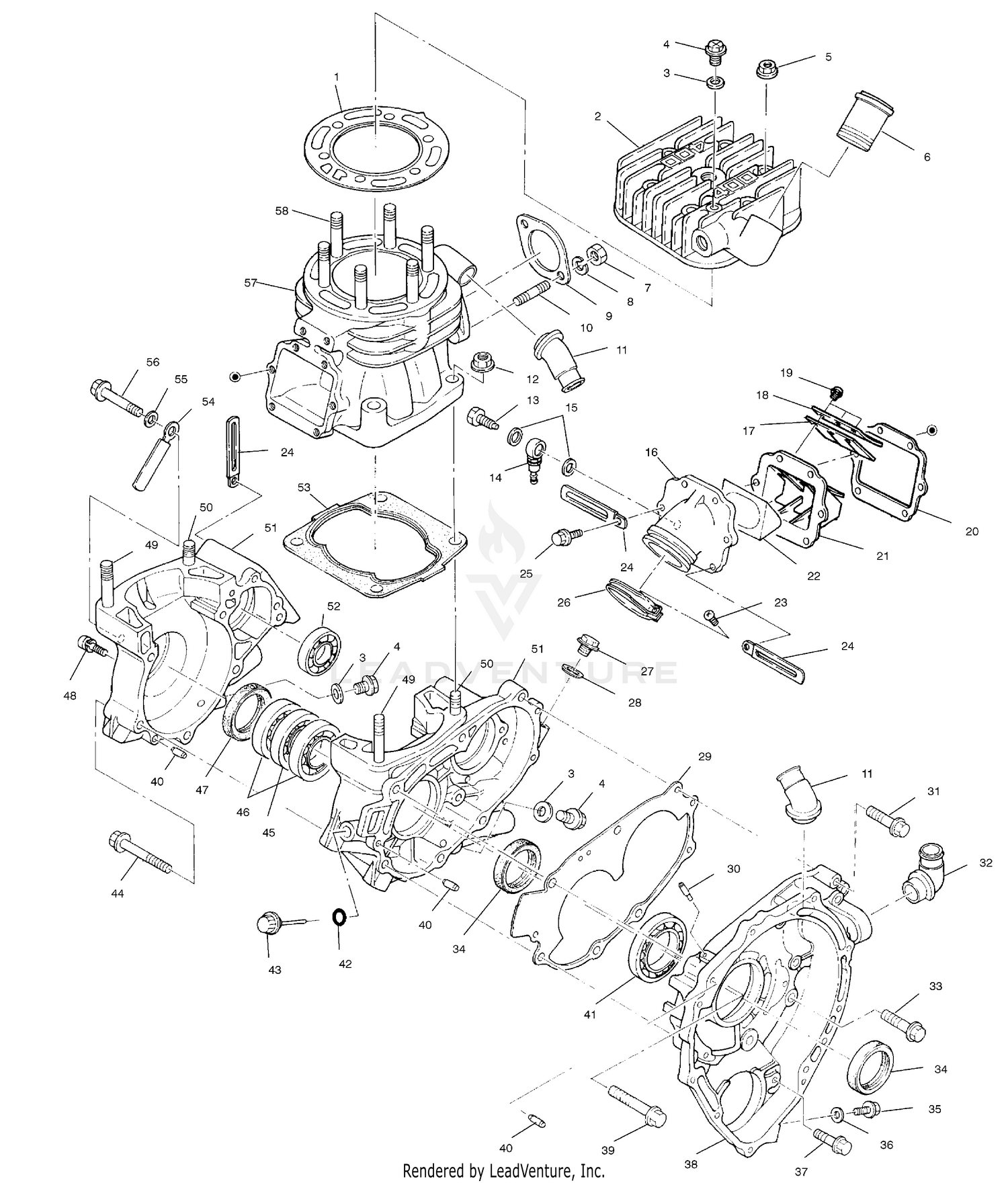

2001 Polaris SCRAMBLER 400 2X4 CRANKCASE and CYLINDER - A01BA38CA (4968366836C011) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET,HEAD
3084731
|
$41.19 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
CYLINDER-HEAD
3086755
|
$344.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
WASHER, FLAT
3082758
Superseded by 7555998
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
PLUG, DRAIN
3086744
Superseded by 3083767
|
$5.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
NUT-FLANGE(10)
3082910
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
PIPE, WATER
3086756
Superseded by 3083452
|
$39.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
Nut
3080285
Superseded by 3087199
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
WASHER LOCK ,(10)
3080530
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
GASKET-EXHAUST
3086757
|
$19.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
STUD,(10)
3085326
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
PIPE-1,ELBOW
3086746
|
$56.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
NUT-FLANGE(10)
3082911
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
BOLT-BANJO
3086758
Superseded by 3083137
|
$13.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
VALVE, CHECK
3083894
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
WASHER, FLAT
3083138
Superseded by 7555998
|
$1.99 | ||
|
Unavailable |
|||
|
#16
ADAPTER, CARB.
3085277
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
VALVE, REED(10)
3240064
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
STOPPER
3240065
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SCREW, REED
3240066
Superseded by 3084565
|
$3.29 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
GASKET-REED,VALVE Substituted by 3084148
3086760
|
|||
|
Unavailable |
|||
|
#21
VALVE ASM., REED
3084147
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
STUFFER,(REED VALVE ASM.)
3240164
|
$12.39 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
SCREW,(10)
3081497
|
$1.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
CLAMP
3083590
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
Bolt, Flange
3086759
Superseded by 3084877
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BAND ASM.
3084144
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
PLUG Substituted by 3086749
3086749
Superseded by 3083453
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
GASKET
3082956
|
$4.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#29
GASKET-CASE 3
3086748
|
$24.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#30
PIPE, BREATHER
3084128
|
$14.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#31
BOLT-FLANGE
3086751
|
$3.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#32
PIPE-2,ELBOW
3086747
|
$56.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#33
BOLT-FLANGE Substituted by 3084435
3086752
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#34
SEAL, OIL
3084120
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#35
PLUG Substituted by 3085152
3086750
|
|||
|
Unavailable |
|||
|
#36
GASKET,ALUMINUM(10)
3083482
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#37
BOLT-FLANGE Substituted by 3084126
3086743
|
|||
|
Unavailable |
|||
|
#38
CRANKCASE 3
3086745
|
$579.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#39
BOLT, FLANGE
3084134
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#40
Pin, Dowel
3086741
Superseded by 3086838
|
$6.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#41
BEARING, BALL
3084131
|
$48.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#42
O-RING
3084733
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#43
GAUGE-OIL
3086761
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#44
BOLT-FLANGE
3086742
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#45
BEARING, BALL
3084775
|
$54.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#46
BEARING, BALL
3084121
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#47
SEAL, OIL
3084725
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#48
SCREW & WASHER(10)
3084205
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#49
STUD
3084118
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#50
STUD
3084119
|
$9.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#51
ASM-CRANKCASE
3086740
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#52
BEARING, BALL
3084123
|
$25.49 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#53
GASKET,CYLINDER
3084729
|
$49.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#54
CLAMP
3083384
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#55
WASHER(10)
3080142
|
$2.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#56
BOLT, FLANGE
3084124
|
$7.79 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#57
CYLINDER
3086753
|
$734.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#58
STUD
3084138
|
|||
|
Available: Ships in 7-12 days. Add to View Price |
|||
