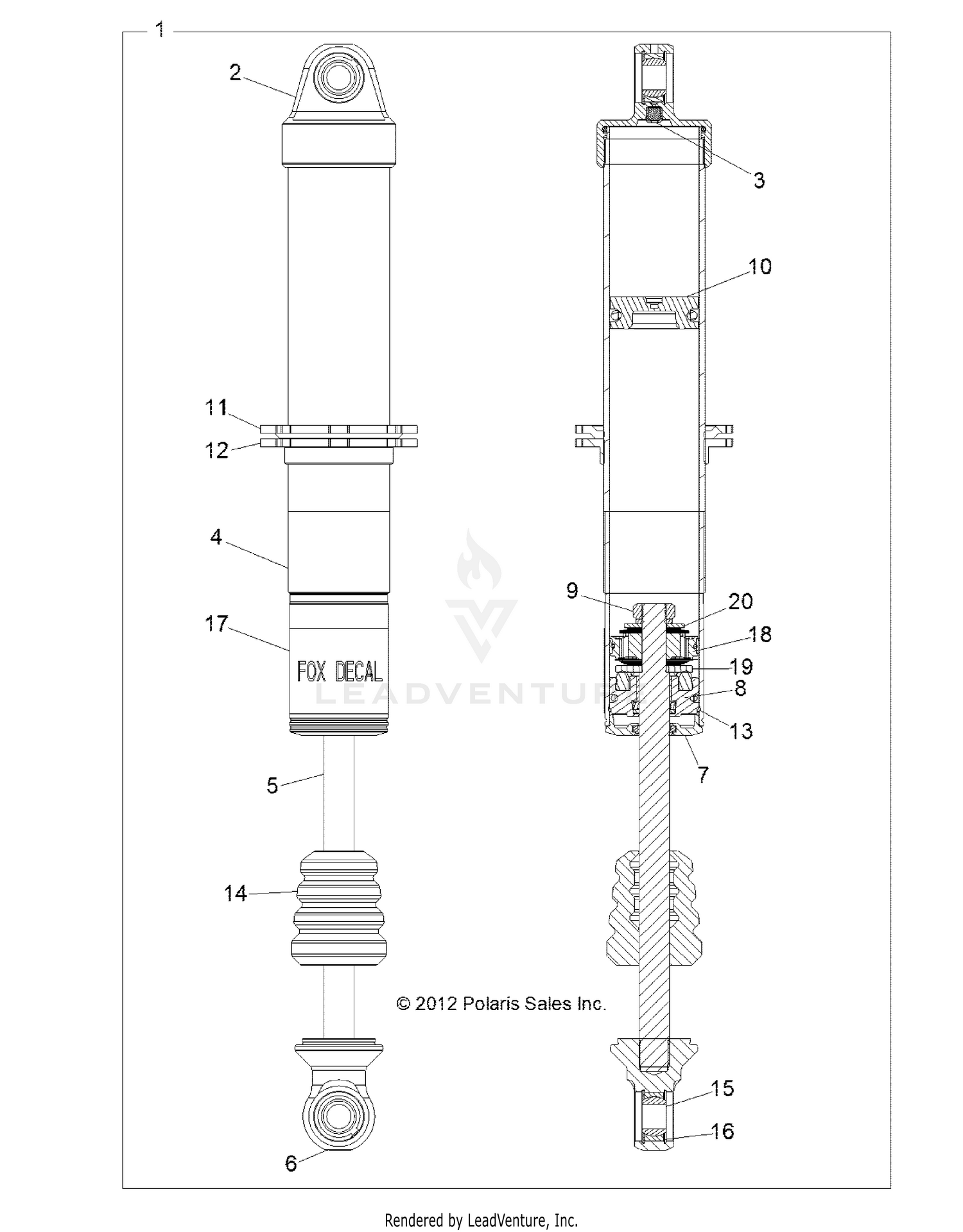

2013 Polaris RZR 4 800 SUSPENSION, REAR SHOCK - R13XE76AD (49RGRSHOCKRR7043907) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 SHOCK, REAR 7043907	$754.99
Available: Ships in 7-12 days. Add to View Price
#1 KIT, SEAL REBUILD 1500917	$84.99
Available: Ships in 7-12 days. Add to View Price
#2 ASM. BODY CAP 1500937
Unavailable
#3 AIR VALVE ASSEMBLY 1500886	$39.99
Available: Ships in 7-12 days. Add to View Price
#4 BODY 1500939
Unavailable
#5 SHAFT 1500876	$139.99
Available: Ships in 7-12 days. Add to View Price
#6 EYELET 1500849	$129.99
Available: Ships in 7-12 days. Add to View Price
#7 BEARING CAP 1500835	$94.99
Available: Ships in 7-12 days. Add to View Price
#8 ASM. BEARING 1500940	$74.99
Available: Ships in 7-12 days. Add to View Price
#9 NUT, LOCK 1500871	$13.29
Available: Ships in 7-12 days. Add to View Price
#10 ASM. PISTON, FLOATING 1500941	$19.99
Available: Ships in 7-12 days. Add to View Price
#11 PRELOAD RING BACK UP 1500872	$39.99
Available: Ships in 7-12 days. Add to View Price
#12 PRELOAD RING 1500873	$44.99
Available: Ships in 7-12 days. Add to View Price
#13 RETAINING RING 1500236	$9.99
Available: Ships in 7-12 days. Add to View Price
#14 BUMPER 1500577	$34.99
Available: Ships in 7-12 days. Add to View Price
#15 BEARING, SPHERICAL 1500524	$54.99
Available: Ships in 7-12 days. Add to View Price
#16 RETAINING RING 1500828	$6.99
Available: Ships in 7-12 days. Add to View Price
#17 DECAL, BODY 1500942
Unavailable
#18 PISTON 1500870	$74.99
Available: Ships in 7-12 days. Add to View Price
#19 PLATE, TOP OUT 1500943	$24.99
Available: Ships in 7-12 days. Add to View Price
#20 PLATE, BACK-UP 1500516	$5.99
Available: Ships in 7-12 days. Add to View Price
