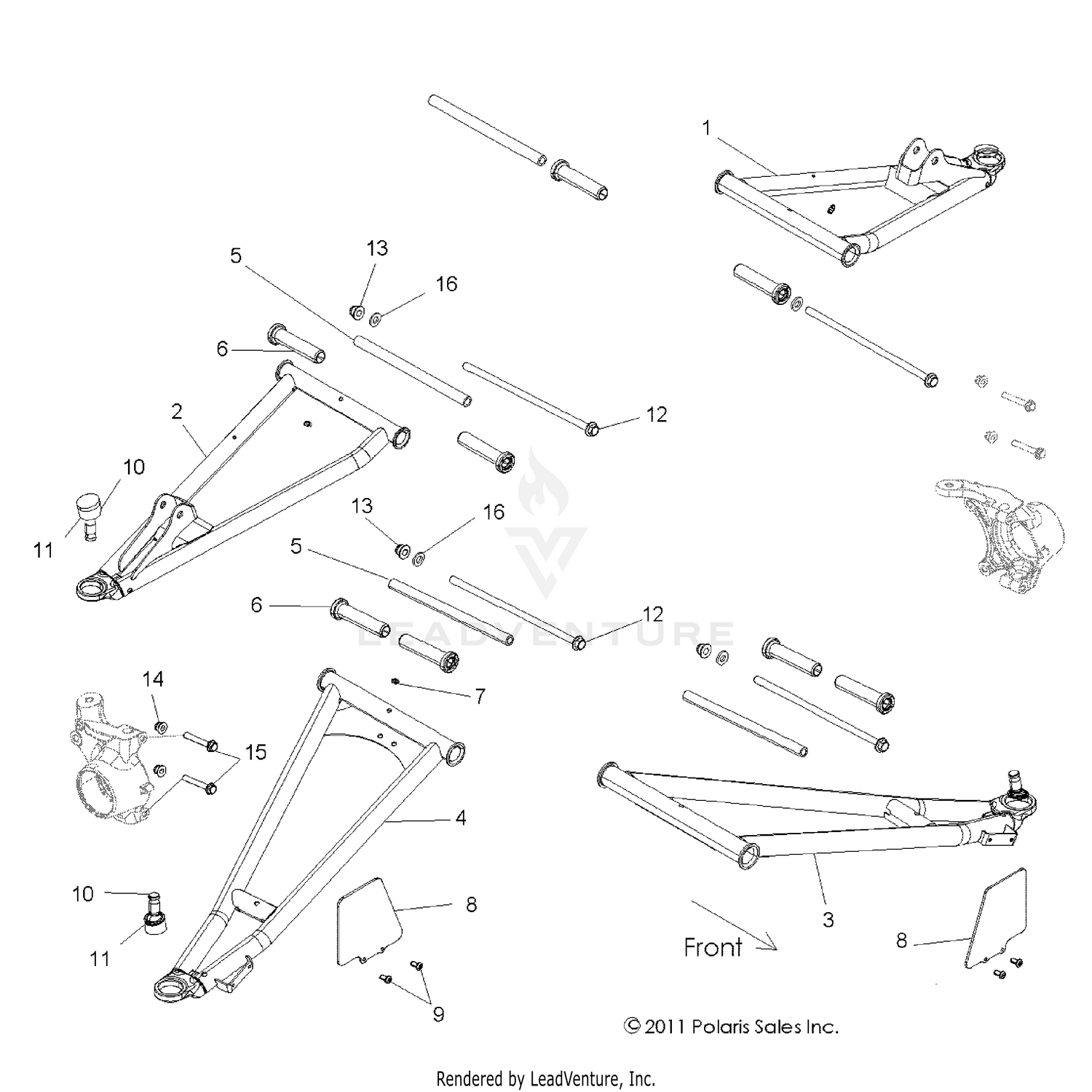

2013 Polaris RZR 4 800 SUSPENSION, FRONT CONTROL ARMS - R13XE76AD/EAI (49RGRSUSPFRT12RZR4) OEM Parts Diagram

< Back to Assembly Types

Item	MSRP	Qty
#1 ARM, CONTROL, UPPER, FRONT, LT, MATTE BLACK, LH 1018209-458	$164.99
Available: Ships in 7-12 days. Add to View Price
#2 ARM, CONTROL, UPPER, FRONT, LT, MATTE BLACK, RH 1018210-458	$164.99
Available: Ships in 7-12 days. Add to View Price
#3 ARM, CONTROL, LOWER, FRONT, LT, MATTE BLACK, LH 1018211-458	$154.99
Available: Ships in 7-12 days. Add to View Price
#4 ARM, CONTROL, LOWER, FRONT, LT, MATTE BLACK, RH 1018212-458	$154.99
Available: Ships in 7-12 days. Add to View Price
#5 TUBE, PIVOT 5137104	$19.59
Available: Ships in 7-12 days. Add to View Price
#6 BUSHING, A-ARM, LONG 5439732	$6.29
Available: Ships in 7-12 days. Add to View Price
#7 FITTING, ZERK 7080510	$9.99
Available: Ships in 7-12 days. Add to View Price
#8 SHIELD, CV, FRONT, BLACK 5438641-070	$2.99
Available: Ships in 7-12 days. Add to View Price
#9 SCREW 7512084	$2.99
Available: Ships in 7-12 days. Add to View Price
#10 BALL, JOINT 7081666 Superseded by 7061220	$79.99
Available: Ships in 7-12 days. Add to View Price
#10 BALL, JOINT 7061187 Superseded by 7061220	$79.99
Unavailable
#11 RING, RETAINING 7710533	$3.99
Available: Ships in 7-12 days. Add to View Price
#12 SCREW, FLANGED 7519087	$24.99
Available: Ships in 7-12 days. Add to View Price
#13 NUT, FLANGED 7547333	$2.99
Available: Ships in 7-12 days. Add to View Price
#14 NUT, NYLOK 7547405	$1.99
Available: Ships in 7-12 days. Add to View Price
#15 SCREW, FLANGE 7516733	$10.99
Available: Ships in 7-12 days. Add to View Price
#16 WASHER 7556153	$3.99
Available: Ships in 7-12 days. Add to View Price
