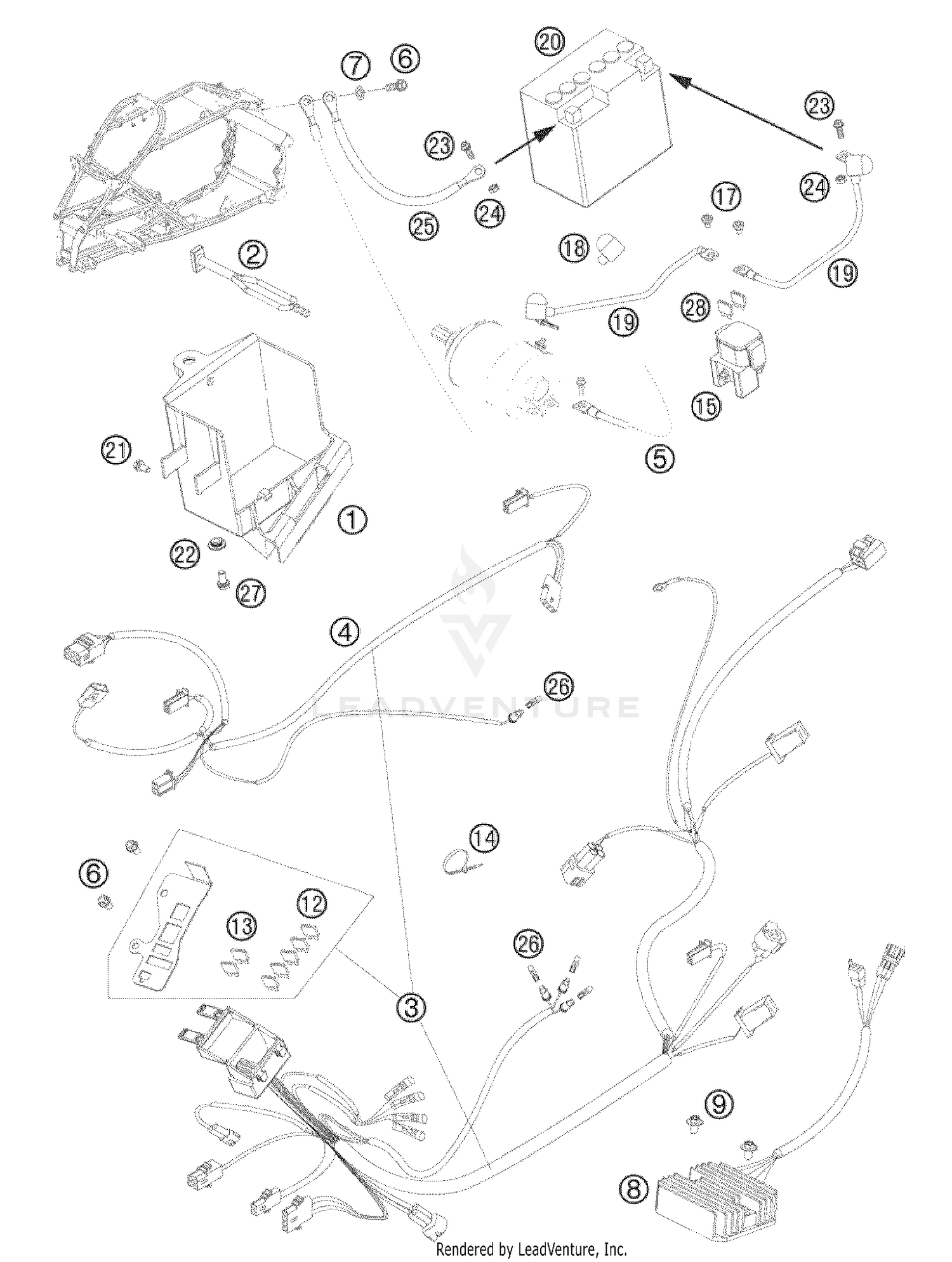

2009 KTM XC ATV 525 Wiring Harness OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Electrical
+
Exhaust
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BATTERY BOX
83011055000
|
$7.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
RUBBER L=145MM
50303018000
|
$5.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
MAIN/LIGHT WIRING HARNESS 08
83011075050
|
$280.01 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
LIGHTING WIRING HARNESS 08
83011079000
|
$30.35 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GROUND CABLE 2
83011097100
|
$11.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HH collar screw M6x16 TX30
0025060166
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
CONTACT WASHER M6 VSV-K6
58411098100
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
VOLTAGE REGULATOR
83011034000
|
$169.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HH collar screw M6x20 TX30
0025060206
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
FUSE 10 A 2000
58011109110
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
FUSE 15 A
58011109115
|
$0.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CABLE TIE 140/2,5MM BLACK
44011076100
Superseded by 44011076140
|
$0.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
CABLE TIE 200/3,6MM BLACK
44011076200
|
$0.42 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
STARTER RELAY 12V '99
58211058000
|
$72.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
AH OVAL SCREW ISO 7380 M 6X8
0902060083
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
PROTECTION CAP F. STARTER ENG.
58440099000
|
$4.03 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
STARTER CABLE
83011059000
|
$15.80 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
BATTERY 12V 4AH YTX5L-BS
58511053000
|
$111.99 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
HH collar screw M5x12 TX30
0025050126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
BUSH 6X11X16X5 MM
50308052000
Superseded by 79608052000
|
$1.31 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
COLLAR SCREW M6X12 TX
0023060123
|
$1.18 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#24
hex nut DIN 934 M6
0934060003
|
$0.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
GROUND CABLE 1
83011097000
|
$9.15 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
BULB 12V 2,3W (W2X4,6D)
49111425000
Superseded by 49111425200
|
$1.71 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
HH collar screw M6x12 TX30
0025060126
|
$2.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#28
FUSE 20 A
58011109120
|
$0.83 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
